Armstrong 4030-1.5X1X8-ARMSP ERP_071978

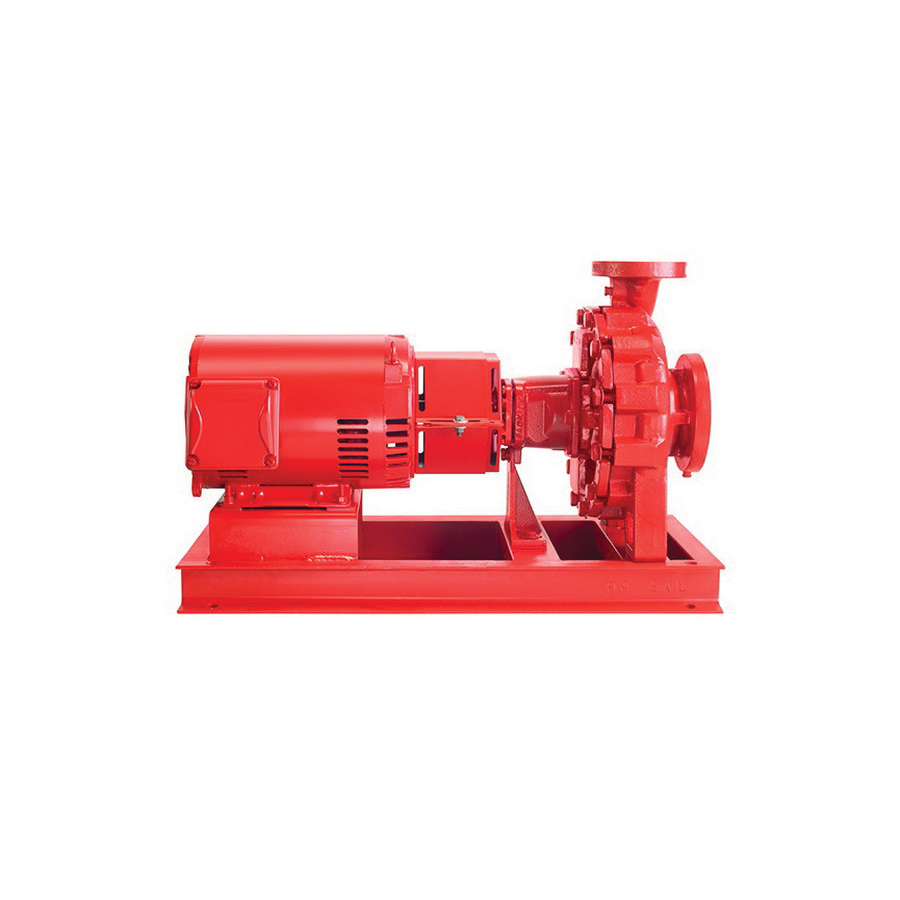

Armstrong 4030 4030-1.5X1X8-ARMSP End Suction Pump, 0.33 - 300 hp, Up to 5000 gal/min
- Manufacturer: Armstrong Fluid Technology
- Brand Name: Armstrong
- Part Number: ERP_071978
- MPN: 4030-1.5X1X8-ARMSP
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
The Armstrong 4030 horizontal end-suction (ES) pumps are engineered to substantially reduce cost over competitor designs across installation, operation and lifetime maintenance. High-efficiency NEMA-premium motors ensure low energy consumption and cost.
Armstrong End Suction Pump, Series: 4030, 50/60 Hz, 0.33 - 300 hp, 0.25 - 200 W, Up to 5000 gal/min, 1/2 in Suction Size, 1 in Discharge, 8 in Impeller, Up to 600 ft Max Head, Base Mounting, 250 deg F
| Discharge Size | : | 1 in |
| Flow Rate | : | Up to 5000 gal/min |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 0.33 - 300 hp |
| Impeller Size | : | 8 in |
| Maximum Head | : | Up to 600 ft |
| Mounting Type | : | Base |
| Power Rating | : | 0.25 - 200 W |
| Suction Size | : | 1/2 in |
| Temperature Rating | : | 250 deg F |
- Configuration - inside single spring mechanical seal
- ANSI/HI 1.3.5 rigid free-standing baseplate eliminates grouting
- Pre-lubricated and sealed deep-groove ball bearings for convenient installation (simply pipe, align, wire and start)
- Armstrong 4030 pumps are equipped with high-efficiency NEMA premium motors for significant reduction in energy consumption and cost
- All motors are suitable for inverter-fed service
- ANSI-style centreline discharge casing eliminates air binding
- Sintered silicon carbide mechanical seal seat for longer life
- Confined casing gasket eliminates blow-outs
- Universal replacement seals, bearings and motors available locally world wide
- Confined non-asbestos fiber gasket
- Cast iron bearing frame
- Permanently lubricated anti-friction bearings
- Carbon steel shaft, stainless steel shaft sleeve
- Fabricated steel baseplate
