Aspen GAW24G-000+FCS08 ERP_069385
  1. pin-int

Aspen GAW24G-000+FCS08 ERP_069385

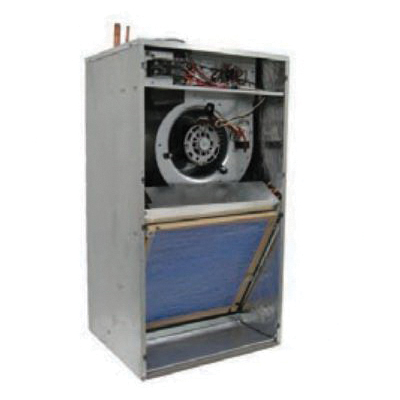

Aspen Airmark™ GAW GAW24G-000+FCS08 Coil Air Handler, 24000 Btu/hr Cooling, 27.3MBH Heating BTU, 240 V, 8 kW, 1/5 hp

  • Manufacturer: Aspen Manufacturing
  • Brand Name: Aspen
  • Part Number: ERP_069385
  • MPN: GAW24G-000+FCS08
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

Aspen Airmark™ Coil Air Handler, Series: GAW, 2 ton Nominal, 24000 Btu/hr Cooling, 27.3MBH Heating BTU, 240 V, 1.8 A Blower, 43.4 A Minimum Circuit, 8 kW, 1/5 hp, 60 Hz, 1 PH -Phase, 834 - 620 cu-ft/min Low, 930 - 680 cu-ft/min High, Configuration: Vertical, 3/8 in Liquid, 3/4 in Suction Connection, R-22, R-410A Refrigerant, 45 A Fuse, 20 x 20 x 1 in Filter, Wall Mounting, Steel, Galvanized, Powder-Coated, 37-1/2 in H x 22 in W x 18-3/4 in D

Amperage Rating      :      1.8 A Blower, 43.4 A Minimum Circuit
BTU Rating      :      24000 Btu/hr Cooling, 27.3MBH Heating
CFM Rating      :      834 - 620 cu-ft/min Low, 930 - 680 cu-ft/min High
Configuration      :      Vertical
Connection Type      :      3/8 in Liquid, 3/4 in Suction
Dimensions      :      37-1/2 in H x 22 in W x 18-3/4 in D
Filter Size      :      20 x 20 x 1 in
Finish      :      Galvanized, Powder-Coated
Frequency Rating      :      60 Hz
Fuse Rating      :      45 A
HP Rating      :      1/5 hp
Material      :      Steel
Mounting Type      :      Wall
Nominal Capacity      :      2 ton
Phase      :      1 PH
Refrigerant Type      :      R-22, R-410A
Voltage Rating      :      240 V
Wattage      :      8 kW
  • PSC high efficiency constant torque motors
  • Heavy gauge galvanized steel construction
  • High efficiency rifled copper tubes/enhanced aluminum fins provide maximum heat transfer
  • Compatible with most brands of air conditioners or heat pumps
  • Easy slide-out blower and coil assembly for installation and service
  • 100% factory leak and performance tested
  • Modular electric heat kits
  • Application versatility - front or bottom return air position, offset hanging brackets attach to unit and wall to allow hanging inside closet, for use with either R-22 or R-410A when proper metering device is used
  • Less than 2% air leakage from cabinet when tested in accordance with ASHRAE standard 193, unit must be installed according to AirMark™ installation
  • Electronic circuit board provides 30 sec ON/OFF blower time delay extracting more heat/cool from the coil, automotive-style pull fuse protection on the circuit board to provide low voltage and transformer protection
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Aspen_GAS24G_000_HTS06_Catalog.pdf
