Bradford White® DS1-40S6FBN ERP_053306
  1. pin-int

Bradford White® DS1-40S6FBN ERP_053306

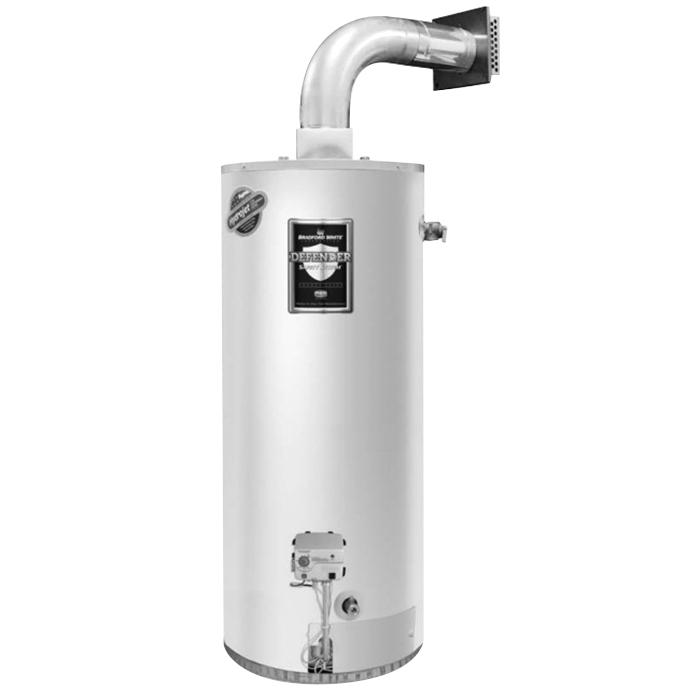

Bradford White® DS1-40S6FBN Gas Water Heater, 40 gal Capacity, 38000 Btu/hr BTU, Natural Gas Fuel, Steel, Enamel

  • Manufacturer: Bradford White Corporation
  • Brand Name: Bradford White®
  • Part Number: ERP_053306
  • MPN: DS1-40S6FBN
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

Bradford White® Gas Water Heater, 40 gal Capacity, 38000 Btu/hr BTU, 73 gal/hr First Hour Delivery, 0.59 Energy Factor, 41 gal/hr at 90 deg F Recovery, 79% Efficiency, 3 - 5 in Dia Vent, Direct Vent, 3/4 in NPT Water, 1/2 in Gas Connection, 150 lb/sq-in Working, 300 lb/sq-in Testing Pressure, Natural Gas Fuel, Piezo Ignition, Steel, Enamel, 63-1/4 in H x 20 in Dia

BTU Rating      :      38000 Btu/hr
Capacity      :      40 gal
Connection Type      :      3/4 in NPT Water, 1/2 in Gas
Dimensions      :      63-1/4 in H x 20 in Dia
Efficiency      :      79%
Energy Factor      :      0.59
Finish      :      Enamel
First Hour Delivery      :      73 gal/hr
Fuel Type      :      Natural Gas
Ignition System      :      Piezo
Material      :      Steel
Pressure Rating      :      150 lb/sq-in Working, 300 lb/sq-in Testing
Recovery Rate      :      41 gal/hr at 90 deg F
Vent Size      :      3 - 5 in Dia
Vent Type      :      Direct
  • Bradford White ICON System - intelligent gas control with proven milli-volt powered technology and built-in piezo igniter
  • Enhanced performance, advanced temperature control system, intelligent diagnostics, pilot on indication, separate immersed thermowell
  • Closed combustion: all air for combustion is taken directly from the outside
  • Reinforced seals: seals surround the closed combustion chamber and the FVIR inner door, preventing the ignition of flammable vapors outside of the water heater
  • Maintenance-free - no regular cleaning of air inlet openings or flame arrestor is required under normal conditions
  • Sight window - offers a view into the combustion chamber to observe the operation of the pilot and burner
  • Factory installed Hydrojet total performance system
  • Vitraglas lining - Bradford White tanks are lined with a exclusively engineered enamel formula that provides superior protection from the highly corrosive effects of hot water
  • Cast aluminum air intake boot - cast molded air intake boot design provides exceptional durability during installation and operation
  • 1 in non-CFC foam insulation - surrounds the tank surface, saving energy by reducing the amount of heat loss
  • Pedestal base
  • Factory installed heat traps
  • Protective magnesium anode rod
  • Telescoping solid vent kits - multiple kits allow up to 8 ft vertical/horizontal vent length (horizontal termination only)
  • Temperature and pressure relief valve
  • Low restrictive brass drain valve
  • Flexible vent kit - maximum vent length (horizontal and vertical) can be flexed to 100 in (horizontal termination only)
  • 6 or 10 years tank and component parts limited warranty
