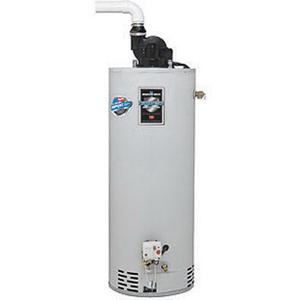

Bradford White® M-1-TW-50S6FBN-478 ERP_074843

Bradford White® Defender Safety System TTW 1 Gas Water Heater, 50 gal Capacity, 40000 Btu/hr BTU, 11.7 kW, 0.64 Energy Factor, 43 gal/hr at 90 deg F Temperature Rise Recovery, 80% Recovery Efficiency, 3.1 A, 110 VAC, 60 Hz, 3/4 in NPT Water, 1/2 in Gas Connection, 150 lb/sq-in Working, 300 lb/sq-in Test Pressure, Natural Gas Fuel, Spark to Pilot Ignition, Yes, 57-3/8 in H x 26-3/4 in D x 22 in Dia

• Intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot
• Proprietary algorithms provide enhanced first hr delivery ratings and tighter temperature differentials
• Micro-processor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels
• An exclusive green LED light prompts the installer during start-up and provides 10-different diagnostic codes to assist in troubleshooting
• High strength advanced polymer composite thermowell provides isolation between electric temperature sensor and surrounding water, no need to drain the tank when removing gas valve
• Designed for installations where atmospheric units cannot be used, exhaust gases are vented under positive pressure directly out of the building through the roof or the wall
• Our significantly quiet design has greater resistance to outside winds and the power to vent in many difficult venting situations
• Horizontal and vertical venting with 2 or 3 in PVC, ABS or CPVC
• Advanced ScreenLok technology flame arrestor is designed to prevent ignition of flammable vapors outside of the water heater
• Electronic sensor prevents burner operation if flammable vapors are detected, the sensor will also prevent operation if there is ongoing flammable vapor burn inside the combustion chamber
• No regular cleaning of air inlet openings or flame arrestor is required under normal conditions
• Sight window offers a view into the combustion chamber to observe the operation of the pilot and burner
• Factory installed Hydrojet total performance system
• Bradford White tanks are lined with an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
• 1 in non-CFC foam insulation covers the sides and top of the tank, reducing the amount of heat loss
• Pedestal base
• Factory installed heat traps design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
• Protective magnesium rod
• Temperature and pressure relief valve included
• Durable tamper-proof design low restriction brass drain valve

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Bradford_White_M_1_TW_40S6FBN_478_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Bradford_White_M_1_TW_40S6FBN_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Bradford_White_M_1_TW_50S6FSX_478_Specification_Sheet.pdf
