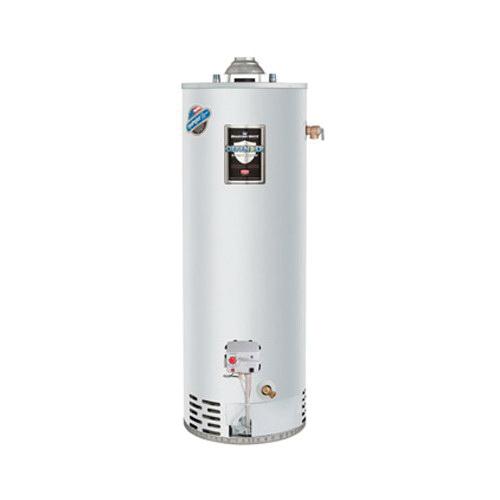

Bradford White® M-I-30S6FBN ERP_031414

Bradford White® Defender Safety System Gas Water Heater, 30 gal Capacity, 30000 Btu/hr BTU, 8.8 kW, 31 gal/hr at 90 deg F Temperature Rise Recovery, 78% Recovery Efficiency, 3 x 4 in Dia Vent, 3/4 in NPT Water, 1/2 in Gas Connection, 150 lb/sq-in Working, 300 lb/sq-in Test Pressure, Natural Gas Fuel, Steel, Yes, 48-3/8 in H x 18 in Dia

• Advanced ScreenLok technology flame arrestor is designed to prevent ignition of flammable vapors outside of the water heater
• Proven and reliable bi-metallic switch prevents burner and pilot operation in case of ongoing flammable vapor burn inside of the combustion chamber or restricted air flow
• Easy and quick lighting of the pilot burner by push button
• Pedestal base - rugged and durable base allows easy transport and positioning, while providing corrosion-resistant contact with floor
• Maintenance-free - no regular cleaning of air inlet openings or flame arrestor is required under normal conditions
• Sight window offers a view into the combustion chamber to observe the operation of the pilot and burner
• Factory installed Hydrojet total performance system
• Bradford White water heater tanks are protected from the corrosive effects of hot water by an exclusive ceramic porcelain-like coating that provides a tough interior surface for our hot water tanks
• Automatic temperature selection at your fingertips, built-in energy cut-off switch prevents abnormally high water temperature for extra safety, built-in gas pressure regulation
• 1 in non-CFC foam insulation covers the sides and top of tank, reducing the amount of heat loss, this results in less energy consumption, improved operation efficiencies and jacket rigidity
• Factory installed heat traps design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
• Protective magnesium anode rods provides added protection against corrosion for long, trouble-free service
• 3 x 4 in "snap lock" draft diverter
• Flue baffle maximizes the amount of heat absorbed by the tank and reduces heat loss during standby periods
• Temperature and pressure relief valve included
• Brass drain valve
• 6 years limited tank and component parts warranty

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Bradford_White_M_I_504S6FBN_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Bradford_White_M_I_30S6FBN_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Bradford_White_M_I_504S6FBN_Specification_Sheet.pdf
