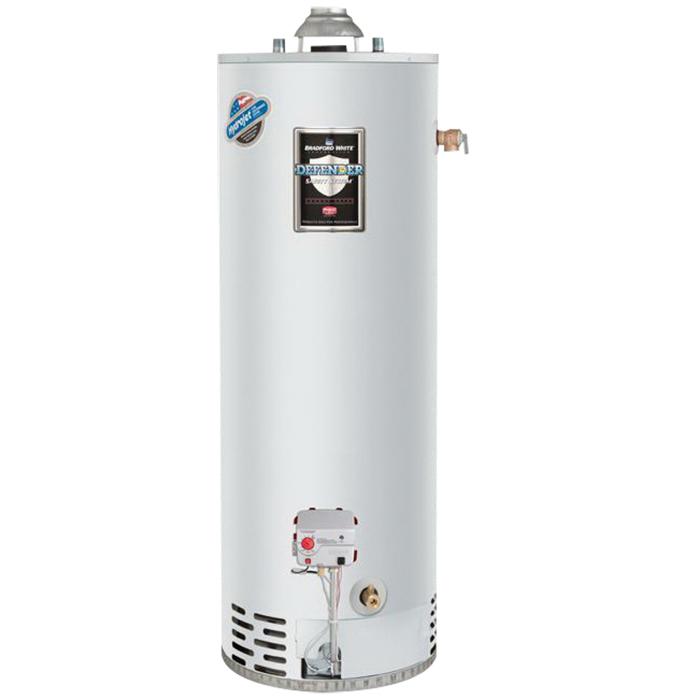

Bradford White® M-I-40T6FBN Gas Water Heater, 40 gal Capacity, 40000 Btu/hr BTU, 11.7 kW, Natural Gas Fuel

  • Manufacturer: Bradford White Corporation
  • Brand Name: Bradford White®
  • Part Number: ERP_050425
  • MPN: M-I-40T6FBN
  • UPC: 671632611393
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

Bradford White® Gas Water Heater, 40 gal Capacity, 40000 Btu/hr BTU, 11.7 kW, 42 gal/hr at 90 deg F Temperature Rise Recovery, 79% Recovery Efficiency, 3 x 4 in Dia Vent, 3/4 in NPT Water, 1/2 in Gas Connection, 150 lb/sq-in Working, 300 lb/sq-in Test Pressure, Natural Gas Fuel, Piezo Ignition, Yes, 59-3/8 in H x 18 in Dia

BTU Rating      :      40000 Btu/hr
Capacity      :      40 gal
Connection Type      :      3/4 in NPT Water, 1/2 in Gas
Dimensions      :      59-3/8 in H x 18 in Dia
Efficiency      :      79% Recovery
Fuel Type      :      Natural Gas
Ignition System      :      Piezo
Lead-Free/Contains Lead      :      Yes
Power Rating      :      11.7 kW
Pressure Rating      :      150 lb/sq-in Working, 300 lb/sq-in Test
Recovery Rate      :      42 gal/hr at 90 deg F Temperature Rise
Vent Size      :      3 x 4 in Dia
  • Intelligent gas control with proven millivolt powered technology and built-in piezo igniter
  • Proprietary algorithms provide enhanced first hr delivery ratings and tighter temperature differentials
  • Micro-processor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels
  • An exclusive green LED light prompts the installer during start-up and provides 10-different diagnostic codes to assist in troubleshooting
  • Flashing green LED provides positive indication that pilot is on
  • High strength advanced polymer composite thermowell provides isolation between electric temperature sensor and surrounding water, no need to drain the tank when removing gas valve
  • Advanced ScreenLok technology flame arrestor is designed to prevent ignition of flammable vapors outside of the water heater
  • Proven and reliable bi-metallic switch prevents burner and pilot operation in case of ongoing flammable vapor burn inside of the combustion chamber or restricted air flow
  • No regular cleaning of air inlet openings or flame arrestor is required under normal conditions
  • Sight window offers a view into the combustion chamber to observe the operation of the pilot and burner
  • Factory installed Hydrojet total performance system
  • Bradford White tanks are lined with an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
  • 1 in non-CFC foam insulation covers the sides and top of tank, reducing the amount of heat loss
  • Pedestal base
  • Protective magnesium anode rods
  • 3 x 4 in "snap lock" draft diverter
  • Temperature and pressure relief valve included
  • Durable tamper-proof design low restriction brass drain valve
  • 6 or 10 years limited tank and component parts warranties
