Bradford White® M-I-5036FBN-423 ERP_082884

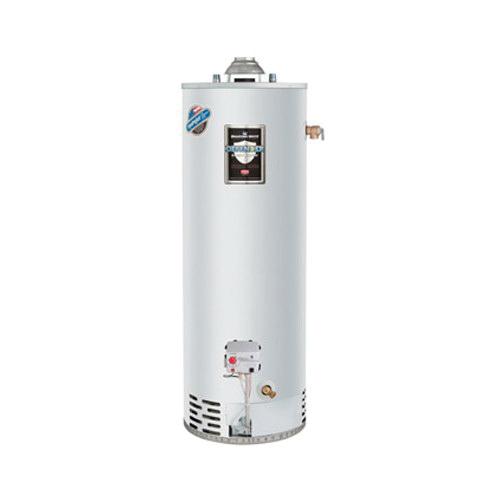

Bradford White® M-I-5036FBN-423 Gas Water Heater, 50 gal Capacity, 40000 Btu/hr BTU, 11.7 kW, Natural Gas Fuel
- Manufacturer: Bradford White Corporation
- Brand Name: Bradford White®
- Part Number: ERP_082884
- MPN: M-I-5036FBN-423
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
Bradford White® Gas Water Heater, 50 gal Capacity, 40000 Btu/hr BTU, 11.7 kW, 42 gal/hr at 90 deg F Temperature Rise Recovery, 79% Recovery Efficiency, 3 x 4 in Dia Vent, 3/4 in NPT Water, 1/2 in Gas Connection, 150 lb/sq-in Working, 300 lb/sq-in Test Pressure, Natural Gas Fuel, Piezo Ignition, Yes, 59-5/8 in H x 20 in Dia
| BTU Rating | : | 40000 Btu/hr |
| Capacity | : | 50 gal |
| Connection Type | : | 3/4 in NPT Water, 1/2 in Gas |
| Dimensions | : | 59-5/8 in H x 20 in Dia |
| Efficiency | : | 79% Recovery |
| Fuel Type | : | Natural Gas |
| Ignition System | : | Piezo |
| Lead-Free/Contains Lead | : | Yes |
| Power Rating | : | 11.7 kW |
| Pressure Rating | : | 150 lb/sq-in Working, 300 lb/sq-in Test |
| Recovery Rate | : | 42 gal/hr at 90 deg F Temperature Rise |
| Vent Size | : | 3 x 4 in Dia |
- Intelligent gas control with proven millivolt powered technology and built-in piezo igniter
- Proprietary algorithms provide enhanced first hr delivery ratings and tighter temperature differentials
- Micro-processor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels
- An exclusive green LED light prompts the installer during start-up and provides 10-different diagnostic codes to assist in troubleshooting
- Flashing green LED provides positive indication that pilot is on
- High strength advanced polymer composite thermowell provides isolation between electric temperature sensor and surrounding water, no need to drain the tank when removing gas valve
- Advanced ScreenLok technology flame arrestor is designed to prevent ignition of flammable vapors outside of the water heater
- Proven and reliable bi-metallic switch prevents burner and pilot operation in case of ongoing flammable vapor burn inside of the combustion chamber or restricted air flow
- No regular cleaning of air inlet openings or flame arrestor is required under normal conditions
- Sight window offers a view into the combustion chamber to observe the operation of the pilot and burner
- Factory installed Hydrojet total performance system
- Bradford White tanks are lined with an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
- 1 in non-CFC foam insulation covers the sides and top of the tank, reducing the amount of heat loss
- Pedestal base
- Protective magnesium anode rods
- 3 x 4 in "snap lock" draft diverter
- Temperature and pressure relief valve included
- Durable tamper-proof design low restriction brass drain valve
- 6 or 10 years limited tank and component parts warranties
