Brizo® SH84103PC PHCP_324547
  1. pin-int

Brizo® SH84103PC PHCP_324547

Brizo® HydraChoice™ Touch-Clean® Spray Head, 1 Number of Spray, 1.5 gpm, Full Body Spray, Wall Mount, Chrome Plated

  • Manufacturer: Delta Faucet Company
  • Brand Name: Brizo®
  • Part Number: PHCP_324547
  • MPN: SH84103PC
  • UPC: 034449735599
  • Min. Order Qty: 10
  • Qty. Interval: 1
    • Sign In for Availability

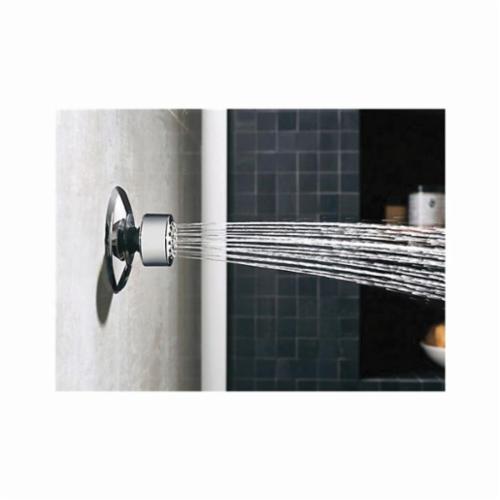

The HydraChoice™ Max Body Spray System offers the clean lines of a flush mount body spray with maximum flexibility and functionality. The spray heads extend automatically when water is turned on and can be adjusted 50 degrees in any direction, allowing you to aim the water exactly where it's wanted.

Brizo® HydraChoice™ Spray Head, Series: Touch-Clean®, 1-3/4 in Dia, 1 Spray Type, 1.5 gpm Maximum, Spray Pattern: Full Body, Wall Mount, Chrome Plated

Diameter      :      1-3/4 in
Finish/Color      :      Chrome Plated
Maximum Flow Rate      :      1.5 gpm
Mounting Type      :      Wall
Number of Spray Type      :      1
Series      :      Touch-Clean®
Spray Pattern      :      Full Body
Warranty      :      Lifetime Limited On Parts (Other Than Electronic Parts and Batteries) and Finishes; Or, For Commercial Users, For 5 Years From The Date Of Purchase. 5 Year Limited On Electronic Parts (Other Than Batteries); Or, For Commercial Users, For 1 Year From The Date Of Purchase. No Is Provided On Batteries.
  • Touch-Clean® nozzles swipe away mineral deposits
  • Automatically extend 1-11/32 in when water is turned on
  • Interchangeable by user offering choice and differentiation in feel
  • Adjust up to 50 deg in any direction when extended
  • 1-3/4 in diameter
  • 1.5 gpm at 80 psi, 5.7 L/min at 550 kPa
  • Optional RP82501 reduces flow rate to 1 gpm at 80 psi, 3.8 L/min at 550 kPa
  • Spray head automatically extends 1-11/32 in out of the wall when water is turned on
  • Spray heads are interchangeable by user
  • Spray heads adjust up to 50 deg in any direction once extended
  • HydraChoice™ soothing, massaging, and invigorating spray heads feature H2Okinetic® technology
  • HydraChoice™ full spray head features Touch-Clean® spray holes

Standards/Approvals: ASME A112.18.1, CSA B125.1
