Broan QT series ventilation products offer the rare combination of power and extremely quiet operation. Offered with a variety of additional functions such as lights, nightlights and heaters.

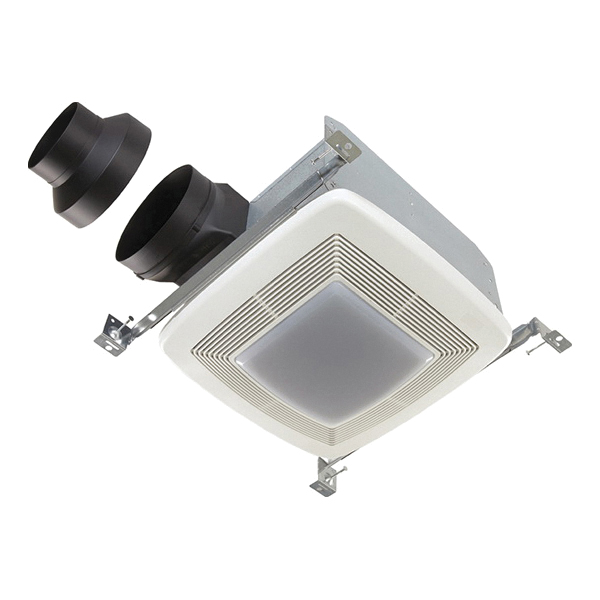

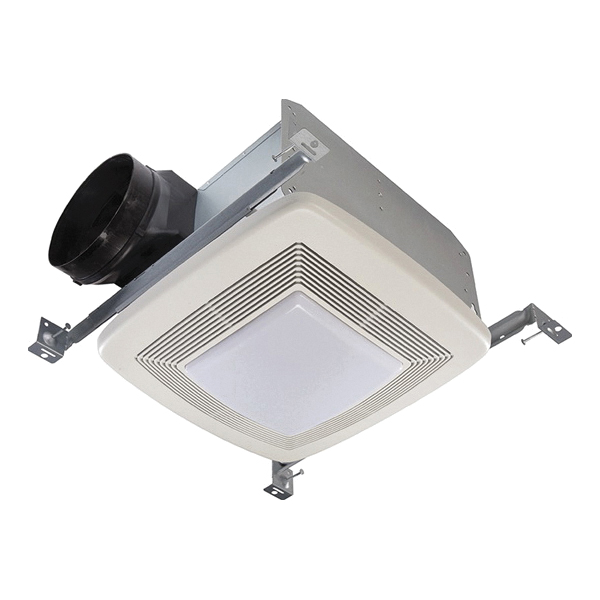

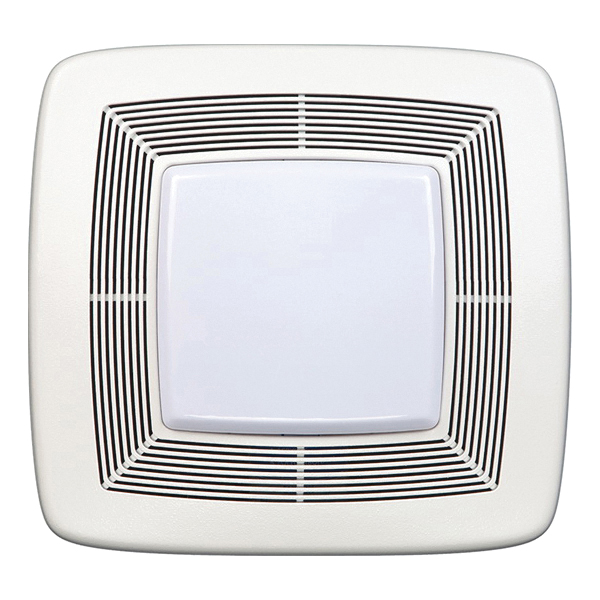

BROAN® Bath Fan/Light, Series: QTXE, 120 VAC, 0.8 A, 60 Hz, 23.3 W, Steel Housing, Polymeric Grille, Galvanized, White, Ceiling Mounting, 10-1/2 in L, 11-3/8 in W, 7-5/8 in H, 13 in L x 13-3/4 in W Grille, 80 cu-ft/min, 6 in Duct
| Amperage Rating | : | 0.8 A |
| CFM Rating | : | 80 cu-ft/min |
| Color | : | White |
| Duct Size | : | 6 in |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Grille Size | : | 13 in L x 13-3/4 in W |
| Height | : | 7-5/8 in |
| Length | : | 10-1/2 in |
| Material | : | Steel Housing, Polymeric Grille |
| Mounting Type | : | Ceiling |
| Power Rating | : | 23.3 W |
| Voltage Rating | : | 120 VAC |
| Width | : | 11-3/8 in |
- New, attractive low-profile grille styling, 36 W GU24 fluorescent light - (2 to 18 W bulb included) and 4 W nightlight (bulb not included)
- 6 in ducting for superior performance
- 4 W night light(bulb sold separately)
- Motor engineered for continuous operation
- UL listed for use over tub/shower with GFCI circuit
- Hanger bars for easy, fast and universal installation in all types of construction
- 56 cu-ft/min at 1/4 in static pressure
- Horizontal duct direction
- 2 x 8 in minimum construction space required
- Nearly silent operation 0.3 sones
- 23.3 W fixture wattage
- (2) GU24 base fluorescent lamp
