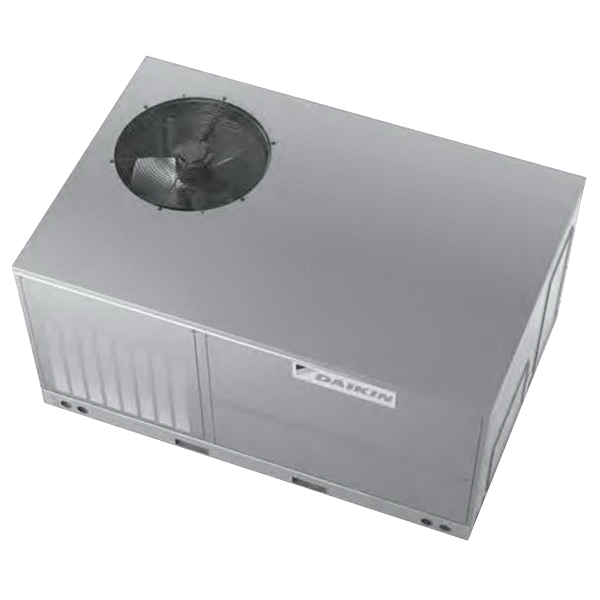

DAIKIN Split System Air Conditioner, Series: DX13SA, 3 ton Nominal, 36000 Btu/hr BTU, 208 - 230 VAC, 14.1 A, 1/6 hp, 60 Hz, 3 -Phase, Scroll Compressor, 1050 - 1350 cu-ft/min, 13 SEER, R-410A Refrigerant, 74 dBA, 20 A Fuse, Heavy Gauge Steel, Galvanized, Powder-Painted, Nickel Gray, 29 in W x 28-3/4 in H x 29 in D
| Amperage Rating | : | 14.1 A |
| BTU Rating | : | 36000 Btu/hr |
| CFM Rating | : | 1050 - 1350 cu-ft/min |
| Color | : | Nickel Gray |
| Compressor Type | : | Scroll |
| Dimensions | : | 29 in W x 28-3/4 in H x 29 in D |
| Finish | : | Galvanized, Powder-Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 20 A |
| HP Rating | : | 1/6 hp |
| Material | : | Heavy Gauge Steel |
| Nominal Capacity | : | 3 ton |
| Phase | : | 3 |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 13 |
| Sound Level | : | 74 dBA |
| Voltage Rating | : | 208 - 230 VAC |
- One stage energy efficient scroll compressor
- Base (A)
- Factory installed filter drier
- Copper tube/aluminum fin coils
- Service valves with sweat connections and easy access to gauge ports
- Contactor with lug connection
- Ground lug connection
- Units meet the performance outlined in table 6.8.1B of ASHRAE standard 90.1-2010
- Innovative louvered sound control top design
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field installed accessories
- When properly anchored, meets the 2010 Florida building code unit integrity requirements for hurricane type winds
- 10.4 A-rated load, 73 A locked rotor compressor, 1.1 A full load condenser fan motor
- 1/2 or 3/4 in electrical conduit
Specification Sheet
