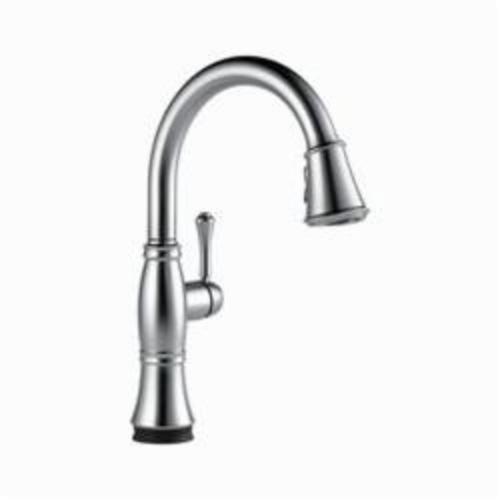

DELTA® 9197T-AR-DST Kitchen Faucet, Cassidy™, 1.8 gpm, 8 in Center, Arctic Stainless, 1 Handles, (6) AA Battery

  • Manufacturer: Delta Faucet Company
  • Brand Name: delta®
  • Part Number: PHCP_542024
  • MPN: 9197T-AR-DST
  • UPC: 034449692724
  • Min. Order Qty: 10
  • Qty. Interval: 1
    • Sign In for Availability

Classical design combines with modern technology in the Cassidy Kitchen Collection, featuring MagnaTite® Docking, Diamond™ Seal® and Touch2O® Technology.

DELTA® Kitchen Faucet, Collection: Cassidy™, 1.8 gpm, 8 in Center Distance, Pull-Down Diverter Spout, 9-3/8 in Spout Reach, 16 in Spout Height, 62 in L Hose, (6) AA Battery, 3/8 in Connection, Compression Connection, Lever Handle, 1 Handles, 1 or 3 Faucet Holes, Spray Pattern: Aerator Stream/Full Body, 2 Spray Functions, 2-1/2 in Maximum Deck Thickness, Deck Mount, Electronic Valve/Cartridge, Zinc, Arctic Stainless, Domestic, Commercial

Center Distance      :      8 in
Collection      :      Cassidy™
Commercial/Residential      :      Commercial
Connection Size      :      3/8 in
Connection Type      :      Compression
Domestic/Import      :      Domestic
Finish/Color      :      Arctic Stainless
Flow Rate      :      1.8 gpm
Handle Style      :      Lever
Hose Size      :      62 in L
Material      :      Zinc
Maximum Deck Thickness      :      2-1/2 in
Mounting Type      :      Deck
Number of Faucet Holes      :      1 or 3
Number of Handles      :      1
Number of Spray Functions      :      2
Power Source      :      (6) AA Battery
Spout Height      :      16 in
Spout Reach      :      9-3/8 in
Spout Type      :      Pull-Down Diverter
Spray Pattern      :      Aerator Stream/Full Body
Valve/Cartridge Type      :      Electronic
Warranty      :      Lifetime Limited
  • Touch activated faucet featuring touch
  • Turns on and off with just a touch anywhere on the spout or handle
  • On-off indicator light signals when batteries run low
  • Automatic water flow shut-off after four minutes if the water is left running
  • TempSense LED light indicates water temperature
  • Battery operated (6 AA included) for up to 2 year battery life or 6 C (not included) for up to 5 year battery life
  • Battery box can be mounted to cabinet with included mounting hardware
  • MagnaTite® docking keeps the kitchen pull-down spray wand firmly in place with a powerful integrated magnet, so it stays docked when not in use
  • Features Diamond™ Seal® technology euro-motion valve embedded with diamonds to ensure like new operation for the life of the faucet
  • Touch-Clean® spray holes allow for easy removal of hard water buildup
  • For 3-hole installation, order escutcheon RP71545RB
  • High-arc pull-down swivels 360 deg for complete sink access
  • 62 in long hose provides outstanding reach
  • 3/8 in OD straight, staggered PEX supply lines
  • Red/blue indicator markings
  • Dual integral check valves in sprayer
  • 1.8 gpm at 60 psi

Standards/Approvals: ADA Compliant, ASME A112.18.1, ASME A112.18.6, CSA B125.1, ICC/ANSI A117.1, No-Lead Compliant, Water-Efficient

  • pdfData/Spec Sheet-1 https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Delta_Faucet_Co_9197T-AR-DST_Data_Sheet.pdf
  • pdfParts List https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Delta_Faucet_Co_9197T-AR-DST_Part_List.pdf
