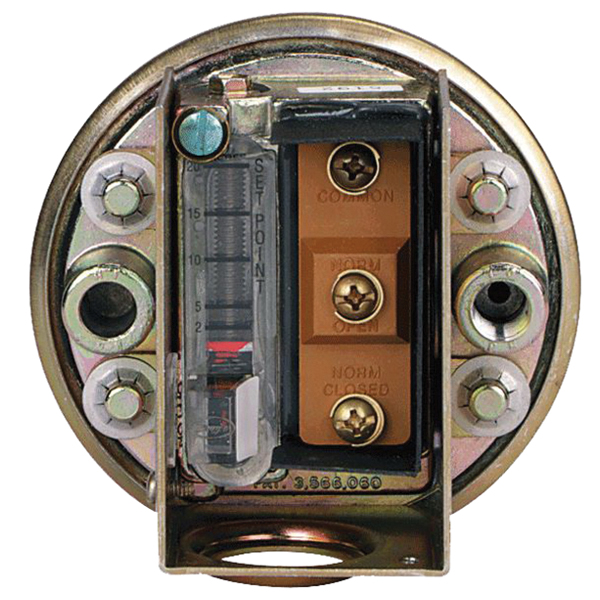

Dwyer® Gas Pressure Switch, Series: 1996, 15 A, 120 - 480 VAC, 60 Hz, (3) Screw Common Electrical, 1/8 in FNPT or 1/4 in MNPT Process, 1/8 in FNPT Vent Connection, SPDT, 4 - 20 in WC, 10 lbf/sq-in Surge Pressure, 1/8 hp at 125 VAC, 1/4 hp at 250 VAC Resistive, Diaphragm/Horizontal Mounting, 32 - 110 deg F, -30 to 110 deg F for Dry Gas or Dry Air, 3-1/8 in H x 3-1/2 in Dia
| Amperage Rating | : | 15 A |
| Connection Type | : | (3) Screw Common Electrical, 1/8 in FNPT or 1/4 in MNPT Process, 1/8 in FNPT Vent |
| Contact Configuration | : | SPDT |
| Dimensions | : | 3-1/8 in H x 3-1/2 in Dia |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/8 hp at 125 VAC, 1/4 hp at 250 VAC Resistive |
| Mounting Type | : | Diaphragm/Horizontal |
| Pressure Rating | : | 4 - 20 in WC, 10 lbf/sq-in Surge |
| Temperature Rating | : | 32 - 110 deg F, -30 to 110 deg F for Dry Gas or Dry Air |
| Voltage Rating | : | 120 - 480 VAC |
- Reliable and convenient, serve as a compact, low cost switch for gas fired furnaces and equipment
- Visible setpoint and on-off indicators add convenience in servicing
- Pressure ranges are ideal for high or low gas pressure interlock
- Top connection vents diaphragm chamber to outside or to furnace combustion chamber
- Mount switch with diaphragm in a horizontal position and gas pressure connection at bottom
- Screw type with visible indicator, inside conduit enclosure setpoint adjustment
