DynaQuip® VMA1-A9 ERP_033788

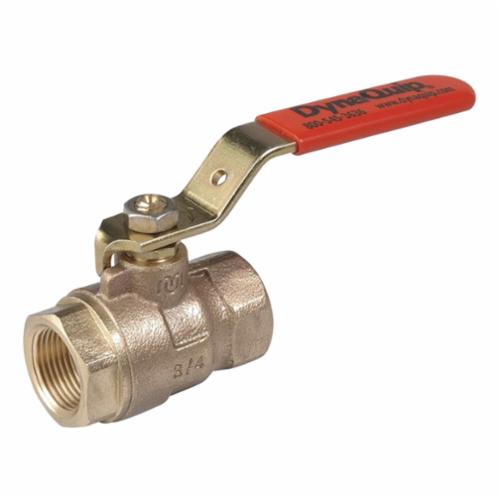

DynaQuip® VMA1-A9 Ball Valve, 3/4 in Nominal, FNPT Connection, 2-Port -Port/Way, Lever Operator, Bronze Body

  • Manufacturer: DynaQuip Controls
  • Brand Name: DynaQuip®
  • Part Number: ERP_033788
  • MPN: VMA1-A9
  • UPC: 649848017728
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

VMA series ball valves offer maximum strength, durability, and maintenance-free operation all in one package! Industrial two-piece bronze valves are precision machined and designed to outlast lightweight competitors.

DynaQuip® Ball Valve, FNPT Connection, 3/4 in Nominal, 150 lb/sq-in Working Steam, 600 lb/sq-in CWP Pressure, 2-Port -Port/Way, Lever Operator, 25 Flow Coefficient, Bronze Body, RTFE Seat, Brass Stem, PTFE Seal, Brass Trim, Steel Handle, -20 to 450 deg F, 2.53 in L x 2.89 in H

Body Material      :      Bronze
Connection Type      :      FNPT
Dimensions      :      2.53 in L x 2.89 in H
Flow Coefficient (Cv)      :      25
Handle Material      :      Steel
Nominal Size      :      3/4 in
Number of Ports/Ways      :      2-Port
Operator Type      :      Lever
Pressure Rating      :      150 lb/sq-in Working Steam, 600 lb/sq-in CWP
Seal Material      :      PTFE
Seat Material      :      RTFE
Stem Material      :      Brass
Temperature Rating      :      -20 to 450 deg F
Trim Material      :      Brass
  • Corrosion-resistant bronze body construction
  • Reinforced PTFE seats and seals
  • Blowout-proof stem design with adjustable packing
  • Unique adjustable stem packing
  • Straight through ball pattern
  • Chrome-plated brass ball
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/DynaQuip_VMA1_A9_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/DynaQuip_VMA1_A9_Full_Engineering_Drawing.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/DynaQuip_VMA1_A9_Specification_Sheet.pdf
