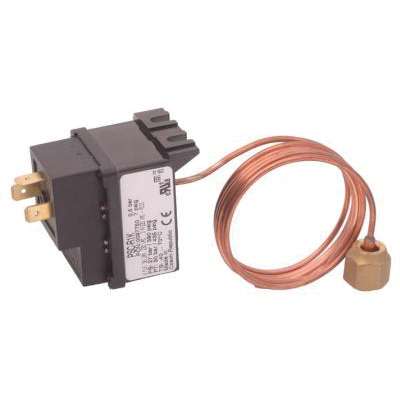

Emerson Flow Controls 97854 PSC Mini High Pressure Control, 6 A Full Load, 36 A Locked Rotor, 0.5 A Back Contact, SPDT

  • Manufacturer: Emerson Electric Co
  • Brand Name: Emerson Flow Controls
  • Part Number: ERP_032581
  • MPN: 97854
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

The PSC mini pressure control provides the ultimate in reliability and flexibility in a commercial grade mini pressure control. A standard plug connectable design simplifies installation and service. The SPDT switch allows the addition of alarm circuits on high or low pressure applications. Models with high temperature bellows and built-in pressure pulsation snubbers make the PSC ideally suited for compressor head mounting high pressure limit control applications - automatic or manual reset versions are available. Pressure ranges/differential also make the PSC controls ideally suited for condenser fan cycling applications. Low pressure versions with standard or narrow differential switches make these controls ideally suited low pressure limit or back-up safety controls on electronically controlled systems. Numerous options, such as panel mount or capillary connections are available on high volume applications. Standard on all models are worldwide agency approvals.

Emerson Flow Controls PSC Mini High Pressure Control, PSCA5S Model, 6 A Full Load, 36 A Locked Rotor, 0.5 A Back Contact, 120/240 VAC, 7/16-20 UNF Female, Schrader Depressor Connection, SPDT, 100 - 465 lbf/sq-in Pressure, Free-Standing Mounting, Pilot Duty: 240 V-A at 120 VAC, 480 V-A at 240 VAC, -20 to 140 deg F Operating, -30 to 160 deg F Storage

Amperage Rating      :      6 A Full Load, 36 A Locked Rotor, 0.5 A Back Contact
Connection Type      :      7/16-20 UNF Female, Schrader Depressor
Contact Configuration      :      SPDT
Model      :      PSCA5S
Mounting Type      :      Free-Standing
Pilot Duty Rating      :      240 V-A at 120 VAC, 480 V-A at 240 VAC
Pressure Rating      :      100 - 465 lbf/sq-in
Temperature Rating      :      -20 to 140 deg F Operating, -30 to 160 deg F Storage
Voltage Rating      :      120/240 VAC
  • Plug connectable with hub for 1/2 in flexible conduit
  • Factory preset to customer's desired pressure specifications
  • Precise, repeatable settings
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Emerson_Flow_Controls_97854_Specification_Sheet.pdf
