Whether operating as a shallow well or deep well pump, count on F&W®'s versatile, powerful jet pumps to deliver more water at full city pressures. These pumps provide higher single-stage capacities and pressures, depths to 150 ft, capacities to 1800 gph and as much as 90 lb pressure. The CPJ models feature the famous Flint and Walling "Service Plus" motor, available with NEMA J construction. The F&W® 56 frame, double ball bearing motor offers the ultimate in performance and dependability. Designed for years of trouble-free operation and simple, swift, on-site servicing, the CPJ features unique interchangeability of replacement parts to keep inventories at a minimum.

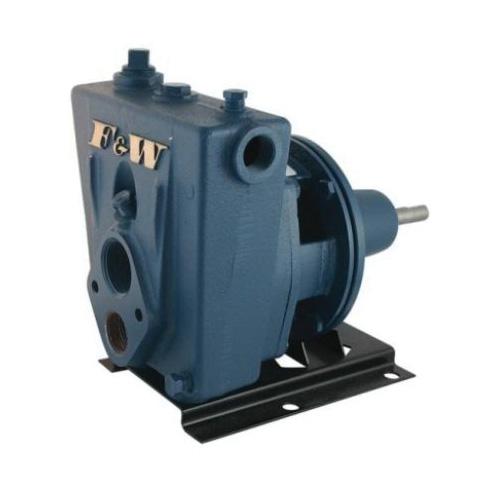

F&W® CPJ Convertible Jet Pump, 1-1/4 in Suction, 3/4 in Discharge, 1800 gph Flow Rate, 6.5 to 13 A, 115/230 VAC, HP Rating: 1/2 hp, 1 ph Phase, 60 Hz Frequency, 3450 rpm Speed, 25 ft Maximum Feet of Head, 30 to 50 psi Working, Thermoplastic Impeller, Iron Body, Gray
| Amperage Rating | : | 6.5 to 13 A |
| Body Material | : | Iron |
| Color | : | Gray |
| Discharge Size | : | 3/4 in |
| Flow Rate | : | 1800 gph |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Impeller Material | : | Thermoplastic |
| Maximum Feet of Head | : | 25 ft |
| Phase | : | 1 ph |
| Speed Rating | : | 3450 rpm |
| Suction Size | : | 1-1/4 in |
| Voltage Rating | : | 115/230 VAC |
| Working Pressure | : | 30 to 50 psi |
Instruction/Installation Sheet
