Field Controls 60510006200 ERP_021057

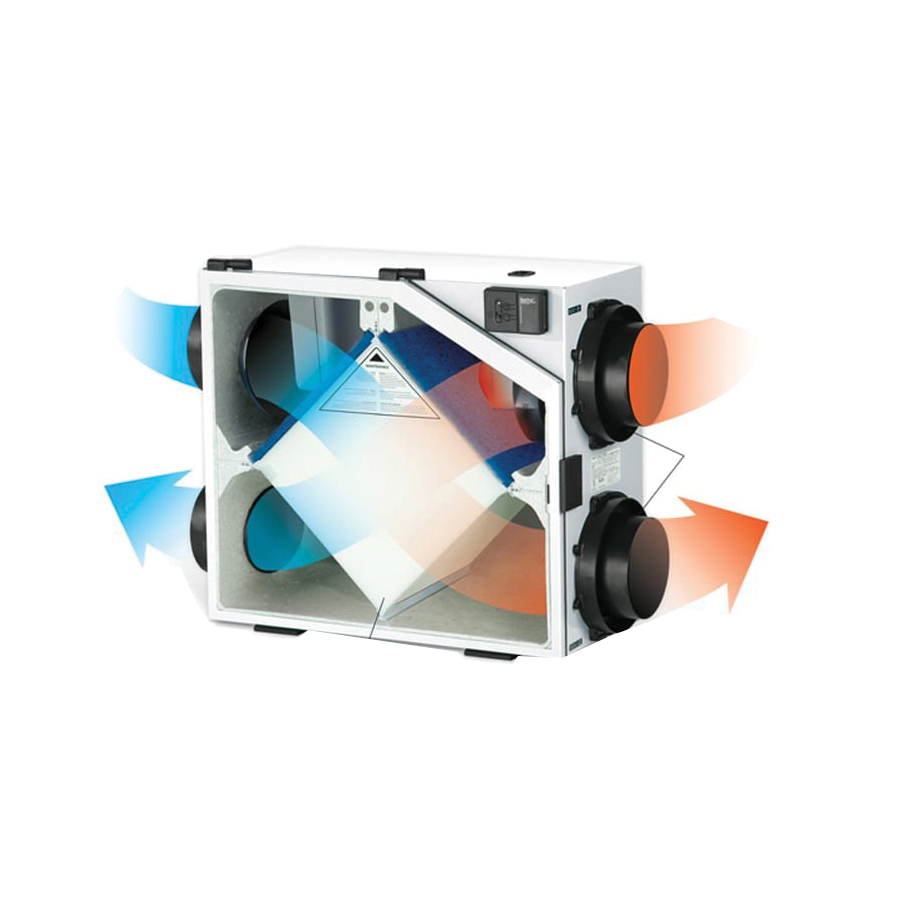

Field Controls Healthy Home System™ 60510006200 Heat Recovery Ventilator, 70 to 220 cfm Air Flow, 120 VAC, 1.5 A
- Manufacturer: Field Controls, LLC
- Brand Name: Field Controls
- Part Number: ERP_021057
- MPN: 60510006200
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
Field Controls HRVs and ERVs are balanced ventilation systems and have the lowest operating cost of ventilation options. The purpose of an HRV or an ERV is to deliver fresh air into your home. Our systems are designed for optimal ventilation and quiet, dependable operation. Homes today are tightly built, with greater R value insulation and more efficiently designed windows. Without introducing fresh air, the indoor air of these well-insulated structures will become stale and contaminated with germs, odors and volatile organic compounds (VOCs). Gain peace of mind with Field Controls HRV/ERV balanced ventilation systems. Our system models can be automatically controlled for your convenience and save you from wasting energy dollars opening doors and windows during the summer and winter months.
Field Controls Healthy Home System™ Heat Recovery Ventilator, Model: FC200HRV, Air Flow Capacity: 70 to 220 cfm, 1.5 A, 120 VAC, 60 Hz Frequency, 1 Phase, 142 W Power, HP Rating: 3/32 hp, 0.1 to 0.7 in-WG Pressure, Effectiveness: 71 %, 12 x 12 x 15 in Core, 11-11/16 x 14-3/4 x 5/8 in Filter, Strap Mounting, 20 ga Gauge, Steel, Galvanized, 16-1/2 in Length, 22-1/2 in Width, 29-1/2 in Height
| Air Flow Capacity | : | 70 to 220 cfm |
| Amperage Rating | : | 1.5 A |
| Core Size | : | 12 x 12 x 15 in |
| Effectiveness | : | 71 % |
| Filter Size | : | 11-11/16 x 14-3/4 x 5/8 in |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Gauge | : | 20 ga |
| HP Rating | : | 3/32 hp |
| Height | : | 29-1/2 in |
| Length | : | 16-1/2 in |
| Material | : | Steel |
| Model | : | FC200HRV |
| Mounting Type | : | Strap |
| Phase | : | 1 |
| Power Rating | : | 142 W |
| Pressure Rating | : | 0.1 to 0.7 in-WG |
| Voltage Rating | : | 120 VAC |
| Width | : | 22-1/2 in |
- Automatically replaces stale air with fresh air
- Low maintenance
- Reduces energy consumption
- 3 operating modes - intermittent, continuous and high
- 100% variable speed
- ISFTM 5 in (127 mm) oval collar system
- Proportional defrost sequence
- Single person mounting system via wall bracket
- Permanent lubrification of PSC motors
- All Field Controls products are designed with high-performance, reliable motors for your comfort and peace of mind
- Factory sealed and dynamically balanced, our motors are maintenance-free for years to come
- The entire line of Field Controls HRV or ERV products is designed for installation by a single person
- Single person mounting will enable you to save time and effort by offering you a variable attachment system
- Polypropylene HRV core designed to maximize airflow and performance
- The core is constructed from a composite of polypropylene materials that allows latent heat transfer from one airstream to another while preventing cross-contamination
