FNW® FNWX415F ERP_062175

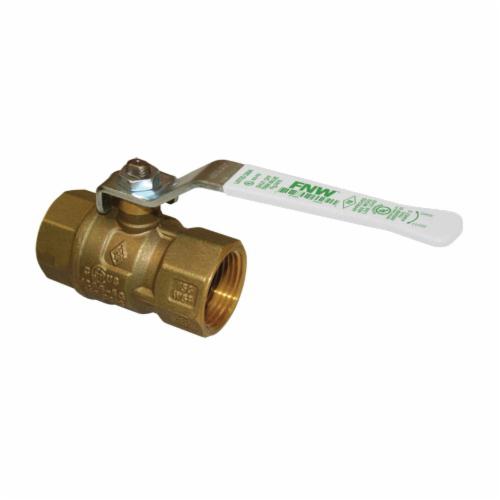

FNW® FNWX415F Ball Valve, 3/4 in Nominal, FIP Connection, 600 lb/sq-in WOG, 150 lb/sq-in WSP Pressure, Handle Operator
- Manufacturer: Ferguson Enterprises, LLC
- Brand Name: FNW®
- Part Number: ERP_062175
- MPN: FNWX415F
- UPC: 781889244272
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
FNW® Ball Valve, FIP Connection, 3/4 in Nominal, 600 lb/sq-in WOG, 150 lb/sq-in WSP Pressure, Handle Operator, Forged Brass Body, PTFE Seat, Brass Stem, NBR and FKM Seal, Brass Ball Trim, DD 11 Steel Handle, 2-23/50 in L
| Body Material | : | Forged Brass |
| Connection Type | : | FIP |
| Dimensions | : | 2-23/50 in L |
| Handle Material | : | DD 11 Steel |
| Nominal Size | : | 3/4 in |
| Operator Type | : | Handle |
| Pressure Rating | : | 600 lb/sq-in WOG, 150 lb/sq-in WSP |
| Seal Material | : | NBR and FKM |
| Seat Material | : | PTFE |
| Stem Material | : | Brass |
| Trim Material | : | Brass Ball |
- Dual O-ring non-adjustable packing
- Not for use at or below ground level
- 100% electronically tested in open and closed position at 80 lb/sq-in
- Blow-out proof stem
- Forged brass body and end cap
- Solid TEA-plated brass CW510L ball
- CW 510L brass end cap
- Vinyl handle sleeve
- PTFE thrust washer
- Steel CL 04 handle nut
