Franklin Electric 506807 ERP_002785
  1. pin-int

Franklin Electric 506807 ERP_002785

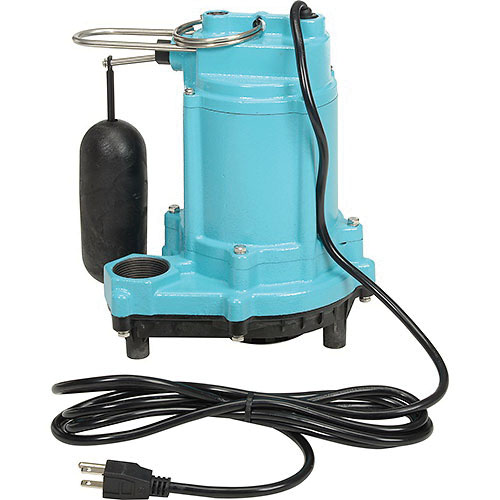

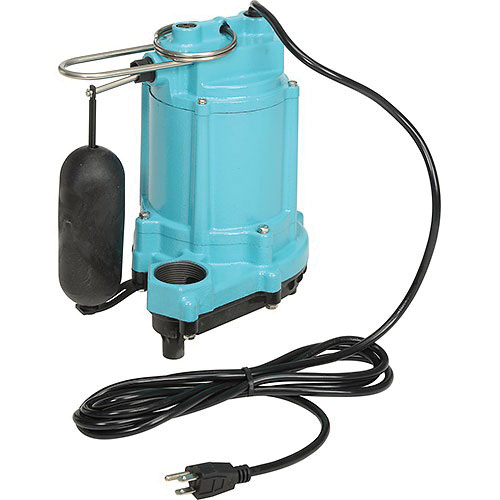

Franklin Electric 506807 Sump Pump, 115 V, 6 A, 1/3 hp, 50 gal/min at 5 ft, 42 gal/min at 10 ft, 30 gal/min at 154 ft

  • Manufacturer: Franklin Electric
  • Brand Name: Franklin Electric
  • Part Number: ERP_002785
  • MPN: 506807
  • UPC: 010121149076
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

Franklin Electric Sump Pump, 6EN-CIA-SFS Model, 115 V, 6 A, 60 Hz, 1/3 hp, 50 gal/min at 5 ft, 42 gal/min at 10 ft, 30 gal/min at 154 ft, 1-1/2 in FNPT Discharge, 10 ft L Cord, 22 ft Max Feet of Head, 9.5 lbf/sq-in Pressure, Nylon Impeller, Cast Iron, 10-5/8 in L x 8-3/8 in W x 10-3/16 in H

Amperage Rating      :      6 A
Cord Length      :      10 ft
Dimensions      :      10-5/8 in L x 8-3/8 in W x 10-3/16 in H
Discharge Size      :      1-1/2 in FNPT
Flow Rate      :      50 gal/min at 5 ft, 42 gal/min at 10 ft, 30 gal/min at 154 ft
Frequency Rating      :      60 Hz
HP Rating      :      1/3 hp
Impeller Material      :      Nylon
Material      :      Cast Iron
Maximum Feet of Head      :      22 ft
Model      :      6EN-CIA-SFS
Pressure Rating      :      9.5 lbf/sq-in
Voltage Rating      :      115 V

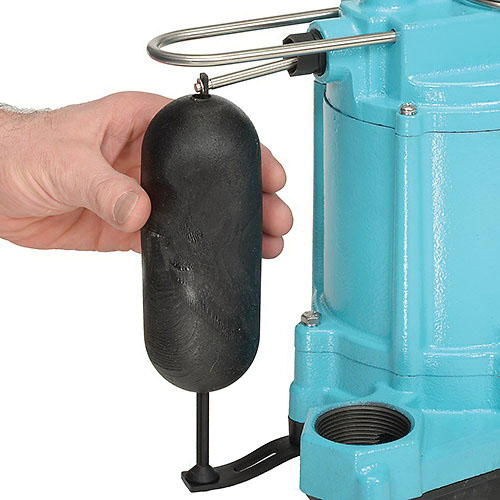

  • Available in manual or automatic operation with two switch options, integral snap action float or piggyback mechanical float
  • 1/3 hp permanent split capacitor (PSC) motor with thermal overload protection
  • Energy saving low amp draw
  • Cooler running motor which extends pump life
  • Vortex impeller
  • Solids handling up to 1/2 in Dia
  • 8 - 11 in on level, 2 - 5 in off level
