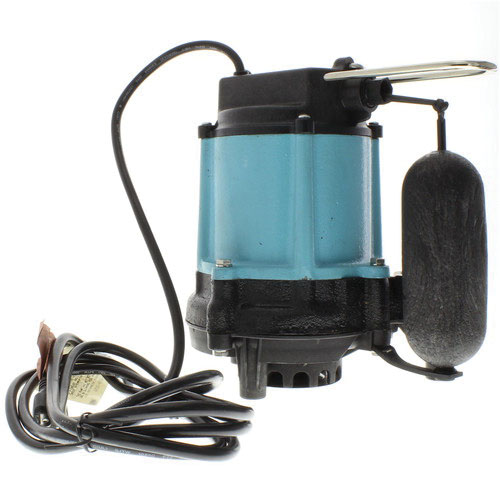

Franklin Electric Sump Pump, Series: 10EN, 10EN-CIA-SFS Model, 115 V, 8 A, 1/2 hp, 67 gal/min at 5 ft, 61 gal/min at 10 ft, 50 gal/min at 15 ft, 40 gal/min at 20 ft, 1-1/2 in FNPT Discharge, 10 ft L Cord, 30 ft Max Feet of Head, 13 lbf/sq-in Pressure, Nylon Impeller, Cast Iron, 10.6 in L x 8.39 in W x 10.18 in H
| Amperage Rating | : | 8 A |
| Cord Length | : | 10 ft |
| Dimensions | : | 10.6 in L x 8.39 in W x 10.18 in H |
| Discharge Size | : | 1-1/2 in FNPT |
| Flow Rate | : | 67 gal/min at 5 ft, 61 gal/min at 10 ft, 50 gal/min at 15 ft, 40 gal/min at 20 ft |
| HP Rating | : | 1/2 hp |
| Impeller Material | : | Nylon |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 30 ft |
| Model | : | 10EN-CIA-SFS |
| Pressure Rating | : | 13 lbf/sq-in |
| Voltage Rating | : | 115 V |
- 1/2 hp permanent split capacitor (PSC) motor with thermal overload protection
- Energy saving low amp draw
- Cooler running motor which extends the life of the pump
- Cast iron pump housing with protective epoxy coating for corrosion and rust-resistance, polypropylene base
- Stainless steel screws, bolts and handle
- Mechanical seals (stainless steel spring, nitrile parts, carbon and ceramic faces)
- Upper and lower sintered sleeve bearings
- Polycarbonate cover
- Cold rolled steel shaft
Instruction/Installation Manual
