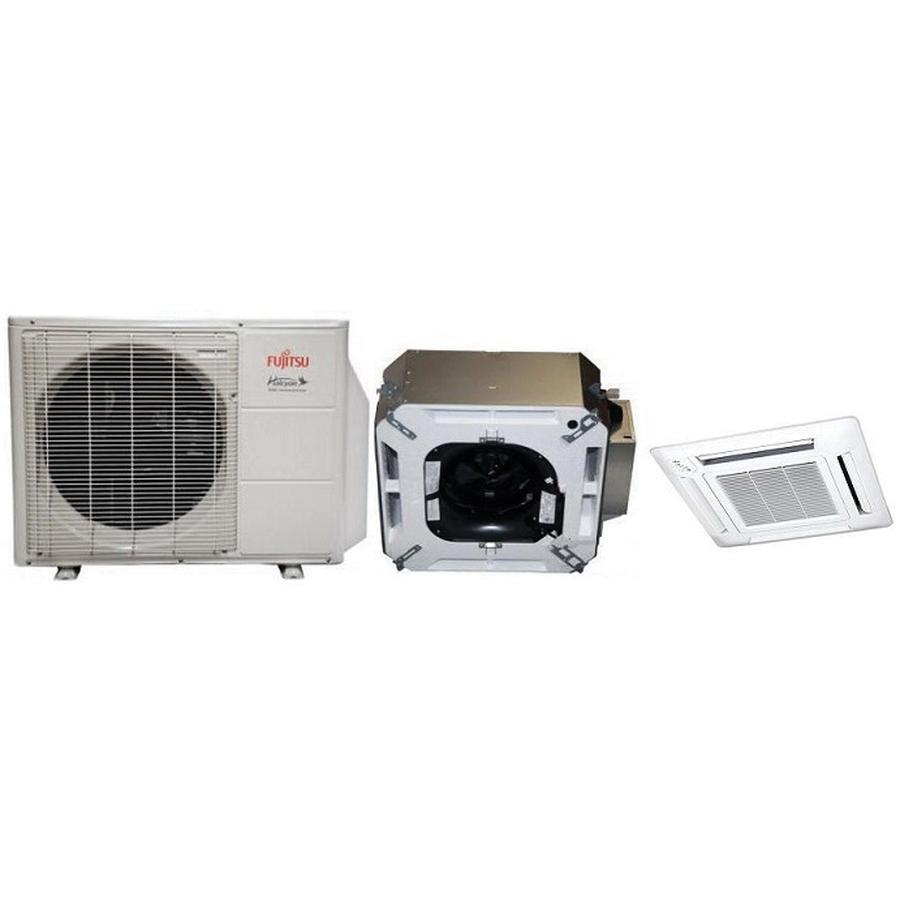

Fujitsu Halcyon Package Mini-Split Heat Pump, 12000 Btu/hr Cooling Cooling BTU Rating, 16000 Btu/hr Heating Heating BTU Rating, 208 - 230 VAC, 3.9 A Cooling, 5.5 A Heating, 10 A Minimum Circuit, 15 A Maximum Over Current Protection, 60 Hz, 1 -Phase, 25 SEER, HSPF: 12, 14.46 Cooling, 13.33 Heating EER, 1/4 in Vapor, 3/8 in Suction Connection, R-410A Refrigerant, 46/41/33/24 dBA Cooling/Heating, 31-3/32 in W x 11-5/8 in H x 9-5/8 in D Indoor, 31-3/32 in W x 24-13/32 in H x 11-23/32 in D Outdoor
| Amperage Rating | : | 3.9 A Cooling, 5.5 A Heating, 10 A Minimum Circuit, 15 A Maximum Over Current Protection |
| Connection Type | : | 1/4 in Vapor, 3/8 in Suction |
| Cooling BTU Rating | : | 12000 Btu/hr Cooling |
| Dimensions | : | 31-3/32 in W x 11-5/8 in H x 9-5/8 in D Indoor, 31-3/32 in W x 24-13/32 in H x 11-23/32 in D Outdoor |
| EER Rating | : | 14.46 Cooling, 13.33 Heating |
| Frequency Rating | : | 60 Hz |
| HSPF Rating | : | 12 |
| Heating BTU Rating | : | 16000 Btu/hr Heating |
| Phase | : | 1 |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 25 |
| Sound Level | : | 46/41/33/24 dBA Cooling/Heating |
| Voltage Rating | : | 208 - 230 VAC |
- Digital wireless remote control
- Four-way automatic louvers
- Minimum heat (50 deg F heating set point)
- Built-in low ambient control
- Auto restart/reset
- 24 hr timer control
- Dry mode
- Quiet mode (indoor unit)
- 6 years compressor and two-years parts warranty
