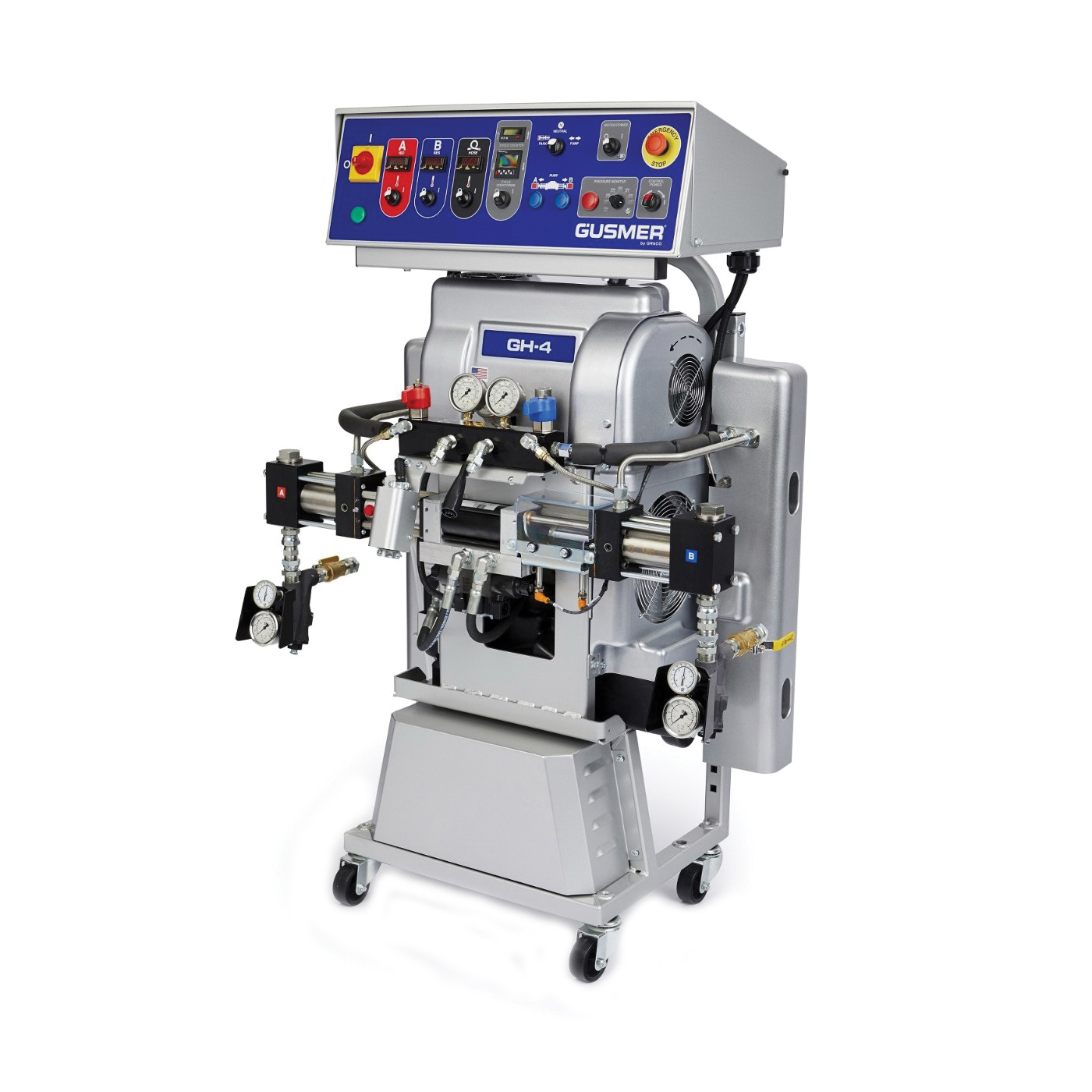

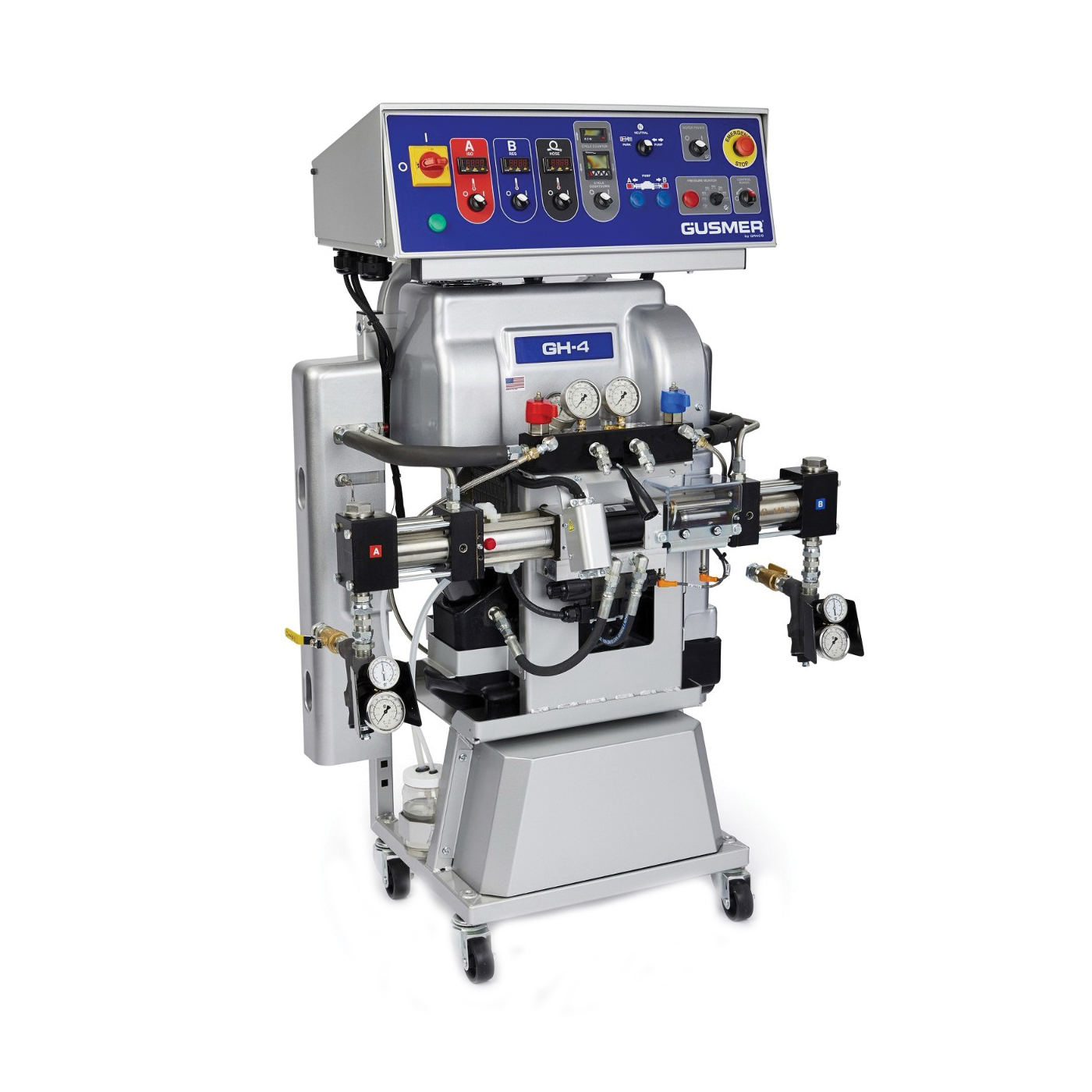

The GH-4 is engineered to be both simple and reliable. Gusmer's point-to-point wired electrical cabinet sits atop GRACO®'s industry-proven hydraulic Reactor 2 chassis, including the Reactor horizontal pump line, fluid heaters and hydraulic system. The Gusmer GH-4 hydraulic proportioner, a simple, durable machine offering impressive performance at an attractive price.
GRACO® Gusmer® GH-4 Reactor and Proportioner Package, 230 V, Phase: 3, Heater Wattage: 15 kW, Maximum Fluid Working Pressure: 2000 psi, Maximum Fluid Temperature: 190 deg F, Output per Cycle: 0.063 gal, Air Flow Rate: 45 lb/min, 410 ft Hose Length, Wetted Materials: Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Fluoroelastomer, PTFE, Ultra-High Molecular Weight Polyethylene, Chemically-Resistant O-Rings, 90.2 dB Sound Level, 32 in Width, 54 in Height, 21 in Depth
| Air Flow Rate | : | 45 lb/min |
| Depth | : | 21 in |
| Heater Wattage | : | 15 kW |
| Height | : | 54 in |
| Hose Length | : | 410 ft |
| Maximum Fluid Temperature | : | 190 deg F |
| Maximum Fluid Working Pressure | : | 2000 psi |
| Output per Cycle | : | 0.063 gal |
| Phase | : | 3 |
| Sound Level | : | 90.2 dB |
| Voltage Rating | : | 230 V |
| Wetted Materials | : | Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Fluoroelastomer, PTFE, Ultra-High Molecular Weight Polyethylene, Chemically-Resistant O-Rings |
| Width | : | 32 in |

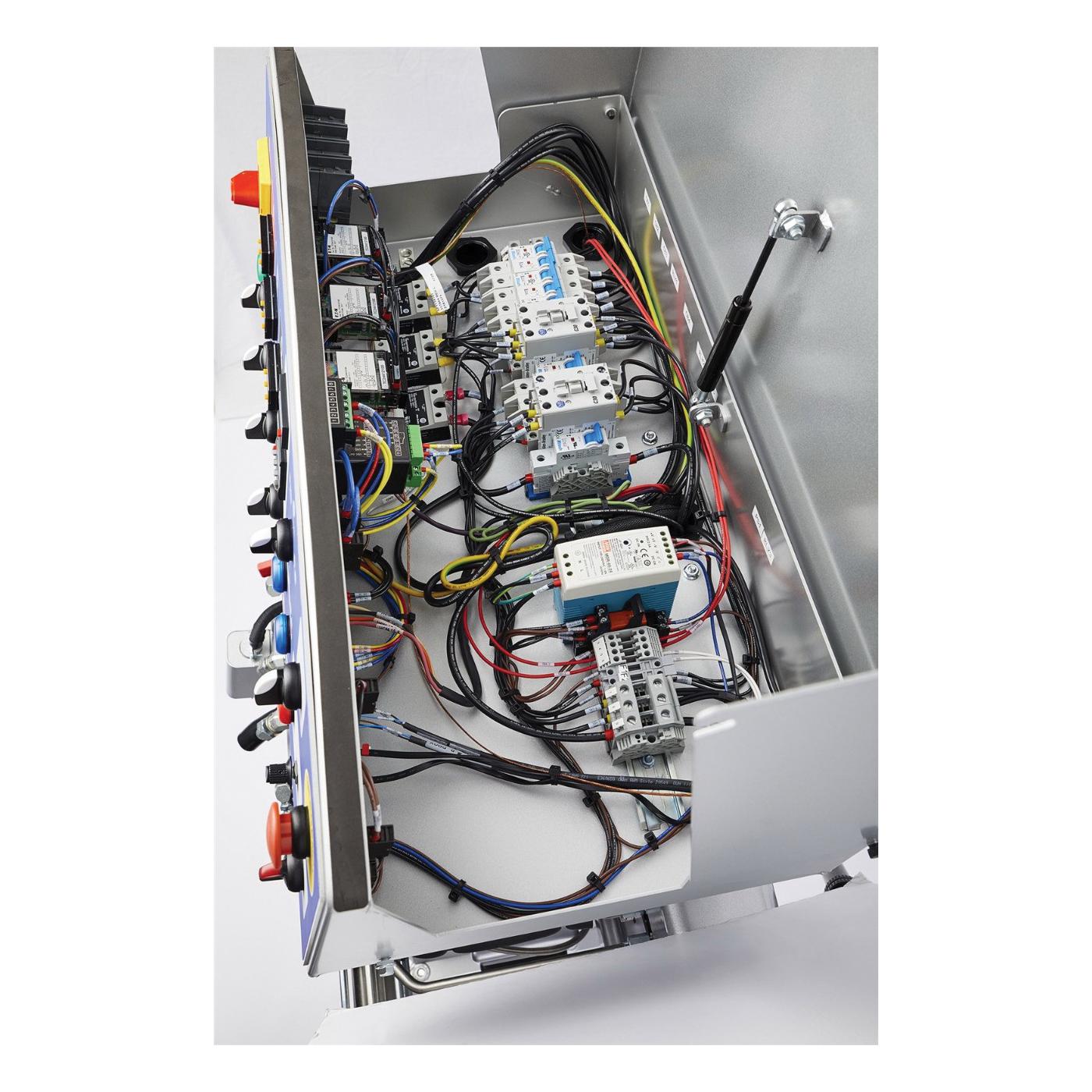

- The Gusmer system features easy access and service to the electrical cabinet
- With standard off-the-shelf hardware it's an easy-to-use and easy-to-maintain design
