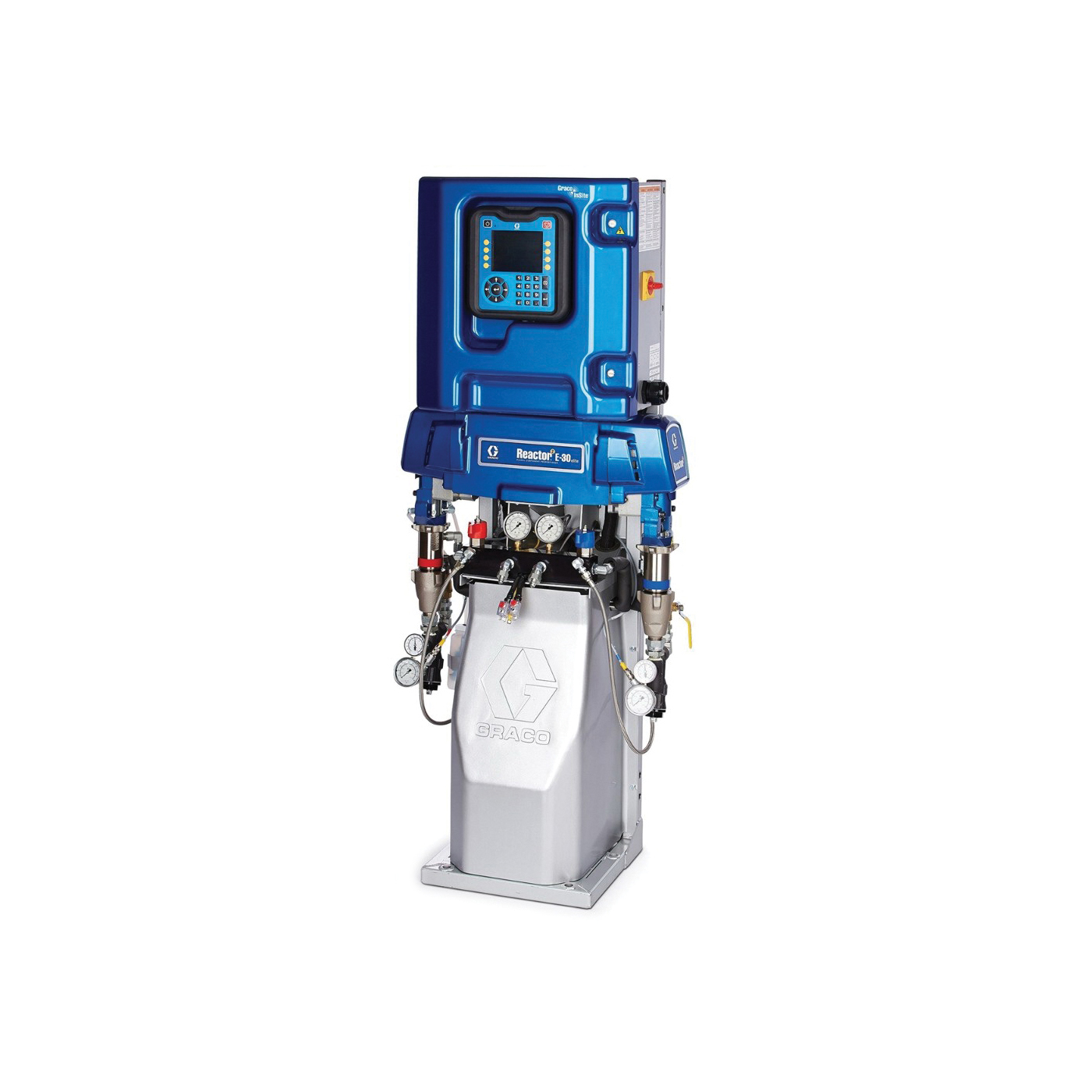

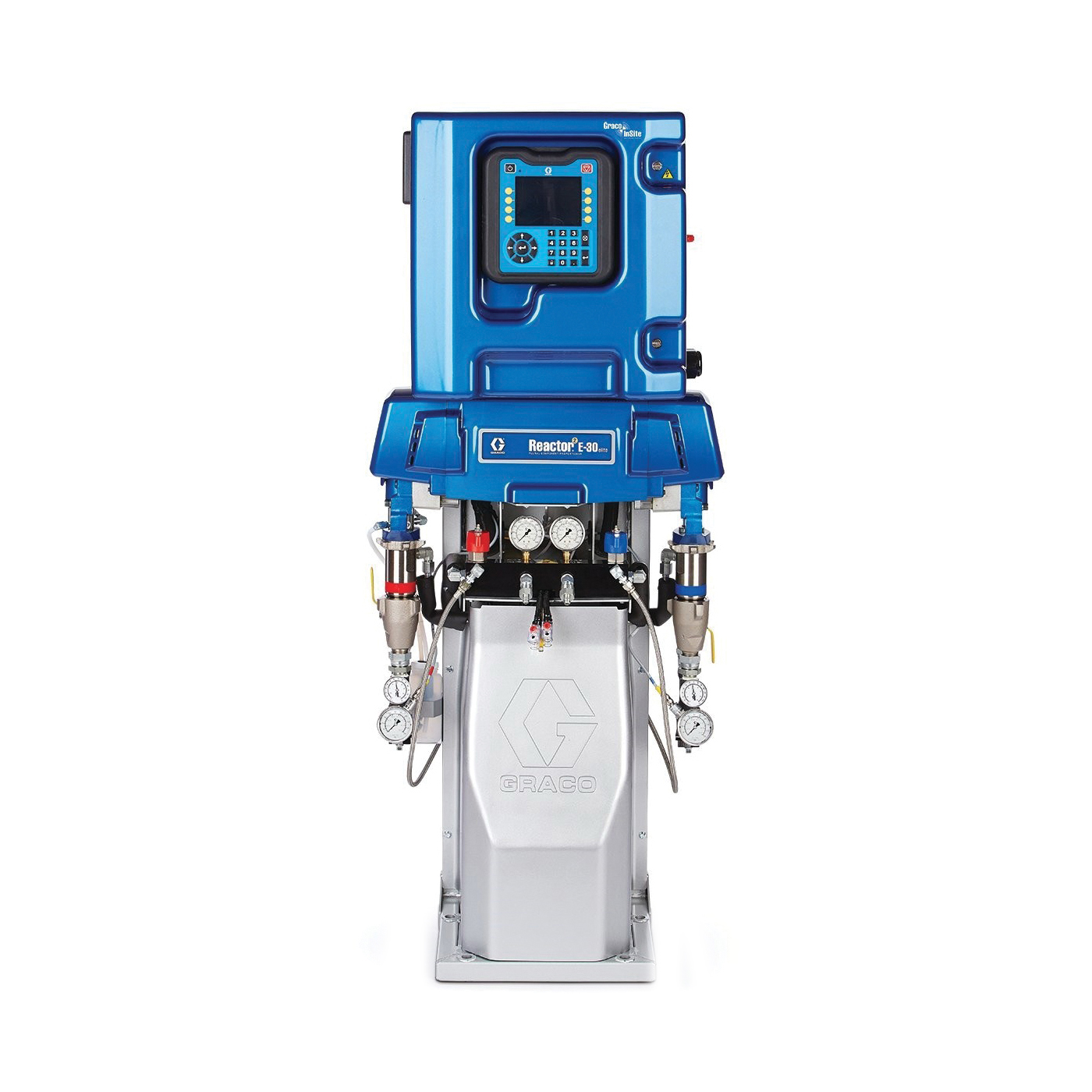

Count on the Reactor 2 E-XP2 proportioner for advanced technology in applying fast-curing polyurea coatings. Because it's a Reactor 2 Series proportioner, it offers software and hardware enhancements for better spray performance, plus technologies that add to your bottom line. The Reactor 2 E-XP2 is engineered to process and spray polyurea and other coatings that require high pressures. The hybrid heater and heated hose condition the materials to the right viscosity prior to mixing. Quick knockdown lower pump for easy maintenance, easy-to-use controls and rugged design make the Reactor the preferred choice for coatings applications. Next generation technology for polyurea coatings.
GRACO® E-XP2 Reactor and Proportioner Package, 230/400 V, Amperage Rating: 35 A, 50/60 Hz Frequency, Phase: 1, 3, Heater Wattage: 15 kW, Maximum Fluid Working Pressure: 3500 psi, Maximum Fluid Temperature: 190 deg F, Output per Cycle: 0.0203 gal, Air Flow Rate: 2 gpm, Fluid Inlet Size: 3/4 in, 50, 10 ft Hose Length, Wetted Materials: Aluminum, Brass, Carbide, Chrome, Chemically-Resistant O-Rings, PTFE, Stainless Steel, UHMWPE, Zinc-Plated Carbon Steel, 83.5 dB Sound Level, 26.3 in Width, 63 in Height, 15 in Depth
| Air Flow Rate | : | 2 gpm |
| Amperage Rating | : | 35 A |
| Depth | : | 15 in |
| Fluid Inlet Size | : | 3/4 in |
| Frequency Rating | : | 50/60 Hz |
| Heater Wattage | : | 15 kW |
| Height | : | 63 in |
| Hose Length | : | 50, 10 ft |
| Maximum Fluid Temperature | : | 190 deg F |
| Maximum Fluid Working Pressure | : | 3500 psi |
| Output per Cycle | : | 0.0203 gal |
| Phase | : | 1, 3 |
| Sound Level | : | 83.5 dB |
| Voltage Rating | : | 230/400 V |
| Wetted Materials | : | Aluminum, Brass, Carbide, Chrome, Chemically-Resistant O-Rings, PTFE, Stainless Steel, UHMWPE, Zinc-Plated Carbon Steel |
| Width | : | 26.3 in |
- Compact footprint, more room in your spray rig
- Ergonomic design, easier to service
- Advanced control modules
- Better spraying performance compared to traditional electric reactor systems
- Troubleshooting made quick and easy with QR codes
- Control your reactor using your phone
- Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
- Monitor your rigs and crews using the multi-system dashboard
- Troubleshoot an issue quickly using real-time data
- Provide documentation to a customer
- Use reports to better manage your business
- Saves all your spray data to the cloud
- Utilize account management to better manage your equipment and crews
- Reactor connect comes standard with all Reactor 2 models
- Tracks, monitors and saves project data
- Data can be saved and downloaded onto a USB drive
- Stores up to 24 chemical recipes
- Drum level indicators
- Results in less downtime
- Easy-to reach, conveniently placed electronics
