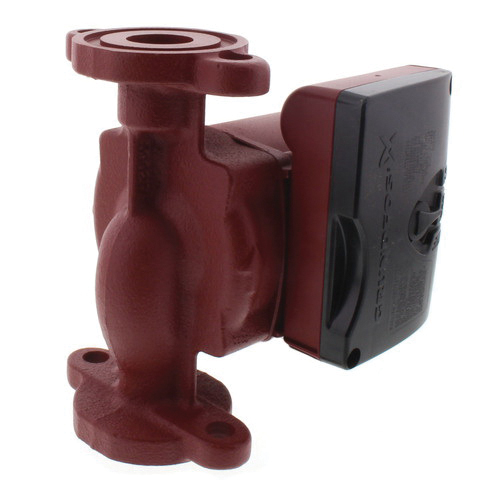

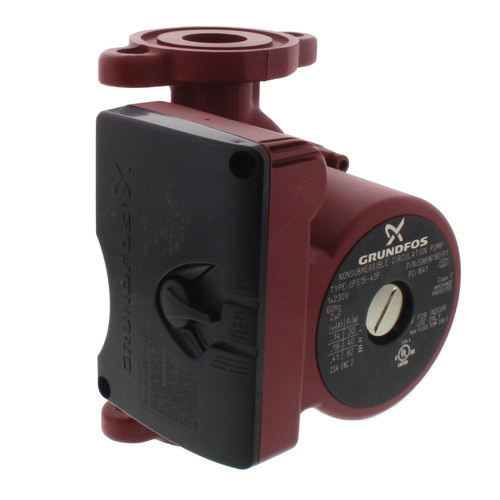

Grundfos Circulator Pump, Series: Small Stator UP, UPS 15-42 F Model, 230 V, 0.41 A, 60 Hz, 0.04 hp, 92 W, 17 gal/min, 1 -Phase, GF15/26 Connection, 2-Bolt Flanged Connection, 2 -Pole, 145 lb/sq-in Working Pressure, 16 ft Max Head, Composite PES Impeller, Cast Iron Body, 104 deg F Ambient, 230 deg F Liquid, 5-1/4 in W x 6-1/2 in H x 4-3/16 in D
| Amperage Rating | : | 0.41 A |
| Body Material | : | Cast Iron |
| Connection Size | : | GF15/26 |
| Connection Type | : | 2-Bolt Flanged |
| Dimensions | : | 5-1/4 in W x 6-1/2 in H x 4-3/16 in D |
| Flow Rate | : | 17 gal/min |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 0.04 hp |
| Impeller Material | : | Composite PES |
| Maximum Head | : | 16 ft |
| Model | : | UPS 15-42 F |
| Number of Poles | : | 2 |
| Phase | : | 1 |
| Power Rating | : | 92 W |
| Pressure Rating | : | 145 lb/sq-in Working |
| Temperature Rating | : | 104 deg F Ambient, 230 deg F Liquid |
| Voltage Rating | : | 230 V |
- UPS closed system three speed circulator pump
- Automatic reset thermal protection
- Multiple accessories for a variety of applications
- Whisper quiet operation for sound sensitive installations
- Ceramic shaft and radial bearings
- Carbon axial bearing
- Stainless steel rotor can and bearing plate
