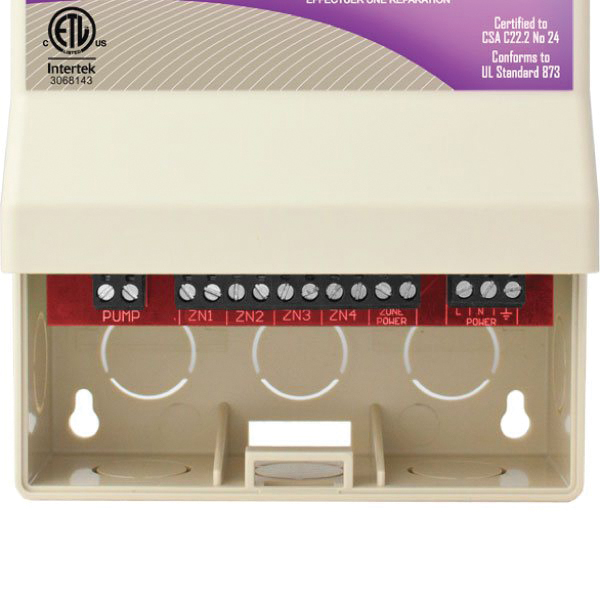

The ZON-0550 is the first Wi-Fi enabled zoning control to the hydronic industry and can be used in many different applications from radiant heating to forced air delivery systems or a combination of both applications. The ZON-0550 module has the capability to control up to four (4) THM-0300 or THM-0500 thermostats per module and can operate pumps, valves or motorized dampers to provide heating and/or cooling to your HVAC system. The control can be expandable up to a maximum of 20-zones that utilize wireless pairing communication between controllers. The zone controller provides outputs (R-W-Y-G-X) for air delivery systems to control fan coils, furnaces and air conditioning units. The zone outputs also allow for humidification and de-humidification control. The ZON-0550 provides two (2) demands outputs for a boiler with the added benefits of a system pump output and DHW control with priority. For geothermal applications, you can use the same demand outputs to control 2 or 4 pipe systems. The ZON-0550 incorporates exercising when equipment is not in use to prevent seizure as well as post purge.
HBX Wi-Fi Enabled Stand Alone Control, 5 A, 120 VAC, Number of Zones: 4, Programmability: Programmable, Wall Mounting, 4.76 in W x 7.4 in H x 2.6 in D Dimensions
| Amperage Rating | : | 5 A |
| Dimensions | : | 4.76 in W x 7.4 in H x 2.6 in D |
| Mounting Type | : | Wall |
| Number of Zones | : | 4 |
| Programmability | : | Programmable |
| Voltage Rating | : | 120 VAC |
- Remote access via Apple® and Android™ Smartphone or tablet devices
- Control up to 20-zones per system
- Humidification and de-humidification control
- DHW control with priority
- Zone pump and zone valve control
- Damper control with NO and NC damper options
- Fan coil, furnace, air conditioning control
- Demand outputs low/high-temperature (boiler), heat or cool demand (geothermal)
- System pump control
- Only requires 2-wires per zone to THM-0300/THM-0500 thermostat
- Geothermal mode (control 2 or 4 pipe systems)
- Alarm email notification through ThermoLinx mobile app
- Pump exercising
- Post purge
- Zone priority
