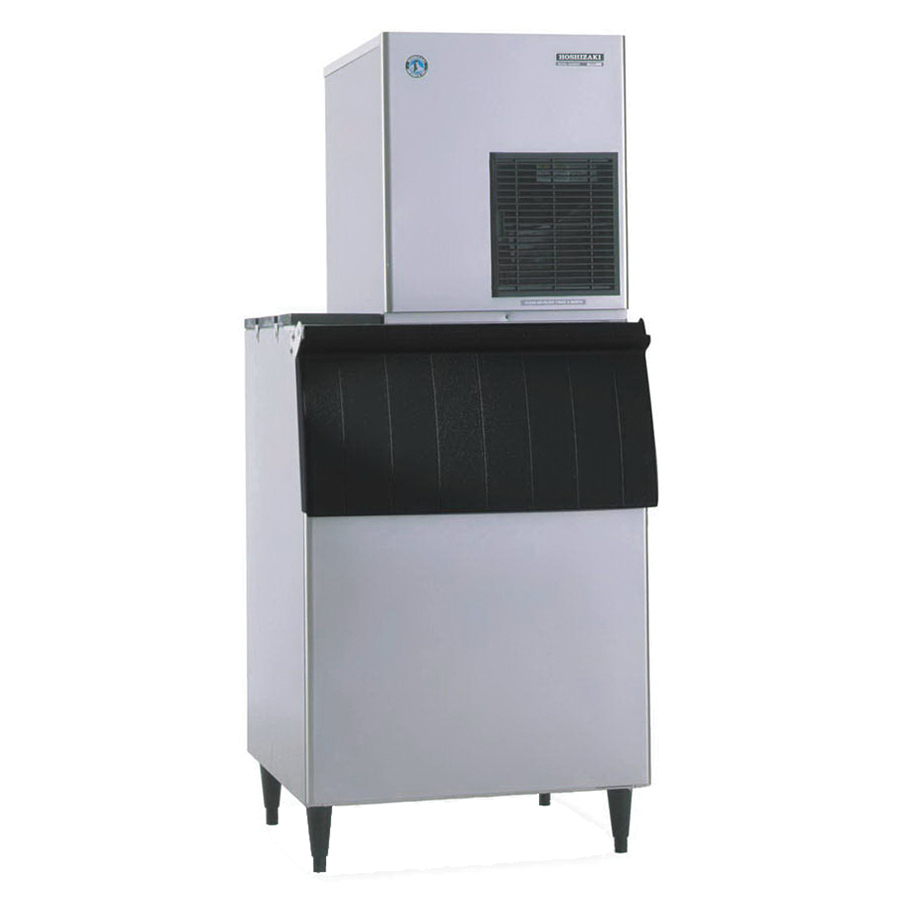

The F-801MAH-C is capable of producing approximately 728 lb of cubelet ice per day. cubelet ice is the most popular ice for drinks as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This air-cooled, slim line modular ice maker features the advanced CleanCycle12 design plus a greaseless bearing auger construction making it simple to maintain.
Hoshizaki Cubelet Icemaker, 115 - 120 V, 11.4 A, 60 Hz, 1 -Phase, 6398 Btu/hr BTU, 4.51 kW-hr per 100 lb Energy Consumption, 20 A Fuse Amperage, 10 - 113 lbf/sq-in Water, 12 gal per 100 lb Water Consumption, 728 lb Ice Yield, 45 - 100 deg F Ambient, 45 - 90 deg F Water, Stainless Steel, Galvanized, 22 in W, 25-15/16 in H, 27-3/8 in D
| Amperage Rating | : | 11.4 A |
| BTU Rating | : | 6398 Btu/hr |
| Depth | : | 27-3/8 in |
| Energy Consumption | : | 4.51 kW-hr per 100 lb |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Amperage | : | 20 A |
| Height | : | 25-15/16 in |
| Ice Yield | : | 728 lb |
| Material | : | Stainless Steel |
| Phase | : | 1 |
| Temperature Rating | : | 45 - 100 deg F Ambient, 45 - 90 deg F Water |
| Voltage Rating | : | 115 - 120 V |
| Water Consumption | : | 12 gal per 100 lb |
| Water Pressure | : | 10 - 113 lbf/sq-in |
| Width | : | 22 in |
- Produces flaked ice
- Compatible bins and dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300
- Mount 2 units side-by-side for 2x the ice production
- 15 min flush cycle every 12 hr
- R404a refrigerant
- Clean ice and easy maintenance lead to longer unit life span
- 1/2 in FPT inlet
- Minimum 1/4 in nominal ID copper water tubing or equivalent
- 3/4 in FPT outlet
- Minimum 3/4 in nominal ID hard pipe or equivalent
Instruction/Installation Manual
Video Link
