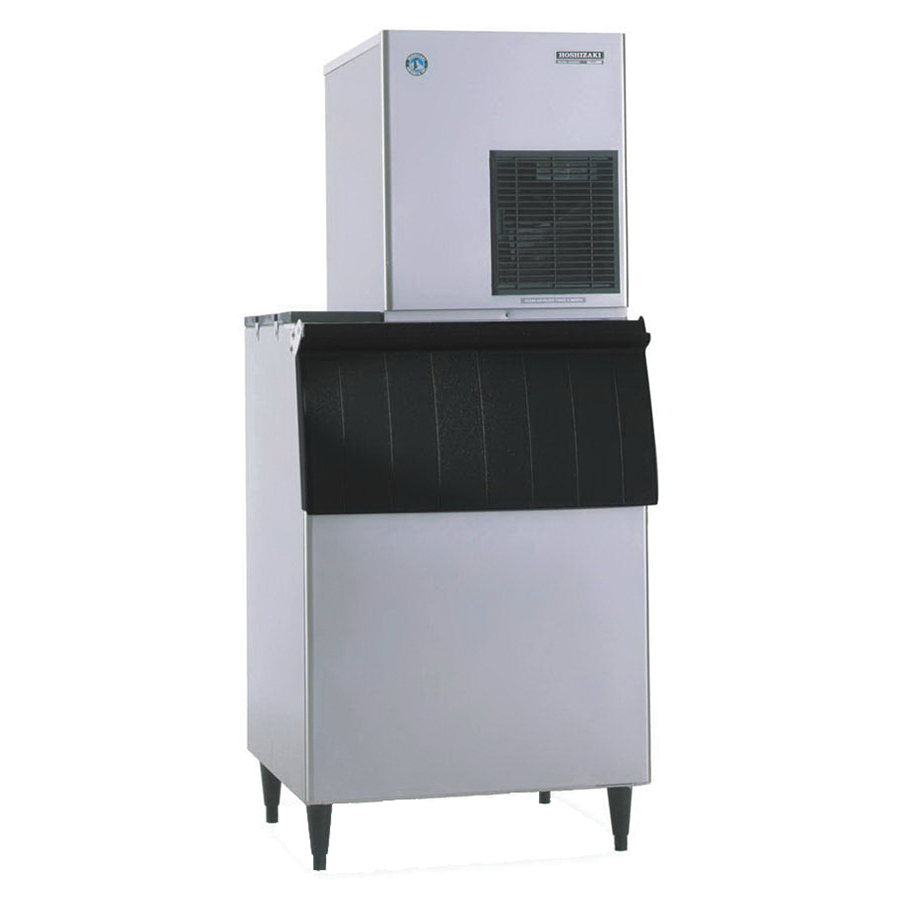

The F-801MAH is capable of producing approximately 795 lb of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters and other food displays that require long lasting sanitary ice. This air-cooled, slim line modular ice maker features the advanced CleanCycle12 design plus a greaseless bearing auger construction making it simple to maintain.
Hoshizaki Flaker Icemaker, 115 - 120 V, 11.4 A, 60 Hz, 1 -Phase, 6398 Btu/hr BTU, 4.21 kW-hr per 100 lb Energy Consumption, 20 A Fuse Amperage, 10 - 113 lbf/sq-in Water, 12 gal per 100 lb Water Consumption, 795 lb Ice Yield, 45 - 100 deg F Ambient, 45 - 90 deg F Water, Stainless Steel, Galvanized, 22 in W, 25-15/16 in H, 27-3/8 in D
| Amperage Rating | : | 11.4 A |
| BTU Rating | : | 6398 Btu/hr |
| Depth | : | 27-3/8 in |
| Energy Consumption | : | 4.21 kW-hr per 100 lb |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Amperage | : | 20 A |
| Height | : | 25-15/16 in |
| Ice Yield | : | 795 lb |
| Material | : | Stainless Steel |
| Phase | : | 1 |
| Temperature Rating | : | 45 - 100 deg F Ambient, 45 - 90 deg F Water |
| Voltage Rating | : | 115 - 120 V |
| Water Consumption | : | 12 gal per 100 lb |
| Water Pressure | : | 10 - 113 lbf/sq-in |
| Width | : | 22 in |
- Produces flaked ice
- Compatible bins and dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300
- Mount 2 units side-by-side for 2x the ice production
- 15 min flush cycle every 12 hr
- R404a refrigerant
- Clean ice and easy maintenance lead to longer unit life span
- 1/2 in FPT inlet
- Minimum 1/4 in nominal ID copper water tubing or equivalent
- 3/4 in FPT outlet
- Minimum 3/4 in nominal ID hard pipe or equivalent
