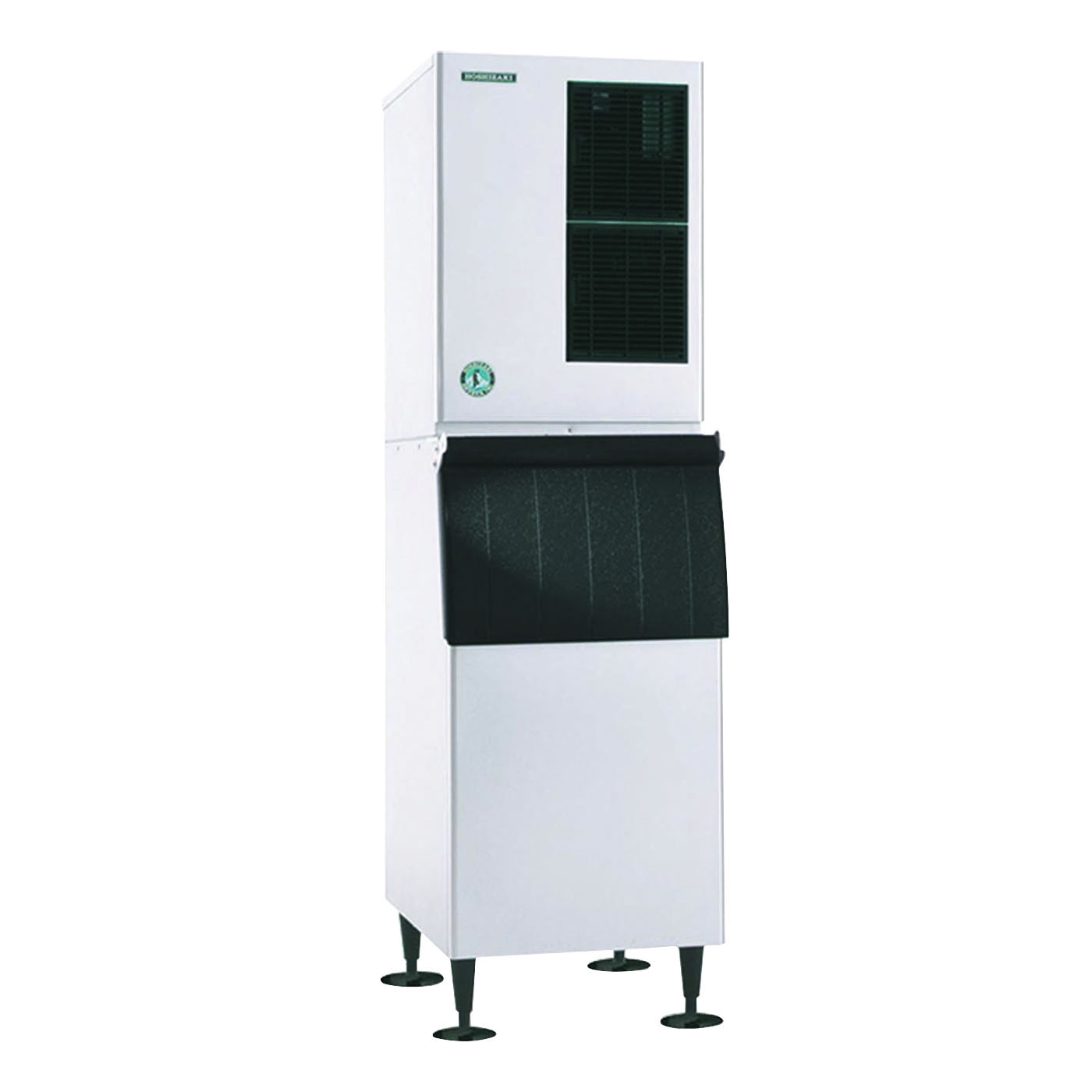

The KM-650MRH is capable of producing approximately 521 lb of crescent cubed ice, mount 2 units side-by-side for 2x the ice production in the same floor space our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications.
Hoshizaki Crescent Cuber Icemaker, 208 - 230 V, 7.4 A, 60 Hz, 1 -Phase, 9600 Btu/hr BTU, 5.6 kW-hr per 100 lb Energy Consumption, 15 A Fuse Amperage, 10 - 113 lbf/sq-in Water, 16.5 gal per 100 lb Water Consumption, 632 lb Ice Yield, 45 - 100 deg F Ambient, 45 - 90 deg F Water, Stainless Steel, 22 in W, 37-7/16 in H, 27-3/8 in D
| Amperage Rating | : | 7.4 A |
| BTU Rating | : | 9600 Btu/hr |
| Depth | : | 27-3/8 in |
| Energy Consumption | : | 5.6 kW-hr per 100 lb |
| Frequency Rating | : | 60 Hz |
| Fuse Amperage | : | 15 A |
| Height | : | 37-7/16 in |
| Ice Yield | : | 632 lb |
| Material | : | Stainless Steel |
| Phase | : | 1 |
| Temperature Rating | : | 45 - 100 deg F Ambient, 45 - 90 deg F Water |
| Voltage Rating | : | 208 - 230 V |
| Water Consumption | : | 16.5 gal per 100 lb |
| Water Pressure | : | 10 - 113 lbf/sq-in |
| Width | : | 22 in |
- Produces crescent ice
- Compatible bins and dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
- EverCheck alert system
- Cycle saver design
- R404a refrigerant
- 1/2 in FPT inlet
- Minimum 1/4 in nominal ID copper water tubing or equivalent
- 3/4 in FPT outlet
- Minimum 3/4 in nominal ID hard pipe or equivalent
