Juno® T817SL Juno_Lighting_0002053_1
  1. pin-int

Juno® T817SL Juno_Lighting_0002053_1

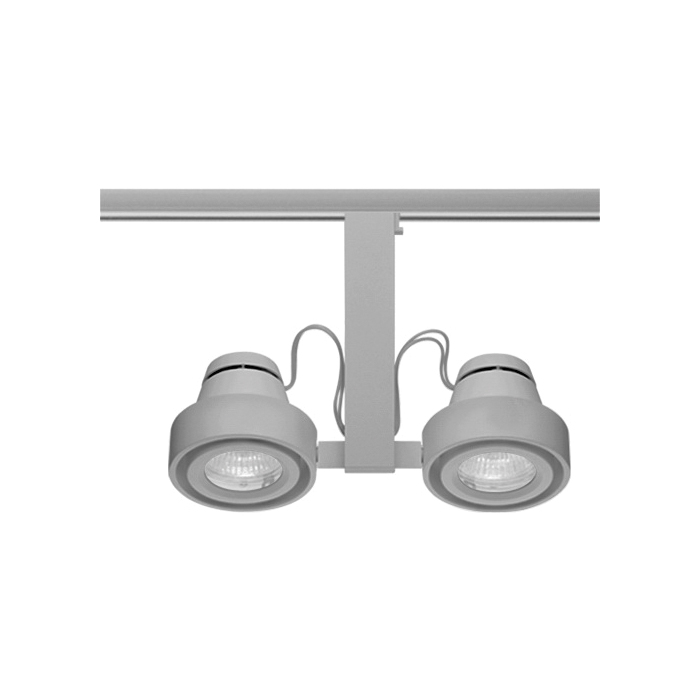

Juno® Trac-Master® DUO™ T817 Avant Garde Low Voltage Track Head With Universal Trac Adapter, MR16 Halogen Lamp

  • Manufacturer: Acuity Brands
  • Brand Name: Juno®
  • Part Number: Juno_Lighting_0002053_1
  • MPN: T817SL
  • Min. Order Qty: 10
  • Qty. Interval: 1
    • Sign In for Availability

Juno® Trac-Master® T817-Series Duo enclosed fixtures feature concentric gimbal rings that spring off the bottom edge of the chiseled monolith in a perfect example of "form follows function." The monolith cleverly conceals the integral transformer and remains perfectly aligned with the trac while the gimbal ring mechanisms are free to provide broad aiming capability. These unique low-voltage fixtures are offered with 2 lampholders and are available in white, black, or silver. The enclosed lampholder design eliminates any stray backlight effect from the MR16 lamps.

Juno® Trac-Master® DUO™ Track Head, Avant Garde Low Voltage, Series: T817, MR16 Halogen Lamp, 20 to 75 W Lamp, 5-5/8 in Maximum Extension, Bi-Pin Lamp Base, 2 Lamps, Enclosed Round Back Head, 8-1/4 in Width, Fixture Mount, Aluminum Housing, Silver Housing

Head Style      :      Enclosed Round Back
Housing Finish      :      Silver
Housing Material      :      Aluminum
Includes      :      Glass Lens, ON/OFF Switch
Lamp Base      :      Bi-Pin
Lamp Type      :      MR16 Halogen
Lamp Wattage      :      20 to 75 W
Maximum Extension      :      5-5/8 in
Mounting Type      :      Fixture
Number of Lamps      :      2
Series      :      T817
Type      :      Avant Garde Low Voltage
Width      :      8-1/4 in
  • Ceramic bi-pin socket
  • Uno and Duo may be adjusted up to 90 deg perpendicular to the trac in either direction and up to 45 deg parallel to the trac either direction
  • Framed Duo has 45 deg vertical aiming capability in all directions
  • Integral solid state electronic transformer
  • Dimmable using dimmer specifically design for use with electronic transformers
  • Extruded aluminum vertical monolith
  • Durable die-cast aluminum concentric gimbal rings offer optimum adjustability
  • Enclosed MR16 versions eliminate stray backlight effect from lamps
  • Precision, one-piece die-cast aluminum grid frames on Framed Duo offer premium, consistent aesthetics
  • Compatible with Juno Trac-Master 1 or 2-circuit systems or Juno Trac-Lites system
  • Copper alloy contacts provide precise spring action - no arcing and will not take a set
  • True, positive electrical ground
  • Patented embossed polarity arrows on bottom of adapter
  • Spring-loaded positive latch with embossed polarity arrows secures trac light to trac
  • Pull-up contact to up position for two circuit application

Standards/Approvals: UL Listed, CSA Certified

Application: Automotive and Parking, Education, Government, Healthcare, Hospitality, Offices and Banks, Religious, Residential, Retail, Sports, Recreation and Indoor Environment
