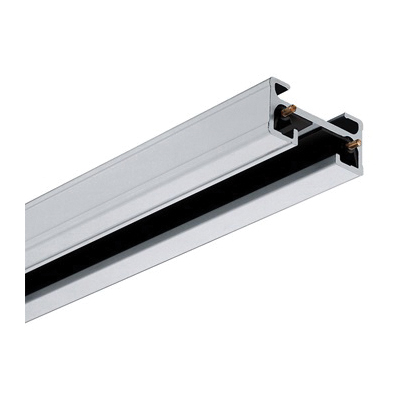

Trac-Master® T-Series low-profile, single-circuit trac sections can be surface or pendant mounted. They feature an I-beam cross section that provides added strength and rigidity in suspended pendant applications and are compatible with a full range of feed, connector, and mounting accessories to satisfy virtually any trac lighting requirement. Trac sections are available in 2, 4, 6, 8 and 12 ft lengths and accept all the fixtures in the exceptional Trac-Master® and Trac-Lites™ product lines. Offered in white, black, natural, or silver.
Juno® Trac-Master® Trac System, Low Profile One Circuit, Series: T, 8 ft Length, 1-3/8 in Width, For Use With: Trac-Master® and Trac-Lites® Trac Fixtures, Extruded Aluminum, Natural, 11/16 in H
| Dimensions | : | 11/16 in H |
| Finish | : | Natural |
| Length | : | 8 ft |
| Material | : | Extruded Aluminum |
| Series | : | T |
| Suitable For Use With | : | Trac-Master® and Trac-Lites® Trac Fixtures |
| Type | : | Low Profile One Circuit |
| Width | : | 1-3/8 in |
- Two 12 gauge solid copper conductors
- Rated 20 A at 120 VAC
- Aluminum channel used as system ground
- One-piece insulator insures consistent conductor spacing for reliable electrical contact
- Insulating bushings supplied at mounting hole locations to prevent shorts to ground
Standards/Approvals: UL Listed, CSA Certified
Application: Automotive and Parking, Education, Government, Healthcare, Hospitality, Offices and Banks, Religious, Residential, Retail, Sports and Recreation and Indoor Environment
Specification Sheet-1
