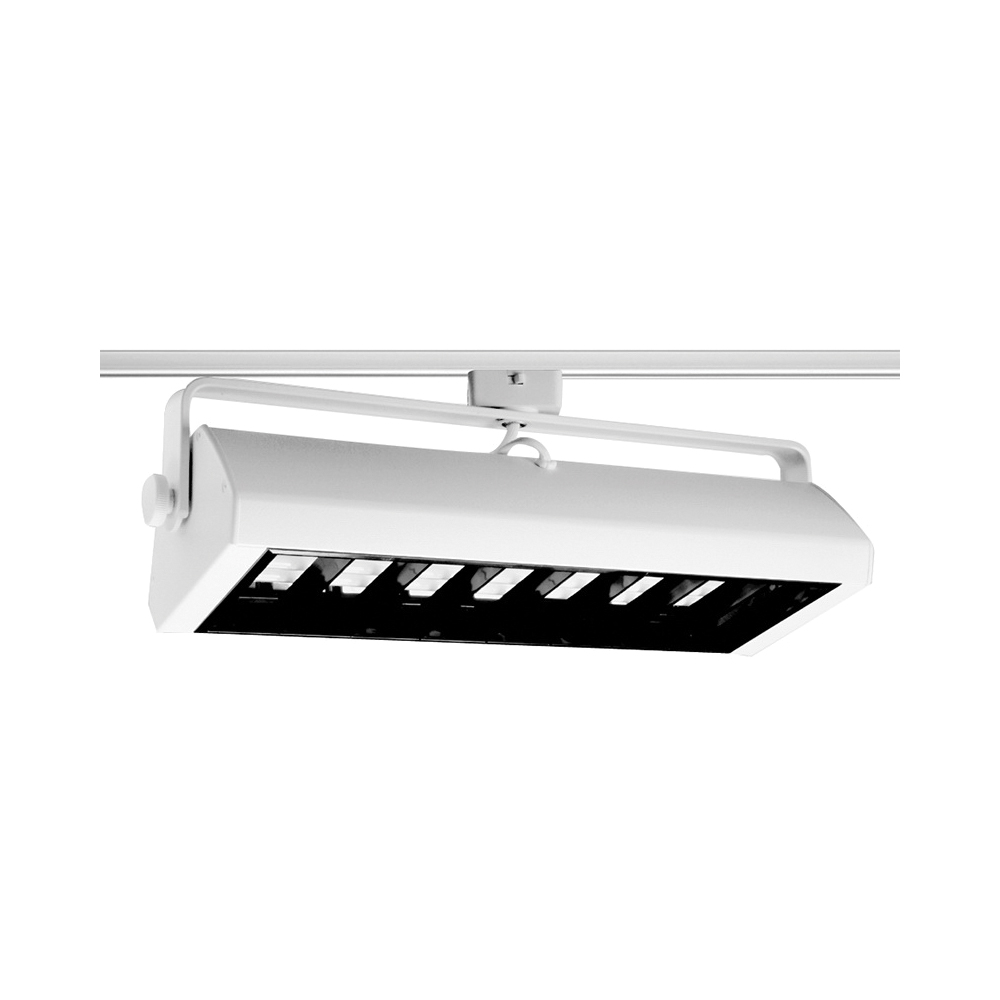

Juno® TBX39WH Juno_Lighting_0000631_1

Approximately 3 times more efficient than halogen, the TBX Series biax wall wash fixtures provide widespread, uniform illumination for perimeter walls and displays using popular biaxial compact fluorescent lamps. The fixture has a single adapter and can be rotated off-axis from the trac for additional aiming flexibility. Suitable for ceiling mount applications only.

Juno® Trac-Master® Track Head, Series: Biax® TBX, CFL Lamp, 120 V, 36/39 W Lamp, 7-7/8 in Maximum Extension, 4-Pin 2G11 Lamp Base, 2 Lamps, Flood Beam Spread, Biax® Wall Wash Head, 6-5/8 in Dia, 20-1/8 in Width, Ceiling Mount, Aluminum Housing, White Housing

• HPF magnetic ballast
• 90 deg vertical aiming capability and 358 deg rotation, two locking knobs provided
• Single, oversized adapter on "C" channel style yoke on 18 W and 36/39 W units
• Two standard trac adapters on 40 W unit
• Compatible with Juno Trac-Master 1 or 2-circuit systems or Juno Trac-Lites system
• Copper alloy contacts provide precise spring action - no arcing and will not take a set
• True, positive electrical ground
• Patented embossed polarity arrows on bottom of adapter
• Spring-loaded positive latch with embossed polarity arrows secures trac light to trac
• Pull-up contact to up position for two circuit application
• Computer contoured reflector
• Sturdy extruded aluminum housing with die-cast aluminum end caps and textured paint
• One-piece parabolic blade louvers are of sturdy, injection molded construction with snap-in design
• Specular louvers offer controlled brightness, with minimal loss in efficiency
• Equally efficient, white louvers have a more contemporary appearance and are easier to keep clean

Standards/Approvals: UL Listed, CSA Certified

Application: Automotive and Parking, Education, Government, Healthcare, Hospitality, Offices and Banks, Religious, Residential, Retail, Sports, Recreation and Indoor Environment

• Specification Sheet https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_TBX18E_WH_Datasheet.pdf
