Renowned throughout the world for their effi ciency and durability, KAESER's compact blower blocks are the result of decades of experience in blower manufacture and design. All KAESER blocks are suitable for operation at pressures up to 1000 m-bar(g) and temperatures up to 160 deg C. If a lower operating pressure is required, users can be safe in the knowledge that their KAESER blower will still deliver outstanding performance even at high intake temperatures. This high temperature capacity ensures a wider control range for speed controlledoperation and provides additional energy savings by allowing operation at minimal flow volumes. Each blower block's rotors and shafts are perfectly balanced to Q 2.5 standards for smooth, trouble free running. This not only significantly enhances durability, but also keeps total operating costs to an absolute minimum. KAESER blower blocks use heavy duty cylinder roller bearings which are able to withstand ten times the dynamic load exerted on conventional self-aligning bearings. As a result, they last signifi cantly longer - 100,000 hr- which means reduced maintenance costs (expense for new bearings) and increased system availability. Furthermore, KAESER blower blocks use high precision spur ground timing gears and minimal flank clearance plays a major role in contributing to the block's outstanding volumetric effi ciency (N-cu-m/kw-hr). These spur gears allow the use of highly durable cylinder roller bearings, as the radial forces associated with beveled gears are completely eliminated.

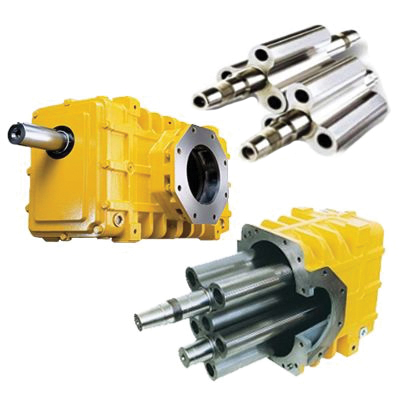

Kaeser Compressors® Rotary Lobe Blower Block, Series: Omega, 55 kW, 74 hp, 4200 rev/min Speed, 1000 cu-ft/min, 21-7/16 in L x 14-15/16 in W x 11-7/16 in H
| CFM Rating | : | 1000 cu-ft/min |
| Dimensions | : | 21-7/16 in L x 14-15/16 in W x 11-7/16 in H |
| HP Rating | : | 74 hp |
| Power Rating | : | 55 kW |
| Speed Rating | : | 4200 rev/min |
- One piece rotors and sealing strips
- Heavy-duty bearings
- Straight-cut gears
- Superior casing
- Heat-treated, metal labyrinth seals on both air and oil side seals ensure performance and long life, the vented seal cavity ensures oil-free air delivery
- Reliable splash lubrication
