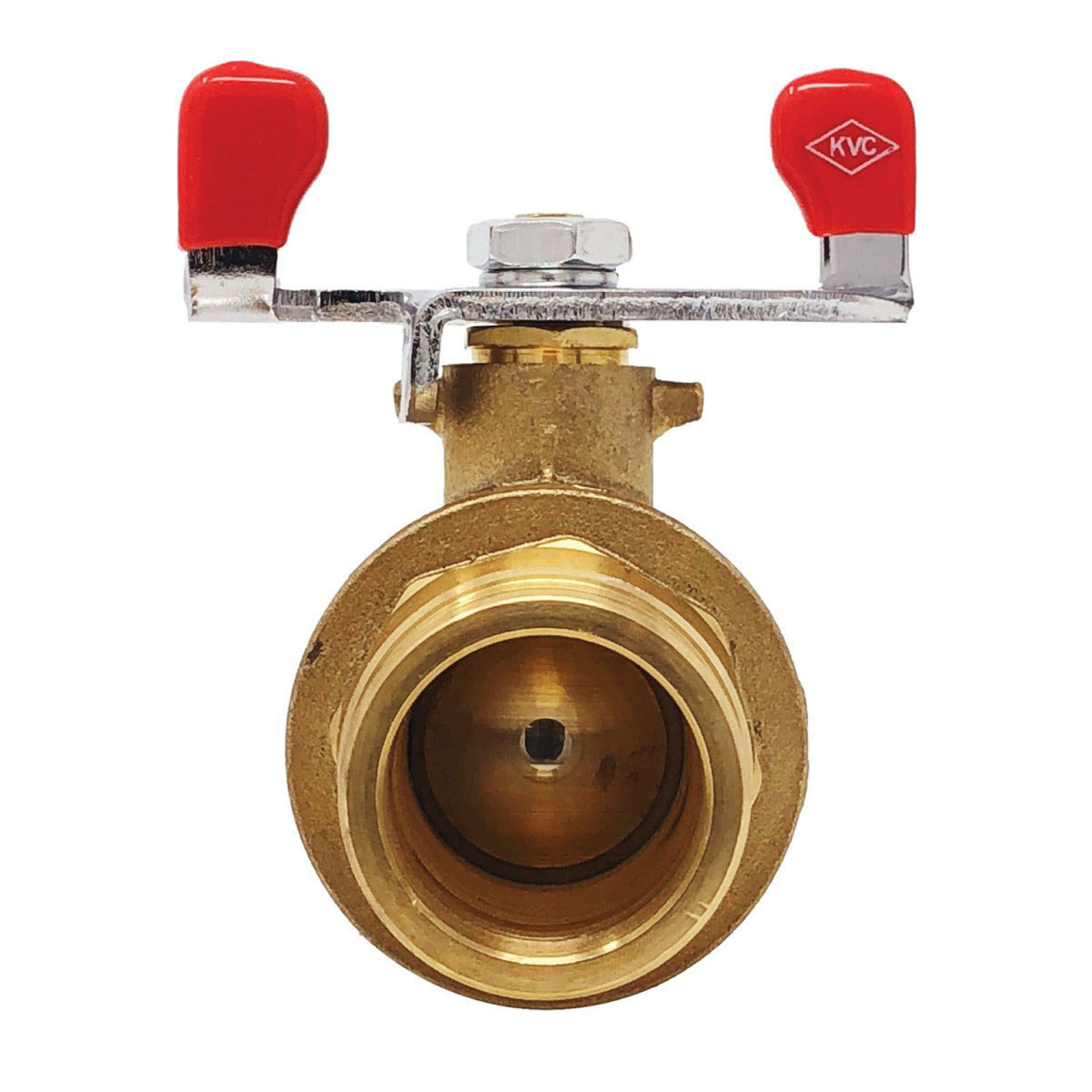

KVC NL-1406-0050 Cold Expansion Ball Valve, 1/2 in Nominal, PEX Connection, 150 psi Pressure, Wing Handle Operator

  • Manufacturer: KVC Industries Corp
  • Brand Name: KVC
  • Part Number: ERP_016774
  • MPN: NL-1406-0050
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

KVC Cold Expansion Ball Valve, Connection Type: PEX, 1/2 in Nominal, 150 psi, Gas, Oil, Steam, Water Media, 2.58 in Inlet to Outlet Length, 1.69 in Top to Inlet Center, Wing Handle Operator, Flow Coefficient (Cv): 8.23, Material Standard: ASTM F1960, Brass Body, PTFE Seat, Brass Stem, NBR Seal, PTFE Packing, Ferrum Handle, Stainless Steel Ball, Lead-Free/Contains Lead: Lead-Free, -20 to 300 deg F

Ball Material      :      Stainless Steel
Body Material      :      Forged Brass
Connection Type      :      PEX
Flow Coefficient (Cv)      :      8.23
Handle Material      :      Chrome-Plated Ferrum
Inlet to Outlet Length      :      2.58 in
Lead-Free/Contains Lead      :      Lead-Free
Material Standard      :      ASTM F1960
Media      :      Gas, Oil, Steam, Water
Nominal Size      :      1/2 in
Operator Type      :      Wing Handle
Packing Material      :      PTFE
Pressure Rating      :      400/150 psi
Seal Material      :      NBR
Seat Material      :      PTFE
Stem Material      :      Brass
Temperature Rating      :      -20 to 300 deg F
Top to Inlet Center      :      1.69 in
  • Dezincification-resistant (DZR) lead-free brass material
  • Blow-out-proof stem design
  • Packing nut, O-ring and packing on the stem seal
  • Handle with vinyl grip
  • Zinc-plated ferrum lock nut, washer
  • Brass cap
  • Brass packing nut
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/KVC_NL_1406_0050_Specification_Sheet.pdf
