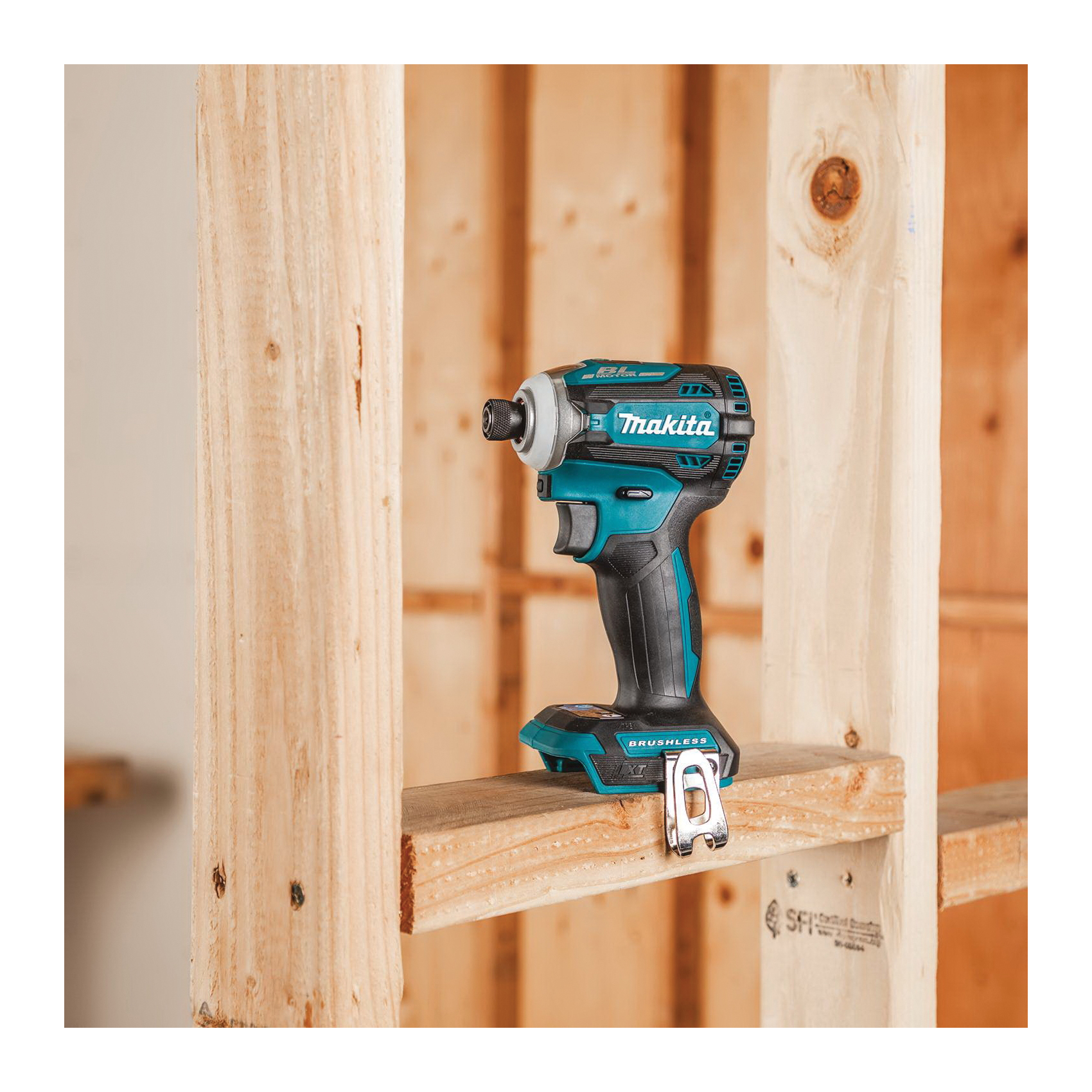

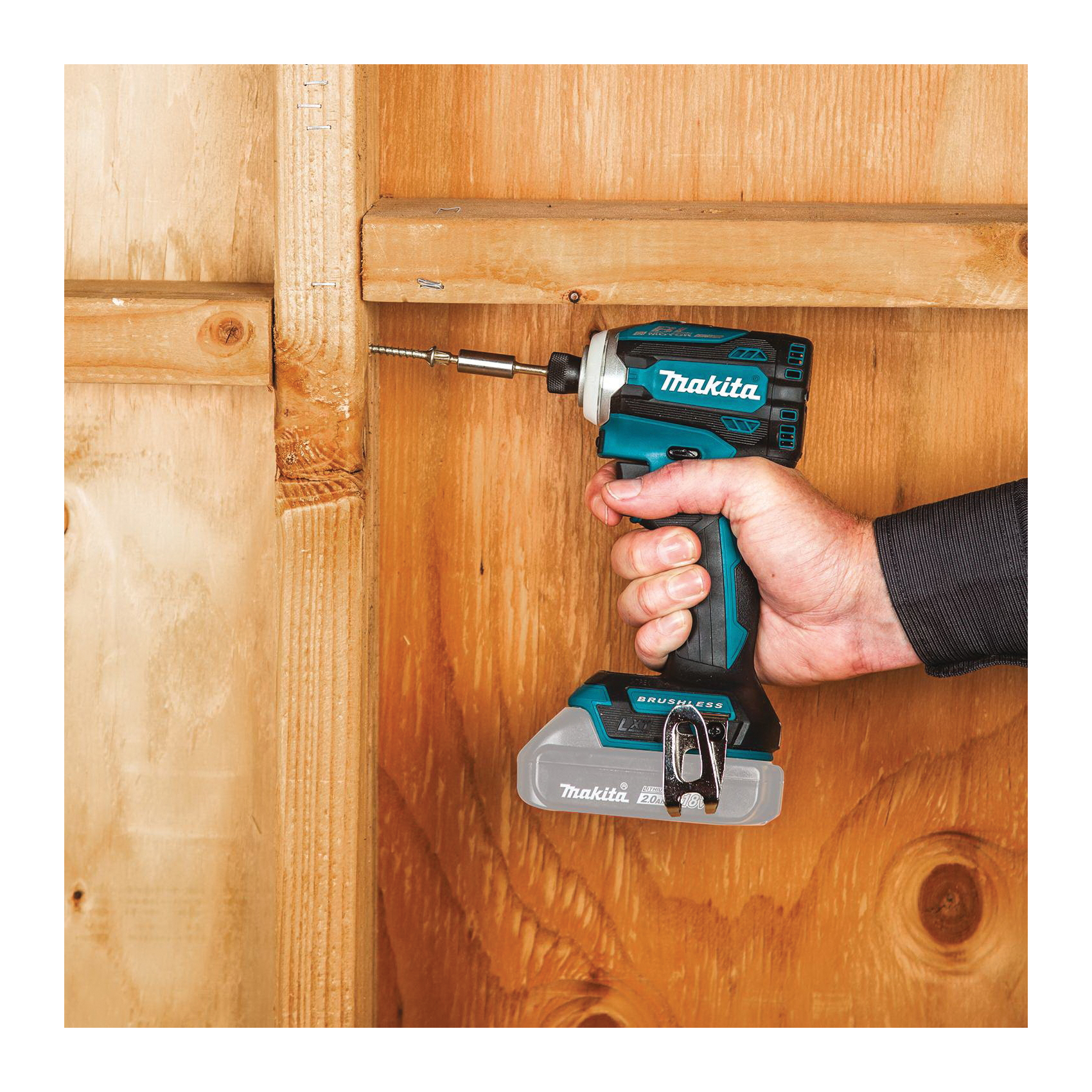

Makita® has a legacy of innovation in the cordless impact driver category and the 18V LXT® brushless 4-speed impact driver (XDT16Z) sets new standards. The XDT16Z offers users four speeds as well as Makita® exclusive Quick-Shift Mode™ for increased fastening control. Quick-Shift Mode™ uses the brushless motors electronic controls to find the best balance of speed and torque for each application for more efficient fastening. Another precision setting is tightening mode which downshifts and reduces rotation and impact speed prior to driving the screw into place and is engineered to minimize screw thread stripping screw breakage and damage to work. The XDT16Z delivers industry leading performance in a compact and ergonomic design. Added features include the one-touch 4-speed power selector button under the chuck which enables one-handed speed changes and reverse rotation auto stop mode which stops rotation and impact when the fastener is loosened adequately to help prevent over loosening and dropped fasteners. Its part of Makita® expanding 18V LXT® system the worlds largest cordless tool system powered by 18 V lithium-ion batteries. Makita® 18V LXT® batteries have the fastest charge times in their categories so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life Makita® created Star Protection Computer Controls™. Star Protection is communication technology that allows the star protection equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading over discharging and overheating. For increased versatility the tool can also be powered by Makita® 18V LXT® and compact lithium-ion batteries with the star symbol on the battery indicating star protection inside.
Makita® Impact Driver, Tool/Kit: Tool, Tool Type: Cordless, 1/4 in Drive, Hex Drive, 1600 in-lb Torque, 0 to 1100 ipm, 0 to 2600 ipm, 0 to 3600 ipm, 0 to 3800 ipm, 18 VDC, Lithium-Ion Battery, 0 to 1100 rpm, 0 to 2100 rpm, 0 to 3200 rpm, 0 to 3600 rpm, 4 Speed Setting, Ergonomic Handle, 4-1/2 in Overall Length
| Battery Type | : | Lithium-Ion |
| Drive Size | : | 1/4 in |
| Drive Type | : | Hex |
| Handle Type | : | Ergonomic |
| Impacts per Minute | : | 0 to 1100 ipm, 0 to 2600 ipm, 0 to 3600 ipm, 0 to 3800 ipm |
| Overall Length | : | 4-1/2 in |
| Speed Rating | : | 0 to 1100 rpm, 0 to 2100 rpm, 0 to 3200 rpm, 0 to 3600 rpm |
| Speed Setting | : | 4 |
| Tool Type | : | Cordless |
| Tool/Kit | : | Tool |
| Torque Rating | : | 1600 in-lb |
| Voltage Rating | : | 18 VDC |
- Quick Shift Mode™ uses the brushless motors electronic controls to find the best balance of speed and torque for each application for more efficient fastening
- Additional one touch 4-speed power selector button under the chuck for added convenience
- Assist mode feature helps eliminate screw cam out and cross threading by driving at low speed until tightening begins
- Two tightening modes for faster tightening of self-drilling screws in thick or thin gauge metal helps prevent damage to the screw or workpiece
- Reverse rotation auto-stop mode stops rotation and impact when fastener is loosened adequately

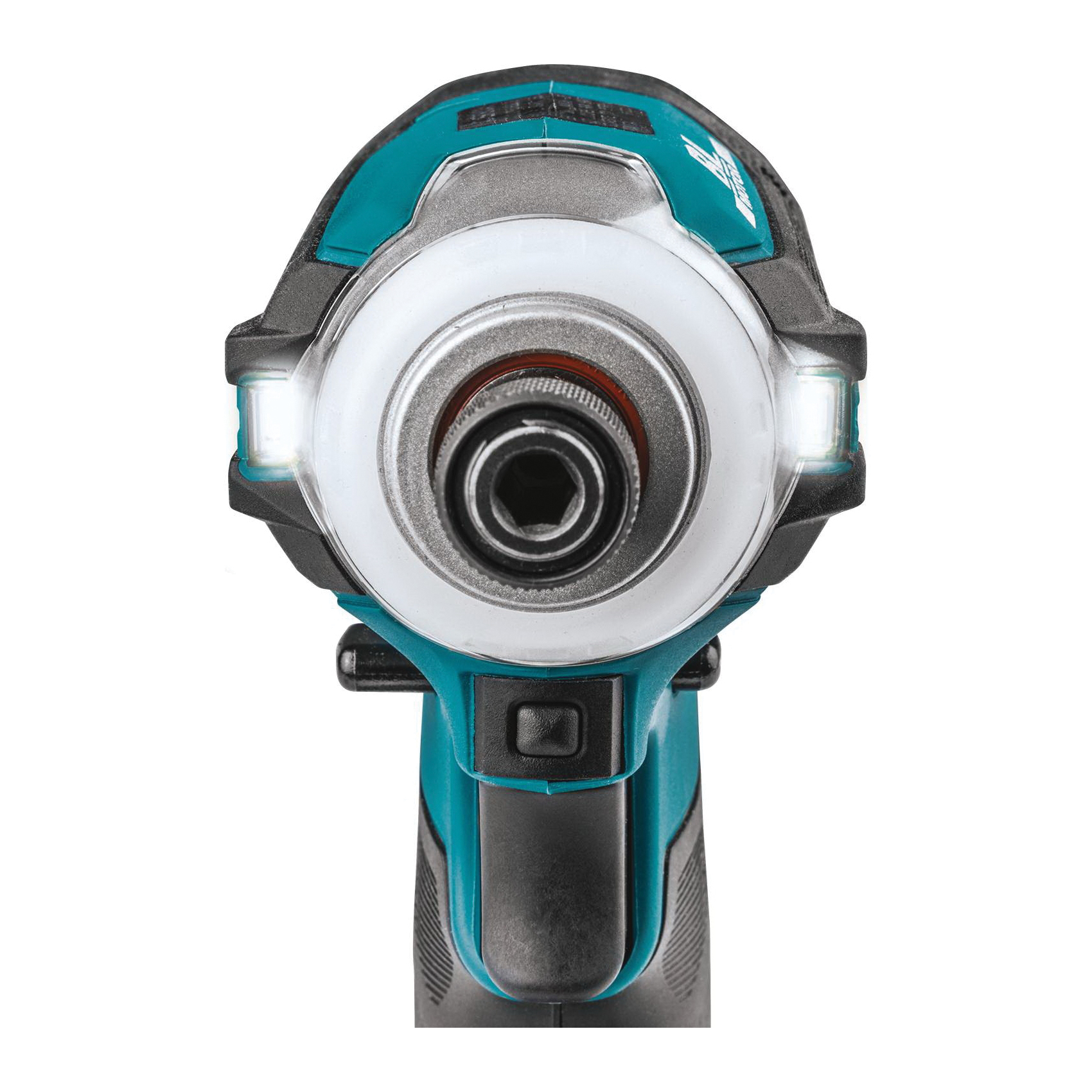

- Built-in LED lights on both sides helps eliminate shadows and illuminate a larger area
- Compact and ergonomic design at only 4-9/16 in L

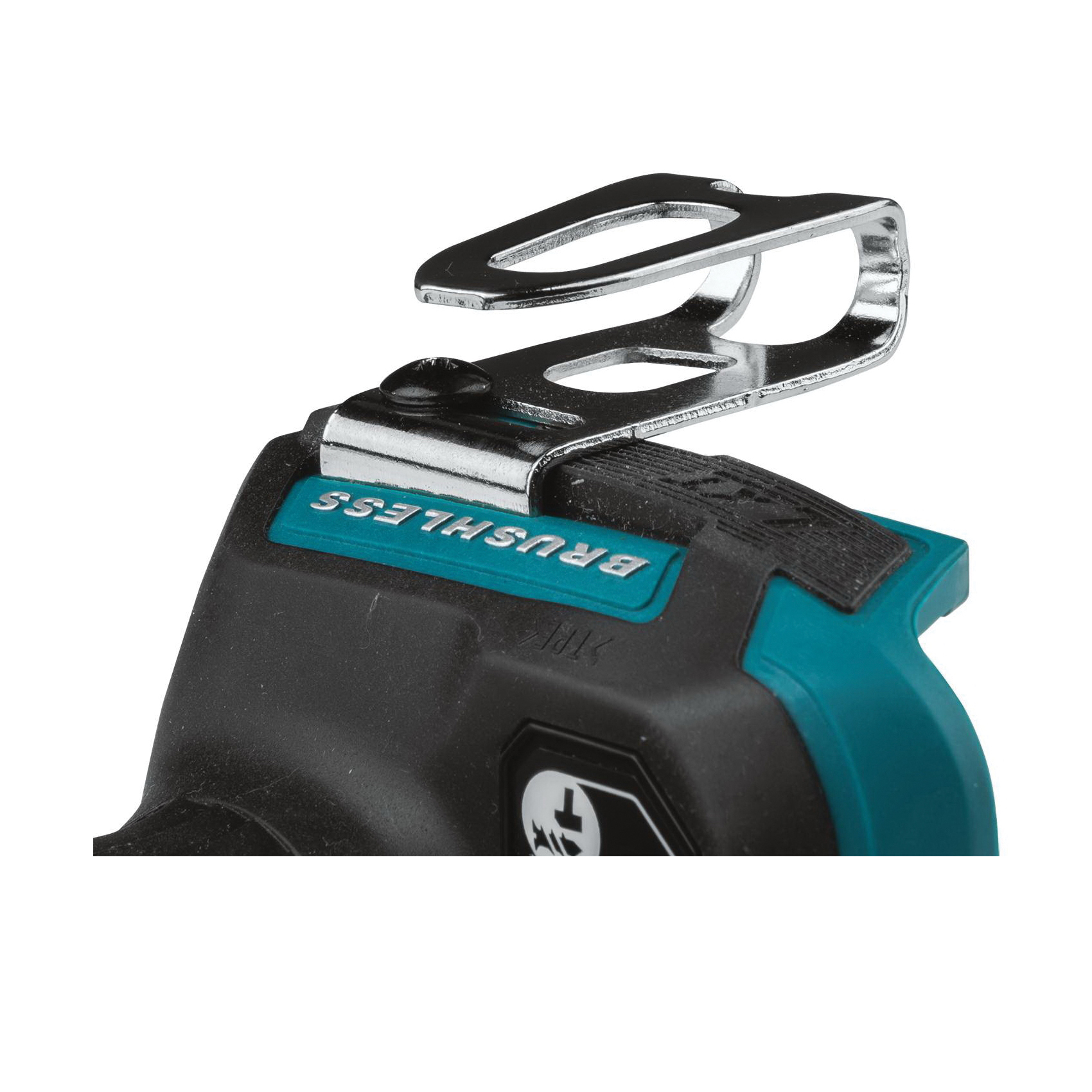

- Efficient BL™ brushless motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
- The BL™ brushless motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- The electronically controlled BL™ brushless motor efficiently uses energy to match torque and RPM to the changing demands of the application
- Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
- Convenient one touch 1/4 in hex chuck for quick bit changes
- All metal gear housing for increased jobsite durability
- Rubberized soft grip provides increased comfort on the job
- Makita® proprietary hammer and anvil impact mechanism is manufactured using the best raw materials with the highest quality steel and unique heat hardening process for maximum fastening and driving power
- Equipped with Star Protection Computer Controls™ to protect against over loading, over discharging and over heating
- Compatible with Makita® 18 V lithium-ion batteries with a star symbol
