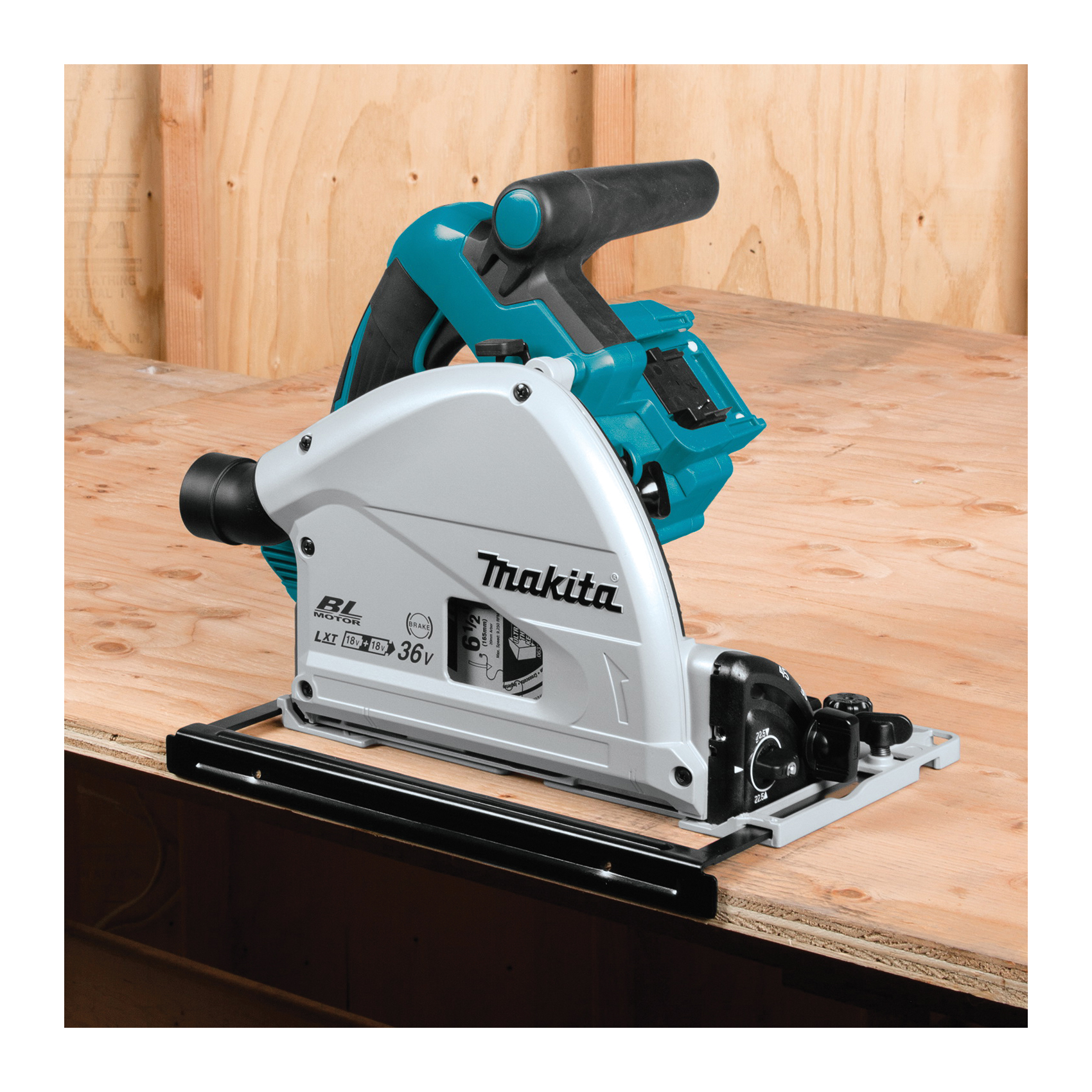

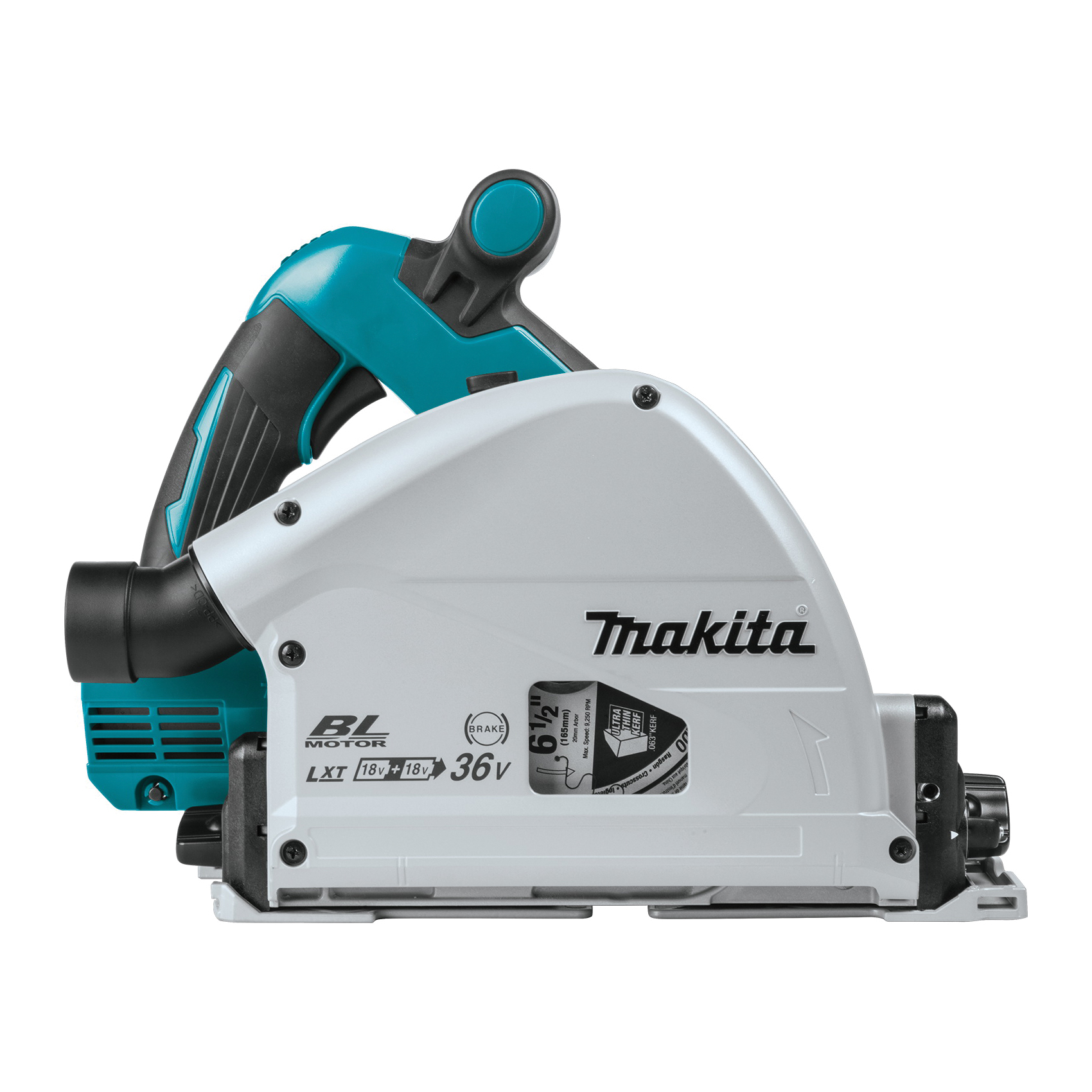

The Makita® 36V (18V X2) LXT® brushless 6-1/2 in plunge circular saw kit delivers precise and more accurate cutting when combined with an optional guide rail system. The saw and rail system work together to produce accurate cuts with minimal tear out. The saw combines a powerful Makita® built brushless motor powered by two 18V LXT® batteries with Automatic Speed Change™ technology, which adjusts cutting speed and torque during the cut for optimum performance. The saw has a variable speed control dial (2500 to 6300 rpm), with soft start and an electric brake for added convenience. It has a large 2-3/16 in cutting capacity at 90 deg, with a bevel capability of -1 to 48 deg and positive stops at 22.5 and 45 deg. When used with a rail system the plunge circular saw is a more portable option to a table saw for select applications and is ideal for use on the jobsite or in a workshop. It's part of Makita® expanding 18 V lithium-ion system, the world's largest cordless tool system powered by 18 V lithium-ion slide-style batteries. Makita® 18 V lithium-ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita® created Star Protection Computer Controls™. Star Protection is communication technology that allows the star protection equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over discharging and overheating. For increased versatility, the tool can also be powered by Makita® 18V LXT® and compact lithium-ion batteries with the star symbol on the battery indicating star protection inside.
Makita® 18V LXT® Plunge Circular Saw, Tool/Kit: Tool, Tool Type: Cordless, 6-1/2 in Blade Diameter, Carbide Blade, 1-9/16 in, 2-3/16 in Cutting Depth, 20 mm Arbor, 45/90 deg Cutting Angle, 36 V, Lithium-Ion Battery, 2500 to 6300 rpm, Soft Grip Handle, Rubber Handle, 13-5/8 in Overall Length
| Arbor Size | : | 20 mm |
| Battery Type | : | Lithium-Ion |
| Blade Diameter | : | 6-1/2 in |
| Blade Material | : | Carbide |
| Cutting Angle | : | 45/90 deg |
| Cutting Depth | : | 1-9/16 in, 2-3/16 in |
| Handle Material | : | Rubber |
| Handle Type | : | Soft Grip |
| Overall Length | : | 13-5/8 in |
| Speed Rating | : | 2500 to 6300 rpm |
| Tool Type | : | Cordless |
| Tool/Kit | : | Tool |
| Voltage Rating | : | 36 V |
- Powered by two LXT® batteries, X2 LXT® technology delivers more power, speed and run time without the hassles of a cord
- Makita® built electronically controlled BL™ brushless motor delivers 6300 rpm for maximum performance and 50% longer run time per charge
- Automatic Speed Change™ technology adjusts cutting speed and torque during cut for optimum performance
- Variable speed control dial (2500 to 6300 rpm) for optimum performance in a variety of materials
- Close to the wall cutting 11/16 in for expanded cutting applications
- Bevel capability (-1 to 48 deg) with positive stops at 22.5 and 45 deg
- Electronic speed control maintains constant speed under load for smooth cutting
- Soft start feature for smooth start ups
- Easy to set depth adjustment with large scale
- Smooth and convenient plunge release lever for operator comfort
- Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
- On board hex wrench for fast and easy blade changes
- Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation
- Built-in depth stop allows a preliminary first cut of 5/64 to 7/64 in to be performed prior to cutting through the entire material for clean and splinter-free cutting
- Rubberized soft grip handle provides increased comfort on the job
- Large 1-7/16 in rear dust port directs material away from the operator and easily connects to a vacuum system
- Optional guide rail system interacts with the saw base to provide smooth, perfect, dead-on straight or bevel cutting
- Slide lever on saw base designed to engage the optional guide rail when bevel cutting for stability
- Electric brake for maximum productivity
- Compact and ergonomic design at 13-5/8 in L weighs only 11.2 lb with batteries for reduced operator fatigue
