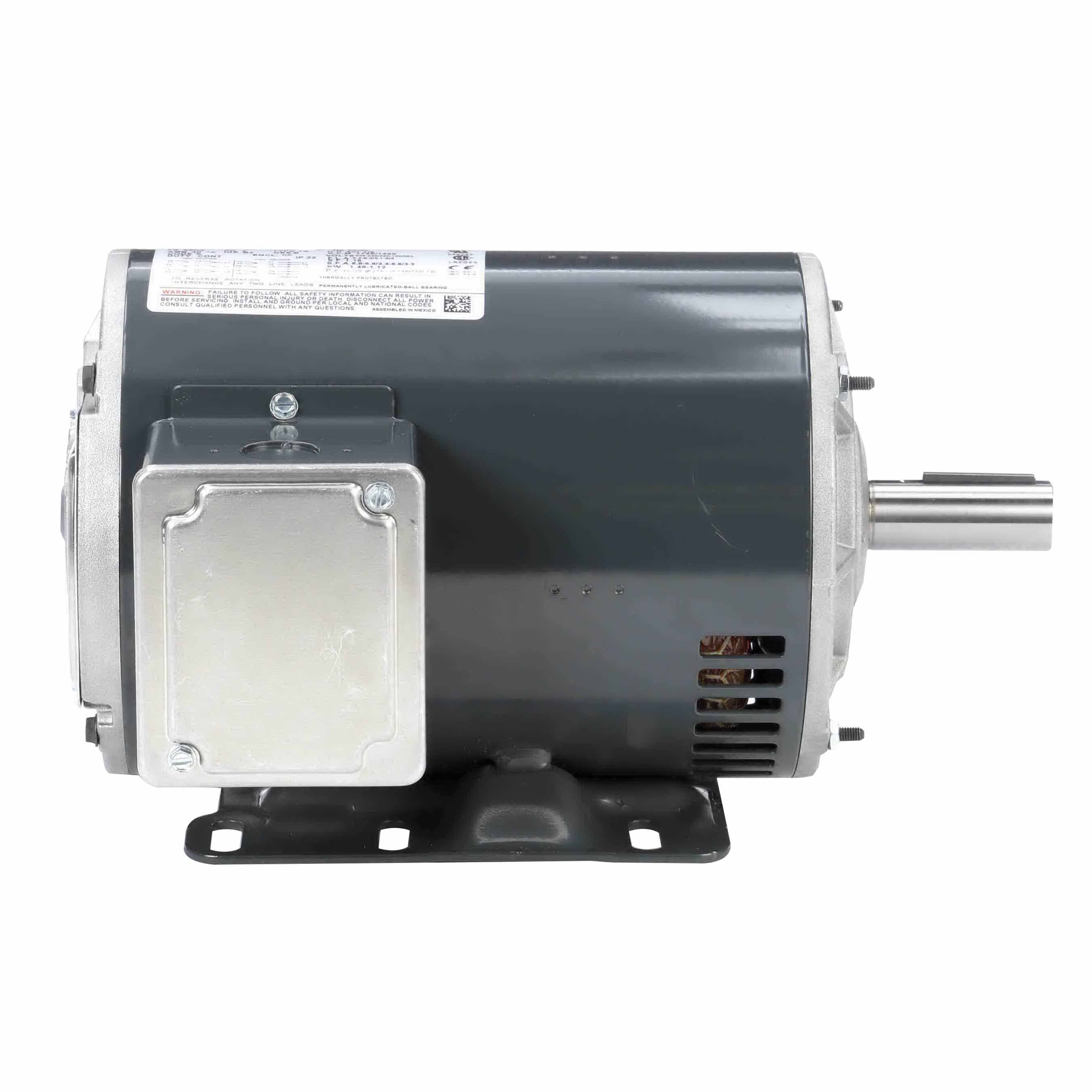

Marathon® Motor, 056T17D3303 Model, 208 - 230/460 VAC, 6.2 - 6.2/3.1 A, 2 hp, 1725 rev/min Speed, 3 -Phase, 60 Hz, Drip Proof Motor Enclosure, 56HZ Frame, 2.28 in L x 0.63 in Dia Shaft, CCW Rotation, 1 -Speed, 0.815 Efficiency, Ball Bearing, Rigid Base Mounting, Belt Drive, Continuous Duty, Insulation Class: B, Service Factor: 1.15, Rolled Steel, 40 deg C Ambient, 11.99 in L x 6.48 in Dia
| Amperage Rating | : | 6.2 - 6.2/3.1 A |
| Bearing Type | : | Ball |
| Dimensions | : | 11.99 in L x 6.48 in Dia |
| Drive Type | : | Belt |
| Duty Type | : | Continuous |
| Efficiency | : | 0.815 |
| Frame Size | : | 56HZ |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 2 hp |
| Insulation Class | : | B |
| Material | : | Rolled Steel |
| Model | : | 056T17D3303 |
| Motor Enclosure Type | : | Drip Proof |
| Mounting Type | : | Rigid Base |
| Number of Speeds | : | 1 |
| Phase | : | 3 |
| Rotation Type | : | CCW |
| Service Factor | : | 1.15 |
| Shaft Size | : | 2.28 in L x 0.63 in Dia |
| Speed Rating | : | 1725 rev/min |
| Temperature Rating | : | 40 deg C Ambient |
| Voltage Rating | : | 208 - 230/460 VAC |
- Automatic thermal overload protection
Full Engineering Drawing
