Marathon® X001 ERP_014814
  1. pin-int

Marathon® X001 ERP_014814

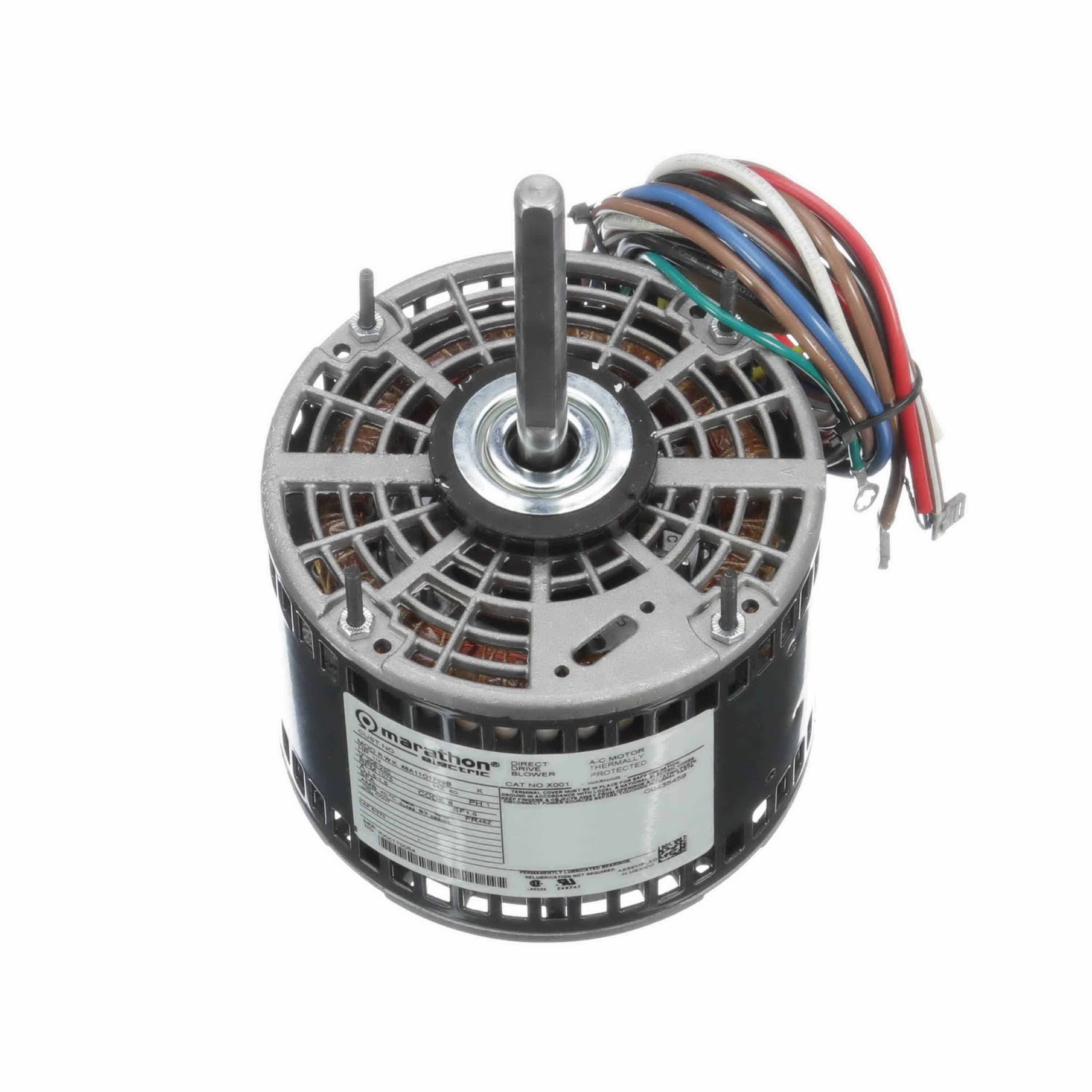

Marathon® X001 Blower Motor, 208 - 230 VAC, 1.5 A, 1/4 hp, 1075 rev/min Speed, 0.19 kW, 1 -Phase, 60 Hz, 48Y Frame

  • Manufacturer: Regal Beloit Corporation
  • Brand Name: Marathon®
  • Part Number: ERP_014814
  • MPN: X001
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

Marathon® Blower Motor, 208 - 230 VAC, 1.5 A, 1/4 hp, 1075 rev/min Speed, 0.19 kW, 1 -Phase, 60 Hz, Open Air Over Motor Enclosure, 48Y Frame, 4.06 in L x 1/2 in Dia Shaft, CCW Rotation, 3 -Speed, Ball Bearing, Resilient Ring-Extended Stud Mounting, Direct Drive, Insulation Class: B, 6 -Pole, Service Factor: 1, Rolled Steel, 40 deg C Ambient, 9-1/2 in L x 5.66 in Dia

Amperage Rating      :      1.5 A
Bearing Type      :      Ball
Dimensions      :      9-1/2 in L x 5.66 in Dia
Drive Type      :      Direct
Frame Size      :      48Y
Frequency Rating      :      60 Hz
HP Rating      :      1/4 hp
Insulation Class      :      B
Material      :      Rolled Steel
Motor Enclosure Type      :      Open Air Over
Mounting Type      :      Resilient Ring-Extended Stud
Number of Poles      :      6
Number of Speeds      :      3
Phase      :      1
Power Rating      :      0.19 kW
Rotation Type      :      CCW
Service Factor      :      1
Shaft Size      :      4.06 in L x 1/2 in Dia
Speed Rating      :      1075 rev/min
Temperature Rating      :      40 deg C Ambient
Voltage Rating      :      208 - 230 VAC
  • Open frame and brackets
  • Grommeted lead exit, weather-resistant reversing plug
  • 2-1/4 in resilient rings mounting
  • 2-1/2 in adapter rings supplied
  • Extended thru bolts on shaft end, 30 in long leads
  • Continuous-duty
  • Automatic reset thermal protection
