Moen® T4111WR PHCP_531210
  1. pin-int

Moen® T4111WR PHCP_531210

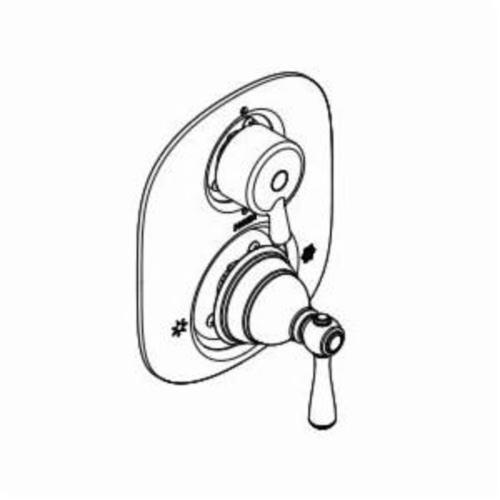

Moen® T4111WR Kingsley® Moentrol® Transfer Valve Trim, 8-3/8 in, Lever Handle, Wrought Iron, Domestic

  • Manufacturer: MOEN
  • Brand Name: Moen®
  • Part Number: PHCP_531210
  • MPN: T4111WR
  • UPC: 026508115619
  • Min. Order Qty: 10
  • Qty. Interval: 1
    • Sign In for Availability

The classic look of Kingsley offers enthusiasts of traditional style the opportunity to make their rooms stand out. Each understated detail comes together to create an enduring style.

Moen® Transfer Valve Trim, Collection: Kingsley® Moentrol®, 1/2 in IPS Inlet Connection, 1/2 in Copper Outlet, Wall Mount, 8-3/8 in Trim, Lever Handle, Metal, Wrought Iron, For Use With: Model 3330 Transfer Valve, Domestic

Collection      :      Kingsley® Moentrol®
Domestic/Import      :      Domestic
Finish/Color      :      Wrought Iron
Handle Type      :      Lever
Includes      :      Adjustable Temperature Limit Stop, Check Stops and Volume Control
Inlet Connection      :      1/2 in IPS
Material      :      Metal
Mounting Type      :      Wall
Outlet Connection      :      1/2 in Copper
Suitable For Use With      :      Model 3330 Transfer Valve
Trim Size      :      8-3/8 in
Warranty      :      Lifetime Limited Against Leaks, Drips And Finish Defects to The Original Consumer Purchaser, 5 Year If Used In Commercial Installations
  • Lever handles make it easy to adjust the water
  • Shower head sold separately
  • Built on the Moen M-Pact common valve system, allowing you to update the faucet style in the future without replacing any plumbing
  • 4-ports/2 outlets
  • Pull-on/push-off operation of temperature and volume, rotational control of transfer valve
  • Temperature operates through an 180 deg arc of handle travel (full cold to full hot)
  • Adjustable temperature limit stop to control maximum hot water temperature
  • 180 deg rotation of transfer valve handle with stops
  • Pressure balancing mechanism maintains selected discharge temperature to +/-3.6 deg F
  • Antique inspired wrought iron finish gives your space a highly traditional feel

Standards/Approvals: ADA Compliant, ASME A112.18.1, CSA B125.1

  • pdfData/Spec Sheet https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Moen_T4111WR_Data_Sheet.pdf
  • pdfInstruction/Installation Sheet https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Moen_T4111WR_Installation_Instruction.pdf
