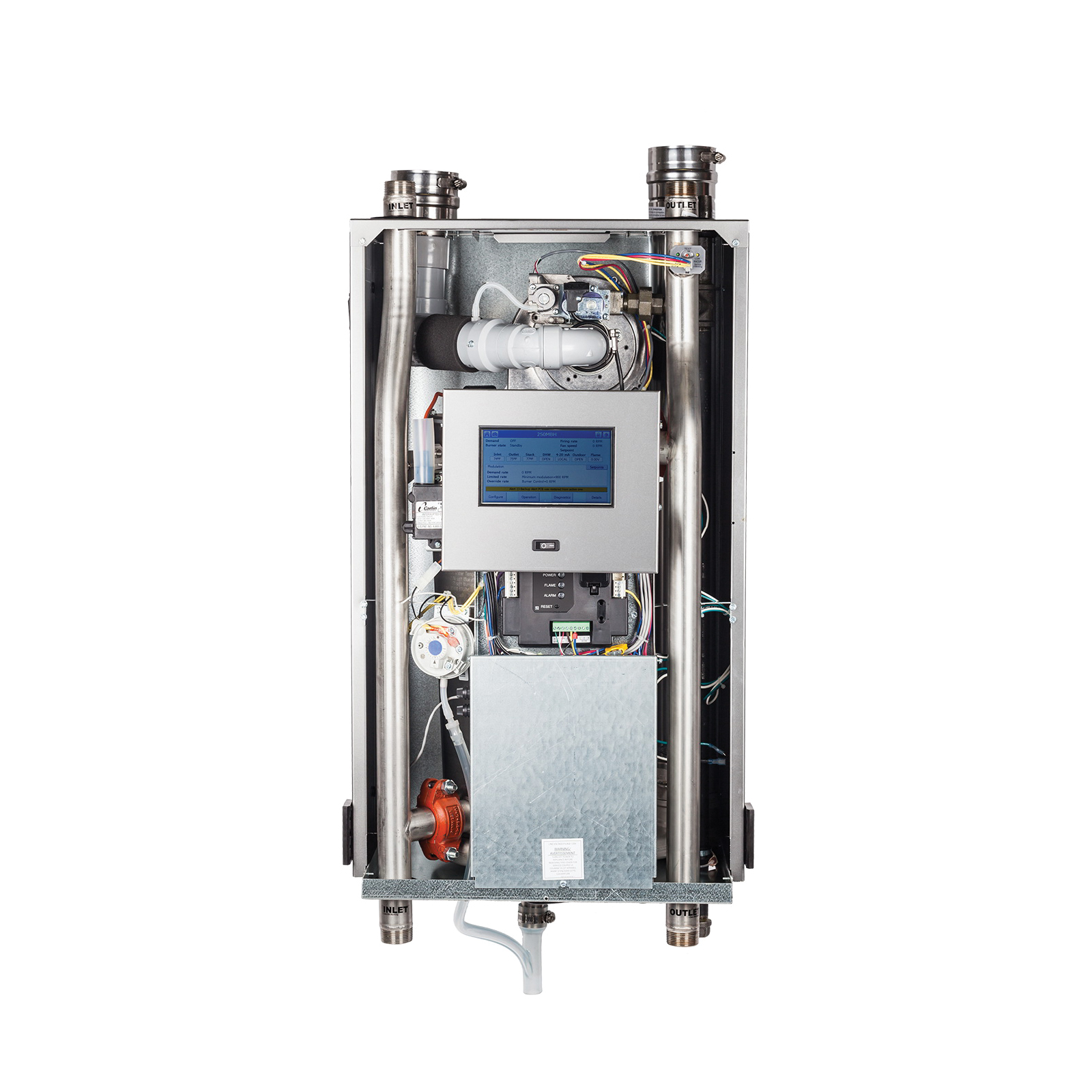

The TFT is the top quality choice for both residential or light commercial applications. The high-performance stainless steel down-fired fire tube heat exchanger and the top and bottom stainless steel piping connections, offer supreme durability and flexibility of installation. The TFT reigns supreme with its unique mix of outstanding performances and legendary reliability.
NTI TFT Condensing Boiler, 120 VAC, 12 A, 60 Hz Frequency, 1 Phase, 95 % AFUE, 17 to 85 mbh, 78 mbh Capacity, 30 psi Pressure, MNPT Connection, Natural Gas Fuel, Direct Vent, Modulating Burner, 2 in Chimney/Breeching/Vent, 78 mbh DOE Heating, 2 in Flue Outlet, Direct Spark Ignition, 68 mbh Net IBR, Floor, Wall Mounting, Stainless Steel, 33-3/8 in H x 19-3/4 in W x 14-3/4 in D Dimensions
| AFUE Rating | : | 95 % |
| Amperage Rating | : | 12 A |
| BTU Rating | : | 17 to 85 mbh |
| Burner Type | : | Modulating |
| Capacity | : | 78 mbh |
| Chimney/Breeching/Vent Size | : | 2 in |
| Connection Type | : | MNPT |
| DOE Heating Capacity | : | 78 mbh |
| Dimensions | : | 33-3/8 in H x 19-3/4 in W x 14-3/4 in D |
| Flue Outlet Size | : | 2 in |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Ignition Type | : | Direct Spark |
| Material | : | Stainless Steel |
| Mounting Type | : | Floor, Wall |
| Net IBR Rating | : | 68 mbh |
| Phase | : | 1 |
| Pressure Rating | : | 30 psi |
| Vent Type | : | Direct |
| Voltage Rating | : | 120 VAC |
- Touch screen intuitive display
- High-performance fire tube stainless steel heat exchanger
- Integrated low water cut-off
- Stainless steel internal piping and venting
- Top and bottom water connections
- Advanced cascade settings
- Vents in PVC, CPVC or poly propylene
- Field conversion from natural gas (factory) to propane
- Modulating burner, 5:1 turndown
- Zero clearance to combustibles
