Owens Corning 350106 ERP_010982

Owens Corning VaporWick® 350106 Pipe Insulation, 2-1/2 in Nominal, 3 ft L, 2 in Thick Wall, Fiberglass, Black/White

  • Manufacturer: Owens Corning
  • Brand Name: Owens Corning
  • Part Number: ERP_010982
  • MPN: 350106
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Sign In for Availability

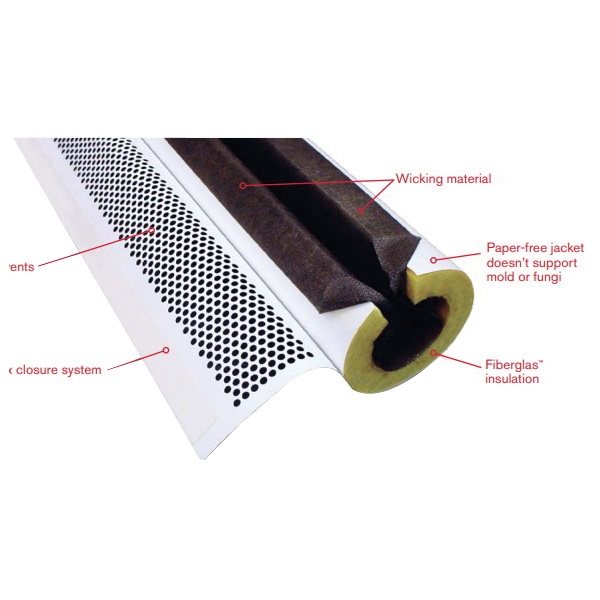

Owens Corning VaporWick® pipe insulation is an innovative insulation product designed specifically for below ambient temperature applications in severe hot/humid operating environments. The heart of the system is a wick material that transports condensed water to the outside of the system for evaporation to the atmosphere. The wick keeps the fiberglass insulation dry, preventing dripping and allowing the insulation to perform effectively over the life of the project. VaporWick® pipe insulation's one-piece, 36 in (914 mm) long molded sections come in standard sizes and are composed of heavy density fiberglass insulation with an organic binder. The synthetic wicking material is factory installed on the inner surface of the assembly. The sections are opened, placed over the pipe, closed and secured with a pressure sensitive adhesive closure. The insulation is factory jacketed with a resilient, tough, soil resistant polymer facing that matches standard PVC fitting covers. Auxiliary items include rolls of wick material for wrapping elbows and valves, VaporWick® pipe insulation evaporation skirt (hula skirt) for verticals and matching butt joint sealing tape for system closure.

Owens Corning VaporWick® Pipe Insulation, Nominal Size: 2-1/2 in, 3 ft Length, 2 in Wall Thickness, 36 linear ft Coverage Area, Thermal Conductivity: 0.22 to 0.29 Btu-in/hr-sq-ft-deg F, R Factor: 15.9, Load Factor: 0.417 %, K-Value: 0.13, 32 to 220 deg F, Fiberglass, Black/White

Color      :      Black/White
Coverage Area      :      36 linear ft
K-Value      :      0.13
Length      :      3 ft
Load Factor      :      0.417 %
Material      :      Fiberglass
Nominal Size      :      2-1/2 in
R Factor      :      15.9
Temperature Rating      :      32 to 220 deg F
Thermal Conductivity      :      0.22 to 0.29 Btu-in/hr-sq-ft-deg F
Wall Thickness      :      2 in
  • Keeps insulation dry by incorporating a specially designed wicking material that absorbs condensed water from the pipe surface and wicks it to the outside, keeping the insulation dry and minimizing any loss in insulating capability
  • This prevents dripping and the associated staining of ceiling tiles and damage to the building contents
  • VaporWick® pipe insulation is rated for operating temperatures which range from 32 to 220 deg F, making it ideal for dual temperature installations
  • Flame spread rating of 25 or less and smoke development rating of 50 or less means that VaporWick® pipe insulation will be granted immediate building code approval for use in air plenums and other critical locations
  • Low thermal conductivity contributes to lower operating costs at a favorable installed cost/performance ratio
  • Self-drying feature allows product to be installed on wet pipes
  • Systems do not need to be shut down during installation of the VaporWick® system
  • Positive closure is fast, neat and fool-proof
  • VaporWick® pipe insulation provides no sustenance for mold to propagate and meets the standard ASTM test for fungi-resistance
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Owens_Corning_VW_5x1_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/S-9Q8zWb0xk
