Juno® UPLED09-NS-BL Juno_Lighting_0000864
  1. pin-int

Juno® UPLED09-NS-BL Juno_Lighting_0000864

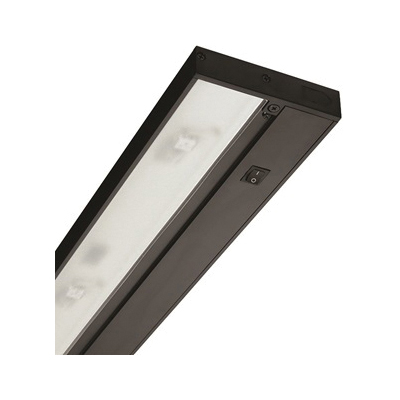

Juno® Pro Series Undercabinet Lighting Without Switch, 2 LED Lamp, 3.2 W Fixture, 120 V, Black Housing

  • Manufacturer: Acuity Brands
  • Brand Name: Juno®
  • Part Number: Juno_Lighting_0000864
  • MPN: UPLED09-NS-BL
  • UPC: 66120939409
  • Min. Order Qty: 10
  • Qty. Interval: 1
    • Sign In for Availability

Juno® Pro-Series LED duplicates the light level of halogen undercabinet lighting using just 1/6 the energy. At four hours per day you can expect over 34 Years of maintenance-free operation. Pro-Series LED fixtures feature fast, trouble-free installation and utilize warm-white 3000K LEDs tightly binned within a 2-step MacAdam Ellipse for industry-leading color consistency. Pro-Series LED 22 in and 30 in fixtures are available with Passive Infrared (PIR) Occupancy Sensor, field set for 30 sec to 30 min.

Juno® Undercabinet Lighting, Series: Pro Series, 120 V, 3.2 W Fixture, 0.03 A, LED Lamp, 1 W Lamp, 2 Lamps, 50000 hr Average Life, 3000 K Color, 80 CRI, Integral Electronic Ballast, Tempered Glass Lens, 150 Lumens, Surface Mount, Extruded Aluminum Housing, Black Housing, 9 in L x 4-1/2 in W x 1 in H

Amperage Rating      :      0.03 A
Average Life      :      50000 hr
Ballast Type      :      Integral Electronic
Color Rendering Index (CRI)      :      80 CRI
Color Temperature      :      3000 K
Dimensions      :      9 in L x 4-1/2 in W x 1 in H
Fixture Wattage      :      3.2 W
Housing Finish      :      Black
Housing Material      :      Extruded Aluminum
Lamp Type      :      LED
Lamp Wattage      :      1 W
Lens Type      :      Tempered Glass
Lumens      :      150 Lumens
Mounting Type      :      Surface
Number of Lamps      :      2
Series      :      Pro Series
Voltage Rating      :      120 V
  • Utilizes warm-white 3000K LEDs tightly binned to within a 2-step MacAdam ellipse for superb color consistency
  • Light output equivalent to pro series halogen & pro-series xenon fixtures
  • Integral electronic 120 V constant current driver is accessible without having to remove fixture
  • Dimmable with most incandescent, magnetic low voltage or electronic low voltage wall box dimmers
  • Slim 1 in profile
  • Modular plug-together design
  • Clear prismatic tempered glass lens for maximum light transmission

Standards/Approvals: cULus Listed

Application: Healthcare, Hospitality, Offices and Banks, Religious, Residential and Retail

  • pdfBrochure https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_UFL46_SL_Brochure.pdf
  • pdfInstallation Instructions https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_UPLED14_BL_CP6_Installation_Instructions_Sheet.pdf
  • pdfSpecification Sheet https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_UPLED14_BL_CP6_Datasheet.pdf
