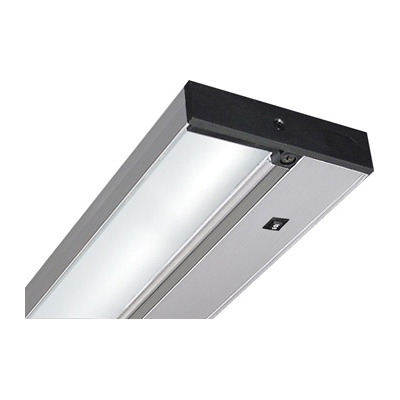

Juno® ULH109 SL IDW_8470535

The Juno® Pro-Series halogen modular fixture series with integral electronic transformer operates 12 V halogen lamps for optimal color rendering with maximum light output and lamp life. The efficient operation of low-voltage lamps, along with a unique housing/reflector system, reduces mounting surface temperatures far below typical halogen undercabinet fixtures. They are designed for fast, permanent installation, mounting either flush to the rear backsplash or to the front lip of cabinetry.

Juno® Undercabinet Lighting, Series: Pro Series, 12 V, 20 W Fixture, 0.17 A, Halogen Lamp, 20 W Lamp, Bi-Pin Lamp Base, 1 Lamps, 6000 hr Average Life, Integral Electronic Ballast, Tempered Glass Lens, Extruded Aluminum Housing, Brushed Silver Housing, 9 in L x 4-1/2 in W x 1 in H

• 20 W, 12 V halogen bi-pin lamps supplied with fixture
• Projected 6000 hr life based on actual operating voltage in fixture
• Integral electronic 120 to 12 V step down transformer is accessible for maintenance without having to remove fixture
• Specular aluminum reflector behind each lamp
• Clear prismatic tempered glass lens for maximum light transmission
• Reverse-angled to minimize perceived brightness
• Captive lens has hinged design for tool-less relamping
• Spring loaded retention bar prevents lens from accidently being bumped loose
• Convenient integral High/Low/OFF rocker switch
• For best results use dimmer specifically designed for use with electronic low voltage transformers
• 0.99 power factor

Standards/Approvals: UL Listed

Application: Healthcare, Hospitality, Offices and Banks, Religious, Residential and Retail

• Brochure https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_UFL46_SL_Brochure.pdf
• Installation Instructions https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_ULH214_BZ_Installation_Instructions_Sheet.pdf
• Specification Sheet https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_ULH214_BZ_Datasheet.pdf
