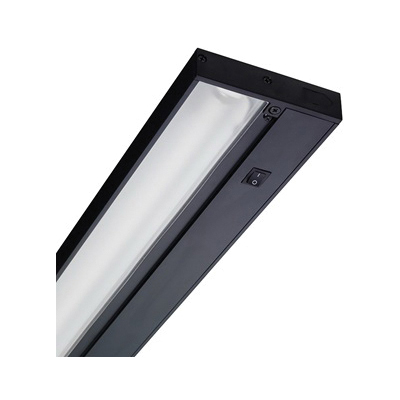

Juno® UPF22 BL IDW_11115454

Juno® Pro-Series Fluorescent undercabinet fixtures offer high-quality construction and efficient illumination in an easily concealed, low-profile design. These T5 fluorescent luminaires provide energy efficiency, long lamp life, and cool operation, making them an ideal solution for undercabinet, under-shelf, and task lighting. Pro-Series Fluorescent 22, 34 and 46 in fixtures are available with Passive Infrared (PIR) Occupancy Sensor, field set for 30 sec to 30 min.

Juno® Undercabinet Lighting, Series: Pro Series, 120 V, 15.3 W Fixture, 0.23 A, T5 Tri-Phosphor Fluorescent Lamp, 15.3 W Lamp, 1 Lamps, 10000 hr Average Life, 3000 K Color, Instant Start Electronic Ballast, Tempered Glass Lens, Flush Mount, Extruded Aluminum Housing, Black Housing, 22 in L x 4-1/2 in W x 1 in H

• Latest generation of high-efficiency (HE), high color rendering 3000 K T5 tri-phosphor fluorescent lamps
• State of the art 120 V electronic ballast instantly starts lamp and operates without flicker or hum
• Extruded non-yellowing clear UV/impact resistant acrylic lens
• Available with convenient ON/OFF rocker switch
• 22 in, 34 in and 46 in are available with passive infrared (PIR) occupancy sensor
• The PIR sensor has a field adjustable time delay that can be set from 30 sec to 30 min
• All additional luminaires connected to the luminaire with occupancy sensor will be controlled by the single sensor
• 0.53 power factor

Standards/Approvals: UL/cUL Listed

Application: Healthcare, Hospitality, Offices and Banks, Religious, Residential and Retail

• Brochure https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_UFL46_SL_Brochure.pdf
• Installation Instructions https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_UPF12_SL_Installation_Instructions_Sheet.pdf
• Specification Sheet https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_UPF12_SL_Datasheet.pdf
