Juno® UK3STL-3K-BL Juno_Lighting_0000206
  1. pin-int

Juno® UK3STL-3K-BL Juno_Lighting_0000206

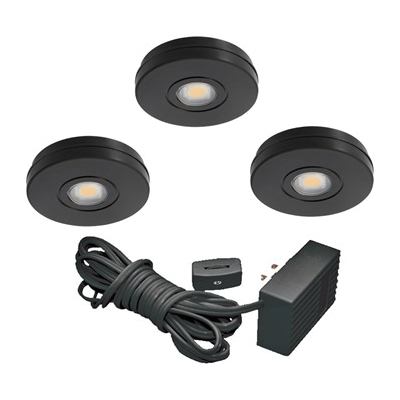

Juno® UK3STL-3K-BL Solo-Task 3-Fixture Kit, LED Lamp, 12.4 W Fixture, 120 V, Black Housing

  • Manufacturer: Acuity Brands
  • Brand Name: Juno®
  • Part Number: Juno_Lighting_0000206
  • MPN: UK3STL-3K-BL
  • UPC: 66120931465
  • Min. Order Qty: 10
  • Qty. Interval: 1
    • Sign In for Availability

Juno® Solo-Task surface mount LED fixture kits include (3) surface mount luminaires, (1) plug-in driver/transformer with field installed switch, 10 ft of wire, and (5) adhesive-backed wire clips.

Juno® 3-Fixture Kit, Solo-Task, 120 V, 12.4 W Fixture, 0.13 A, LED Lamp, 4.3 W Lamp, 50000 hr Average Life, 3000 K Color, 80 CRI, High Transmission Diffusing Lens, 872 Lumens, Surface Mount, Die-Cast Aluminum Housing, Black Housing, 2-1/2 in Dia x 9/16 in D

Amperage Rating      :      0.13 A
Average Life      :      50000 hr
Color Rendering Index (CRI)      :      80 CRI
Color Temperature      :      3000 K
Dimensions      :      2-1/2 in Dia x 9/16 in D
Fixture Wattage      :      12.4 W
Housing Finish      :      Black
Housing Material      :      Die-Cast Aluminum
Lamp Type      :      LED
Lamp Wattage      :      4.3 W
Lens Type      :      High Transmission Diffusing
Lumens      :      872 Lumens
Mounting Type      :      Surface
Type      :      Solo-Task
Voltage Rating      :      120 V
  • 3000K white phosphor array provides outstanding performance, color quality/consistency and reliability
  • Daisy-chain capable utilizing screw-type terminal blocks
  • Accepts 14 to 18 AWG wire
  • Rated at 50000 hr at 70% lumen maintenance
  • High transmission diffusing lens produces smooth, uniform aperture luminance
  • Onboard luminaire LED driver operates at less than 5 W input at 12 VAC
  • Requires Class 2, 120 V to 12 VAC electronic or magnetic driver/transformer for operation
  • Juno's TL602E and TL548U electronic drivers/transformers, and TL576 magnetic driver/transformer are designed specifically for use with these luminaires
  • May be dimmed with dimmers tested and qualified by Juno for use with TL602E and TL576
  • Color temperature remains constant over dimming range
  • 70.3 LPW efficacy

Standards/Approvals: UL/cUL Listed, RoHS Compliant

Application: Healthcare, Hospitality, Offices and Banks, Religious, Residential and Retail

  • pdfBrochure https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_UK3STL_3K_BL_Brochure.pdf
  • pdfInstallation Instructions https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_UK3STL_3K_BL_Installation_Instructions_Sheet.pdf
  • pdfSpecification Sheet https://b2b-sales.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_UK3STL_3K_BL_Datasheet.pdf
