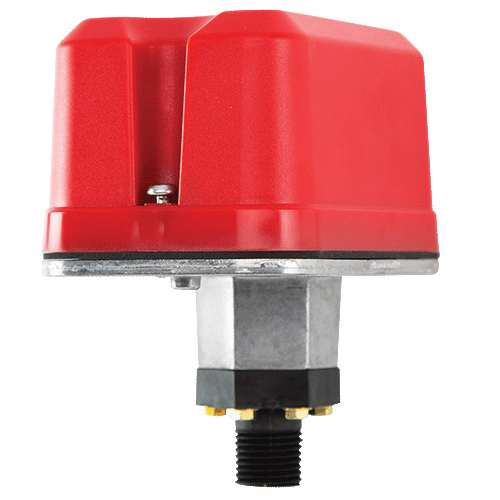

System Sensor® High/Low Pressure Supervisory Switch, 300 lb/sq-in Operating, 10 - 100 lb/sq-in Adjustment, 3 lb/sq-in at 10 lb/sq-in and 6 lb/sq-in at 100 psid Pressure, 10 A, 1/2 hp at 125/250 VAC, 2.5 A at 6/12/24 VDC Contact, 1/2 in MNPT, NEMA 4, 4x (UL), IP54 Enclosure, -40 to 160 deg F Indoor and Outdoor, 4-1/4 in L x 3.325 in W x 5.12 in H
| Contact Rating | : | 10 A, 1/2 hp at 125/250 VAC, 2.5 A at 6/12/24 VDC |
| Dimensions | : | 4-1/4 in L x 3.325 in W x 5.12 in H |
| Enclosure Type | : | NEMA 4, 4x (UL), IP54 |
| Pressure Connection | : | 1/2 in MNPT |
| Pressure Rating | : | 300 lb/sq-in Operating, 10 - 100 lb/sq-in Adjustment, 3 lb/sq-in at 10 lb/sq-in and 6 lb/sq-in at 100 psid |
| Temperature Rating | : | -40 to 160 deg F Indoor and Outdoor |
- Includes (2) SPDT switch
- Sensitivity adjustment wheel, no special tools required
- Reinforced diaphragm resists pressure spikes
- (2) conduit entrances
- EPS40-2 operates at increasing pressure at 50 lb/sq-in and decreasing pressure at 30 lb/sq-in factory setting
- Automatic sprinkler: NFPA 13, 1 or 2 family dwelling: NFPA 13D residential occupancies upto 4 stories: NFPA 13R national fire alarm code: NFPA 72
- 3-year warranty
