Taco Comfort Solutions® 006-ST4 ERP_065499

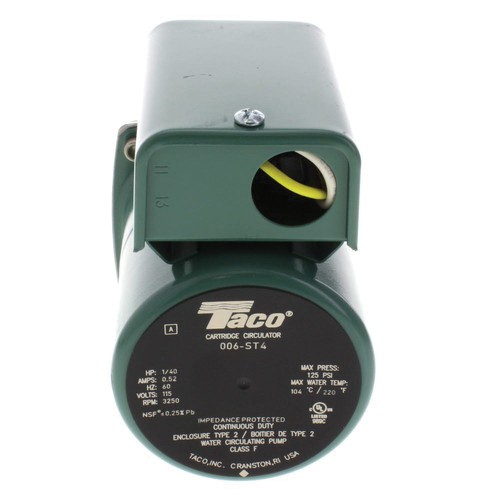

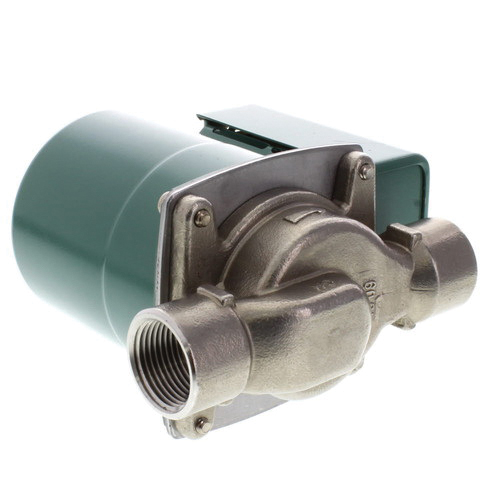

Taco Comfort Solutions® 006-ST4 Circulator Pump, 115 VAC, 0.52 A, 1/40 hp, 11 gal/min
- Manufacturer: TACO INC
- Brand Name: Taco Comfort Solutions®
- Part Number: ERP_065499
- MPN: 006-ST4
- UPC: 687752589085
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
Taco Comfort Solutions® Circulator Pump, 006 Model, 115 VAC, 0.52 A, 60 Hz, 1/40 hp, 3250 rev/min Speed, 11 gal/min, 1 -Phase, 3/4 in Connection, NPT Connection, 125 lbf/sq-in Pressure, 9 ft Max Head, In-Line Mounting, Non-Metallic Impeller, Stainless Steel Case Body, 220 deg F, 5-5/8 in W x 3-15/16 in D
| Amperage Rating | : | 0.52 A |
| Body Material | : | Stainless Steel Case |
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Dimensions | : | 5-5/8 in W x 3-15/16 in D |
| Flow Rate | : | 11 gal/min |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/40 hp |
| Impeller Material | : | Non-Metallic |
| Maximum Head | : | 9 ft |
| Model | : | 006 |
| Mounting Type | : | In-Line |
| Phase | : | 1 |
| Pressure Rating | : | 125 lbf/sq-in |
| Speed Rating | : | 3250 rev/min |
| Temperature Rating | : | 220 deg F |
| Voltage Rating | : | 115 VAC |
- Standard high capacity output and compact design
- Quiet, efficient operation
- Direct drive, low power consumption
- Unique replaceable cartridge design-field serviceable
- Self lubricating, no mechanical seal
- Unmatched reliability, maintenance free
- Unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator
- Compact, low power consumption design is ideal for high efficiency jobs
- With integral flow check and without flanges
- For indoor use only
