Tamas Hydronic Systems T-LO-TP-0010 ERP_082408

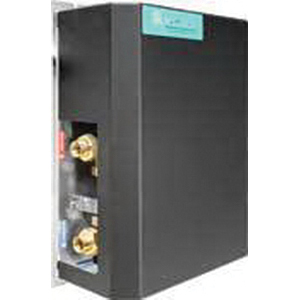

Tamas Hydronic Systems T-LO-TP-0010 Low Temperature Panel, 0 to 17 gpm, 115 V, 203 deg F
- Manufacturer: Tamas Hydronic Systems Inc
- Brand Name: Tamas Hydronic Systems
- Part Number: ERP_082408
- MPN: T-LO-TP-0010
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
The Tamas low temperature hydronic panel (T-LO-TP-0010,0020,0030) is designed for distributing hydronic heat for radiant floor heating systems. The panel can be utilized for floor warming and area heating such as bathrooms, basements, kitchens, sun rooms and tiled floors. The panel uses a microprocessor based hydronic control which receives a signal from the buildings thermostat, this provides consistent heat distribution through the system. Thermostatic mixing valves and 3-speed circulating pumps function to temper and distribute the water to the system.
Tamas Hydronic Systems Low Temperature Panel, 0 to 17 gpm Flow Rate, 115 V, 203 deg F, 45 psi, Stainless Steel, 18 in W x 13 in H x 7 in D Dimensions
| Dimensions | : | 18 in W x 13 in H x 7 in D |
| Flow Rate | : | 0 to 17 gpm |
| Material | : | Stainless Steel |
| Pressure Rating | : | 45 psi |
| Temperature Rating | : | 203 deg F |
| Voltage Rating | : | 115 V |
- Stainless steel design cost effective and attractive
- Convenient plug and play design
- Fully wired
- Galvanized steel back plate and lockable galvanized steel cover
- Plug and play design
Owner¿¿¿s/User Manual
