Tamas Hydronic Systems T-LO-TP-HX10 ERP_035933
  1. pin-int

Tamas Hydronic Systems T-LO-TP-HX10 ERP_035933

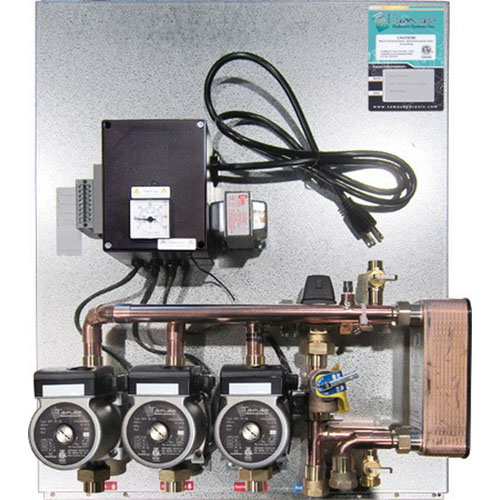

Tamas Hydronic Systems T-LO-TP-HX10 Low Temperature Isolation Panel, 0 to 17 gpm, 115 V, 203 deg F

  • Manufacturer: Tamas Hydronic Systems Inc
  • Brand Name: Tamas Hydronic Systems
  • Part Number: ERP_035933
  • MPN: T-LO-TP-HX10
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

The Tamas isolation panel is designed to be used in applications where isolation of water/glycol mixtures is needed. (or for poly B applications). When a Tamas isolation panel is connected to a hot water tank system the panel regulates the water distribution and temperature to accommodate demand.

Tamas Hydronic Systems Low Temperature Isolation Panel, 0 to 17 gpm Flow Rate, 115 V, 203 deg F, 45 psi, 18 in W x 13 in H x 7 in D Dimensions

Dimensions      :      18 in W x 13 in H x 7 in D
Flow Rate      :      0 to 17 gpm
Pressure Rating      :      45 psi
Temperature Rating      :      203 deg F
Voltage Rating      :      115 V
  • Convenient plug and play design
  • Fully wired
  • Adaptable to almost all hot water tank systems
  • Function and pressure tested
  • Trouble-free wiring
  • Quick and easy installation saves time and money
  • Compact design
  • pdfOwner¿¿¿s/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Tamas_Hydronic_Systems_T_LO_TP_HX10_Owners_User_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Tamas_Hydronic_Systems_T_LO_TP_HX10_Specification_Sheet.pdf
  • pdfTechnical Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Tamas_Hydronic_Systems_T_LO_TP_HX10_Technical_Drawing.pdf
