Testo 0563 1550 ERP_000342
  1. pin-int

Testo 0563 1550 ERP_000342

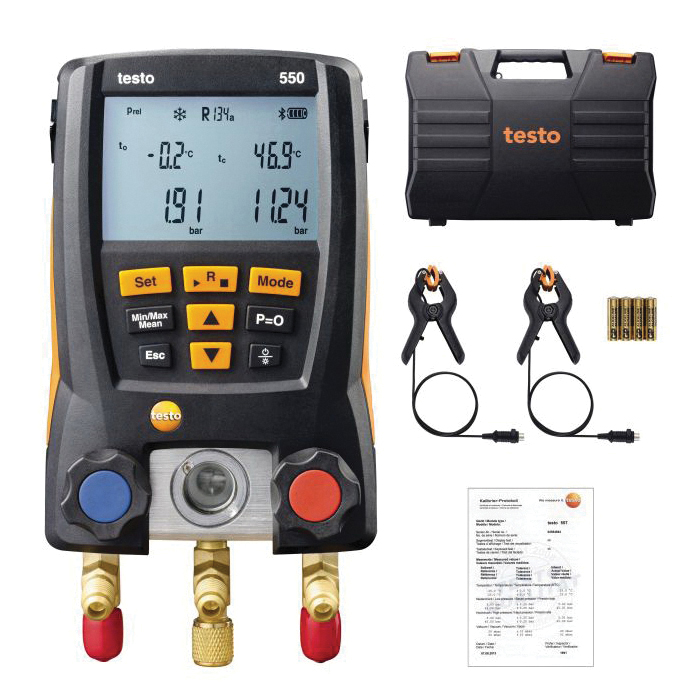

Testo 550 0563 1550 Digital Manifold Kit

  • Manufacturer: Testo
  • Brand Name: Testo
  • Part Number: ERP_000342
  • MPN: 0563 1550
  • UPC: 789164401228
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

The rugged housing of the testo 550 digital manifold includes a metal frame around the display which protects the digital manifold from impact. Now with 60 refrigerant profiles and added functionality for leak tests, the testo 550 digital manifold is versatile enough to become the tool for every job. You can view measurement data on your Smartphone or Tablet, enabling you to quickly and conveniently complete and document your job. Then, be able to finalize the documentation and send the report and invoice via email, right from the job site. The App can also be used to download new refrigerants from the Internet directly into the manifold.

Testo Digital Manifold Kit, Series: Testo 550, -4 to 122 deg F Operating, -4 to 140 deg F Storage, 8 x 4 x 2 in, Domestic

Dimensions      :      8 x 4 x 2 in
Domestic/Import      :      Domestic
Temperature Rating      :      -4 to 122 deg F Operating, -4 to 140 deg F Storage
  • Bluetooth or app integration for monitoring, report generation and sending reports and invoices via email
  • Large 2 line backlit display
  • Rugged housing with five-years warranty with registration for reliable service
  • Measures high side or low side pressures and temperatures and displays saturation and evaporation temperatures
  • 2-way valve block with three connections
  • 60 refrigerant profiles stored in the instrument
  • Simplified menu structure using ESC key
  • Automatic superheat and sub-cooling calculations
  • -58 to 302 deg F temperature, -14 to 870 lb/sq-in pressure, -14 to 0 (indication) lb/sq-in vacuum measuring range
  • +/- 0.9 deg F temperature, +/- 0.5% Fs pressure accuracy
  • 0.1 deg F temperature, 0.1 lb/sq-in pressure resolution
  • 2 x plug-in (NTC) temperature/3 x 7/16 in UNF pressure probe connection
  • 943 lb/sq-in overload rel (high pressure)
  • 250 hr approx (display light off, Bluetooth off) battery life
  • R11, R12, R123, R125, R1234yf, R1234ze, R125, R13B1, R134a, R14, R142B, R152A, R161, R22, R227, R23, R290, R32, R401A, R401B, R401C, R402A, R402B, R404A, R406A, R407A, R407B, R407C, R407D, R407F, R408A, R409A, R410A, Ra11A, R412A, R413A, R414B, R416A, R417A, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R424A, R426A, R427A, R434A, R437A, R438A, R502, R503, R507, R508A, R508B, R600, R600a, R744 (CO2), R718 refrigerants in instrument
  • With bluetooth
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Testo_0563_1550_Specification_Sheet.pdf
