Thermo 2000 COMBOU70-12 ERP_046010
  1. pin-int

Thermo 2000 COMBOU70-12 ERP_046010

Thermo 2000 ComboMax ULTRA 70 COMBOU70-12 Electric Boiler With Instantaneous Water Heater Integrated, 40944 Btu/hr BTU

  • Manufacturer: Thermo 2000 Inc
  • Brand Name: Thermo 2000
  • Part Number: ERP_046010
  • MPN: COMBOU70-12
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

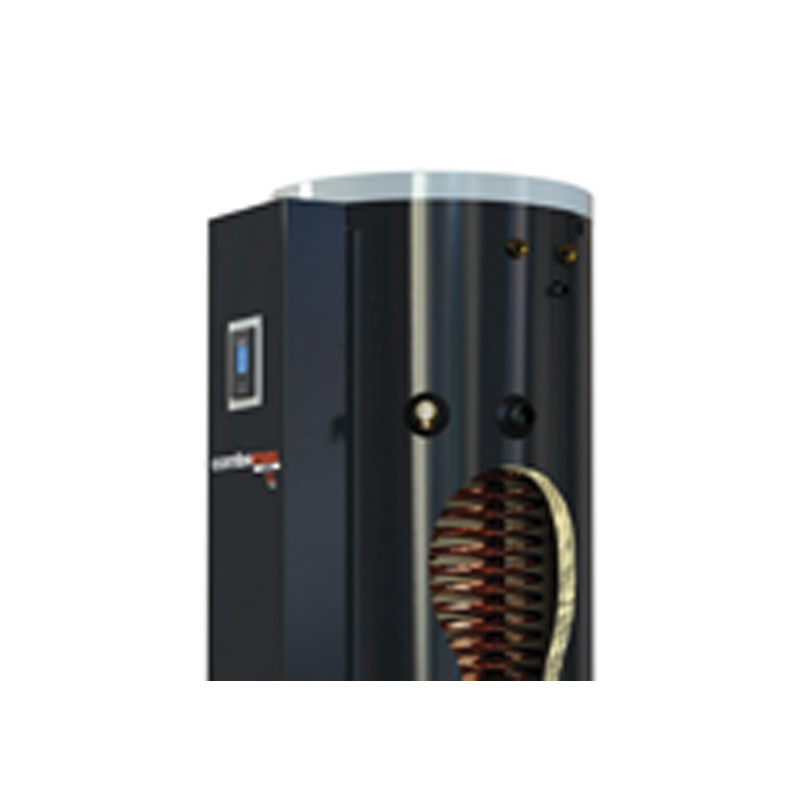

The ComboMax ULTRA is an electric boiler combined with an instantaneous water heater for residential applications. Available in two sizes, the ComboMax ULTRA offers performance levels from 4.5 to 29 kW. This 2-in-1 solution can easily heat large buildings of up to 4750 sq-ft. and provide domestic hot water in less than 7 s. Almost maintenance-free, it offers incredible energy efficiency. This unit requires less space, provides quality water and has a long lifespan. What's more, the ComboMax ULTRA is covered by a 15 years warranty. Thanks to its T2 UltraSmart™ controller, it offers optimal comfort with accurate temperature management.

Thermo 2000 Electric Boiler, 240 VAC, 43.5/50 A, 12 kW Power, 60 Hz Frequency, Phase: 1 ph, 40944 Btu/hr, 71 gal Capacity, 30/125 psi, Connection Type: MNPT, 1-1/4 in Connection, 70 A Fuse, 4, 6 AWG Wire, 2 x 6 kW Element, Number of Sections: 2, 210 deg F, 24 in Dia x 70-1/2 in H Dimensions

Amperage Rating      :      43.5/50 A
BTU Rating      :      40944 Btu/hr
Capacity      :      71 gal
Connection Size      :      1-1/4 in
Connection Type      :      MNPT
Dimensions      :      24 in Dia x 70-1/2 in H
Element Size      :      2 x 6 kW
Frequency Rating      :      60 Hz
Fuse Size      :      70 A
Number of Sections      :      2
Phase      :      1 ph
Power Rating      :      12 kW
Pressure Rating      :      30/125 psi
Temperature Rating      :      210 deg F
Voltage Rating      :      240 VAC
Wire Size      :      4, 6 AWG
  • An ASME compliant safety valve set to trigger at 30 psi on the tank side
  • An ASME compliant temperature and pressure safety valve set to 125 psi/210 deg F on the domestic hot water side
  • A temperature and pressure indicator
  • A 1/2 in automatic air valve with shut-off valve for easy replacement
  • A thermostatic mixing valve for domestic hot water
  • A pressure reducer/regulator adjusted to 12 psi
  • An ASSE1012 and CSA B64-3 certified check valve for drinking water
  • A 3/4 in drain valve to empty the tank
  • A domestic hot water exchanger drain valve
  • The tank has adjustable legs
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Thermo_2000_COMBOU70_12_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Thermo_2000_COMBOU70_12_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Thermo_2000_COMBOU70_12_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/o8dLB_wXP4s
