Valtorc S140-SS-3PC-NPT-VT52DA ERP_061350

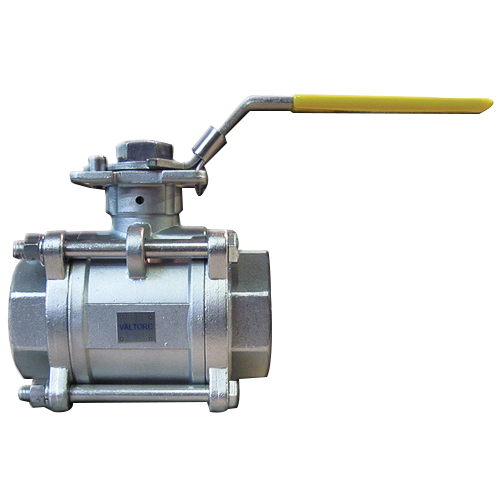

Valtorc 140 S140-SS-3PC-NPT-VT52DA Ball Valve with Actuator, 1 in Nominal, NPT Connection, 1000 lb/sq-in Pressure
- Manufacturer: Valtorc International USA
- Brand Name: Valtorc
- Part Number: ERP_061350
- MPN: S140-SS-3PC-NPT-VT52DA
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
Valtorc Ball Valve with Actuator, Series: 140, 1 in Nominal, NPT Connection, 1000 lb/sq-in Pressure, Double Acting Actuator Operator, 304 Stainless Steel Handle, Stainless Steel Stem, Stainless Steel Ball Trim, Molecularly Enhanced PTFE Packing Material, Molecularly Enhanced PTFE Seat, Viton O-Ring and Molecularly Enhanced PTFE Gasket Seal, Stainless Steel, ASTM A-351 Grade CF8M, ASTM A-276 Grade 316, -50 to 475 deg F, 3.3 in L
| Connection Type | : | NPT |
| Dimensions | : | 3.3 in L |
| Handle Material | : | 304 Stainless Steel |
| Material Standard | : | ASTM A-351 Grade CF8M, ASTM A-276 Grade 316 |
| Material | : | Stainless Steel |
| Nominal Size | : | 1 in |
| Operator Type | : | Double Acting Actuator |
| Packing Material | : | Molecularly Enhanced PTFE |
| Pressure Rating | : | 1000 lb/sq-in |
| Seal Material | : | Viton O-Ring and Molecularly Enhanced PTFE Gasket |
| Seat Material | : | Molecularly Enhanced PTFE |
| Stem Material | : | Stainless Steel |
| Temperature Rating | : | -50 to 475 deg F |
| Trim Material | : | Stainless Steel Ball |
- The bubble-tight 140 is a full port valve which allows for free flow without compromise
- The threaded connection ends offer easy installation and repair of the valve while in a production line with little down time
- For manual mode, the Series 140 includes a locking handle for safety and security
- Investment casting body and cap
- PTFE seal kits replaces PTFE, RPTFE and FPA, low deformation under load, low permeation
- Long cycle life
- Blow-out-proof stem
- Anti-static device
- Adjustable stem packing
- Handle with locking device
- Full ISO-5211 pad for direct-mount automation
- API 598 test standard
- 29 in hg vacuum service
- ASTM A351 grade CF8M cap, ball, ASTM A193 grade B8 bolt, ASTM A276 grade 316 stem, ASTM A194 grade 8 bolt nut
- Molecularly enhanced PTFE gasket, thrust washer and packing
- 304 stainless steel ring, handle nut, locking washer, stopper, locking plate, handle and bolt washer
- 410 stainless steel belleveille washer
- Vinyl grip handle sleeve
- With VT52DA actuator
- From the old 2000 Series
